Sym JET 4 R 50 Series - Front Center Cover; Luggage Box; Floor Panel

11. BODY COVER
11-8

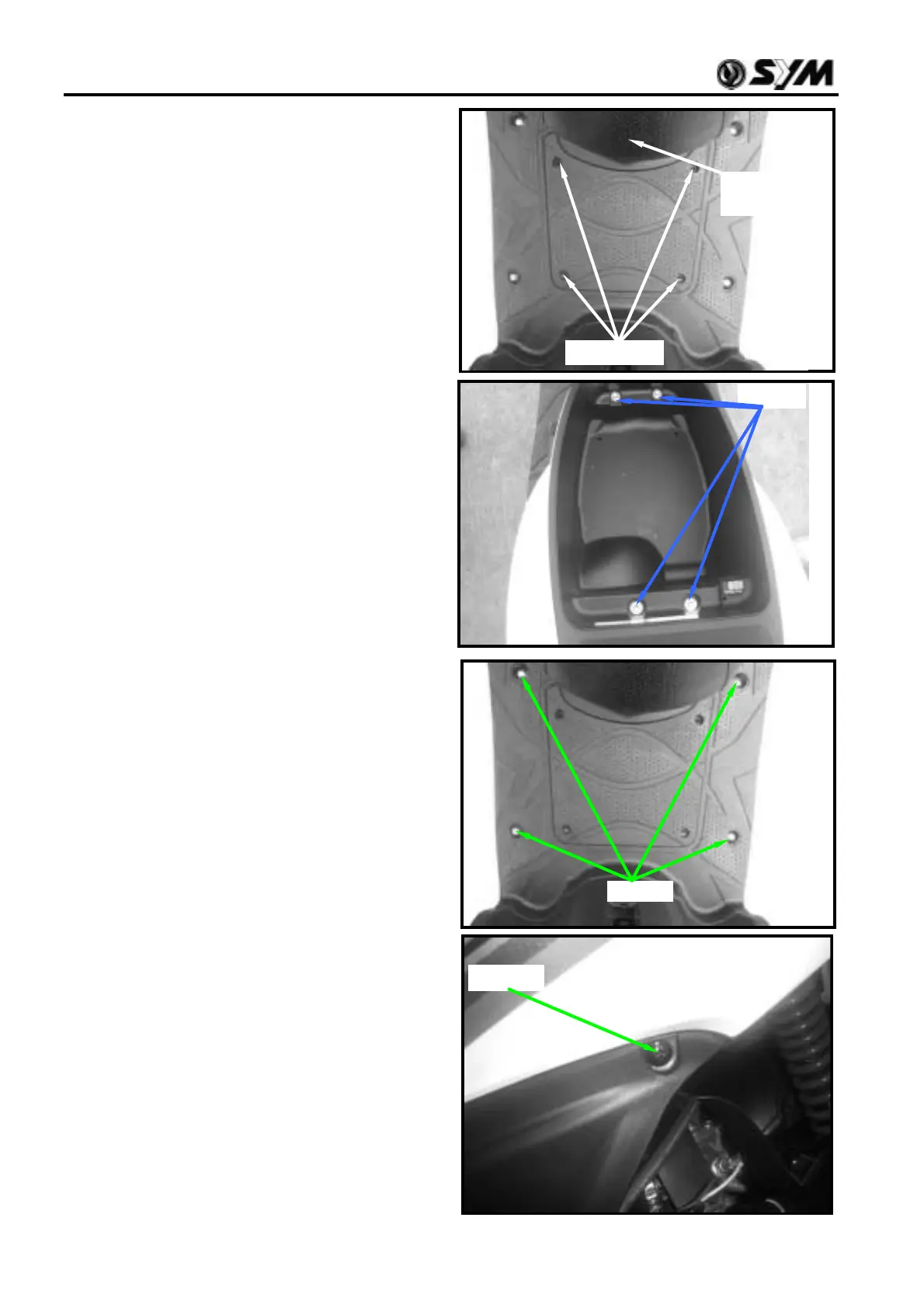

FRONT CENTER COVER
Removal
Remove the 4 screws bolt.
Remove the front center cover.
Installation
Install the front center cover according to the
reverse procedure of removal.
LUGGAGE BOX
Removal
Open the seat.
Remove the 4 bolts from the luggage box.
Remove the luggage box and the double
seat.
Installation
Install the luggage box according to the
reverse procedure of removal.
FLOOR PANEL
Removal
Remove the 4 bolts from the luggage box.
Remove the luggage box and the double
seat.
Remove the front center cover.
Remove the 2 bolts between the floor panel
and the body cover .
4 bolts
screws×4
Front center
cover
4 bolts
Bolts1×2
