8. "V" Type Belt Drive System/Kick-Starter
8-6

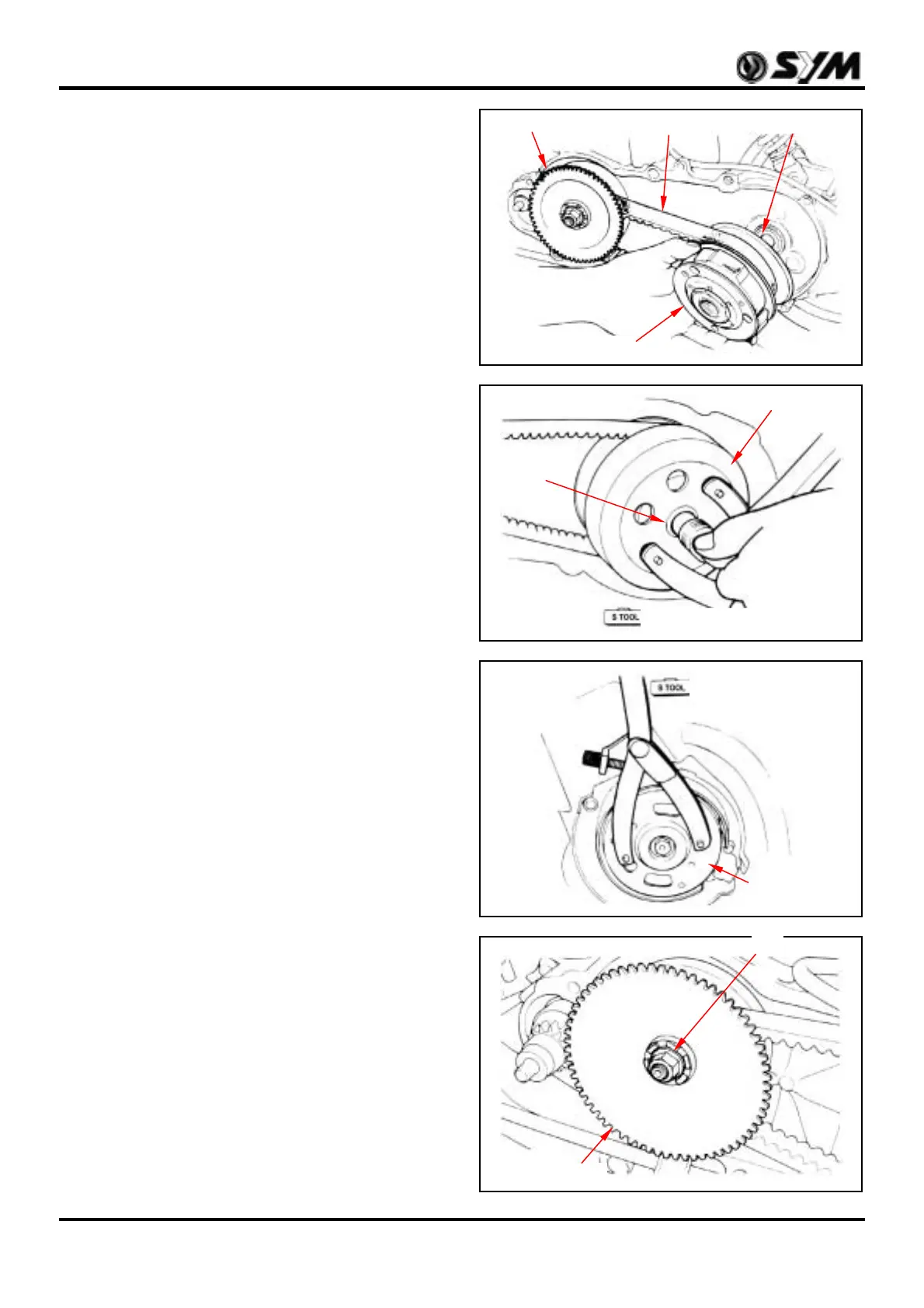

Install the driven pulley that has installed the belt
onto drive shaft.
Hold the clutch outer, and then tighten nut to
specified torque value.
Torque value: 5.5~6.5kgf-m
Movable Drive Face
Removal
Remove fan cover and fan.
Remove left crankcase cover.
Hold generator flywheel with universal holder, and
then remove drive face nut.
Remove drive face.
Drive belt
Clutch outer
Drive shaft
Flywheel
Nut
Clutch/driven pulley
Drive face
Nut
Universal holder
Drive face
