11. BODY COVER
11-10
UNDER COVER
Removal
Remove the floor panel.
Remove the left/right side cover.

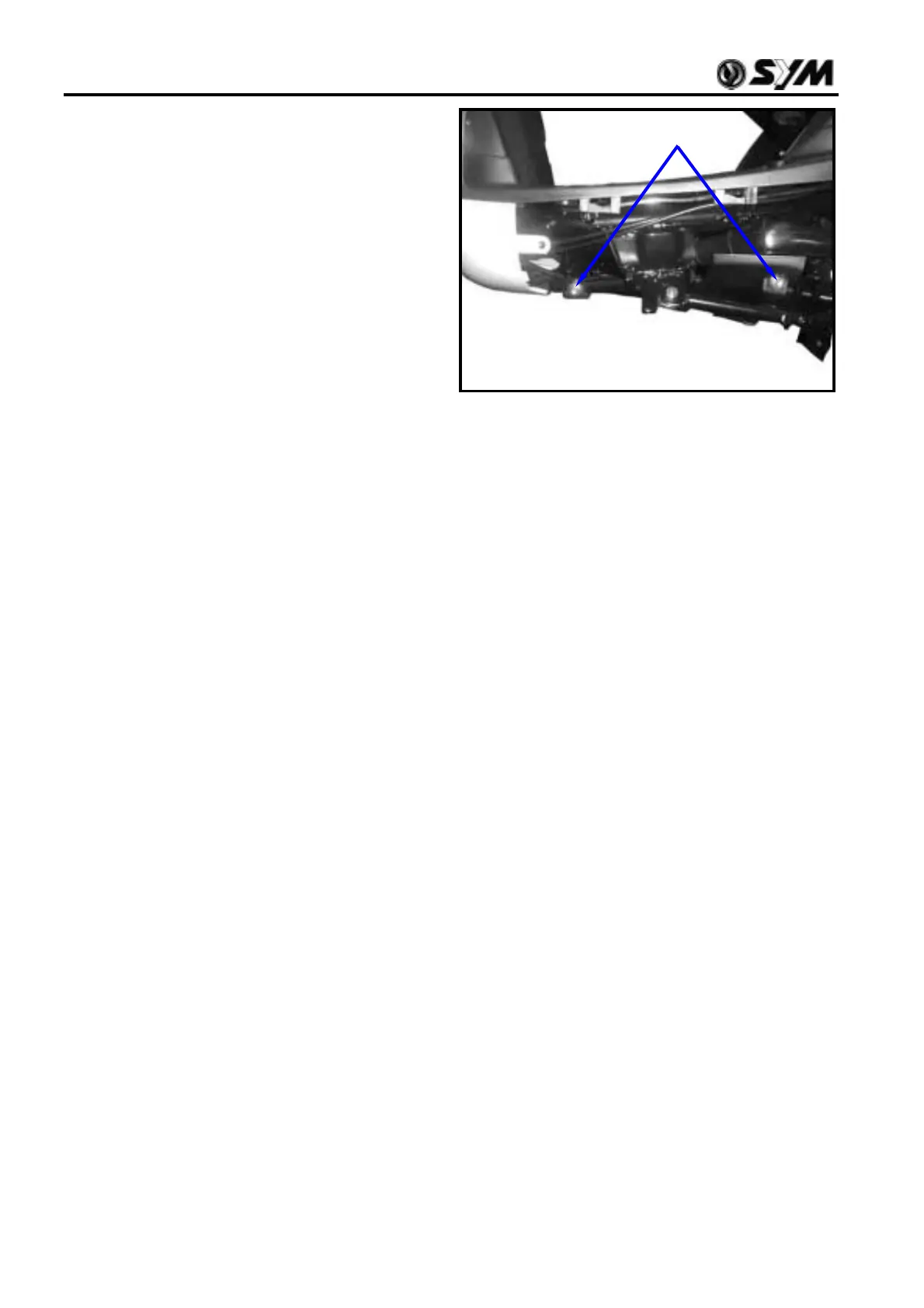

Remove the left/right side 4 mounting bolts
between the under cover and frame.
Remove the under cover.
Installation
Install the under cover according to the
reverse procedure of removal.
Bolts2×2
