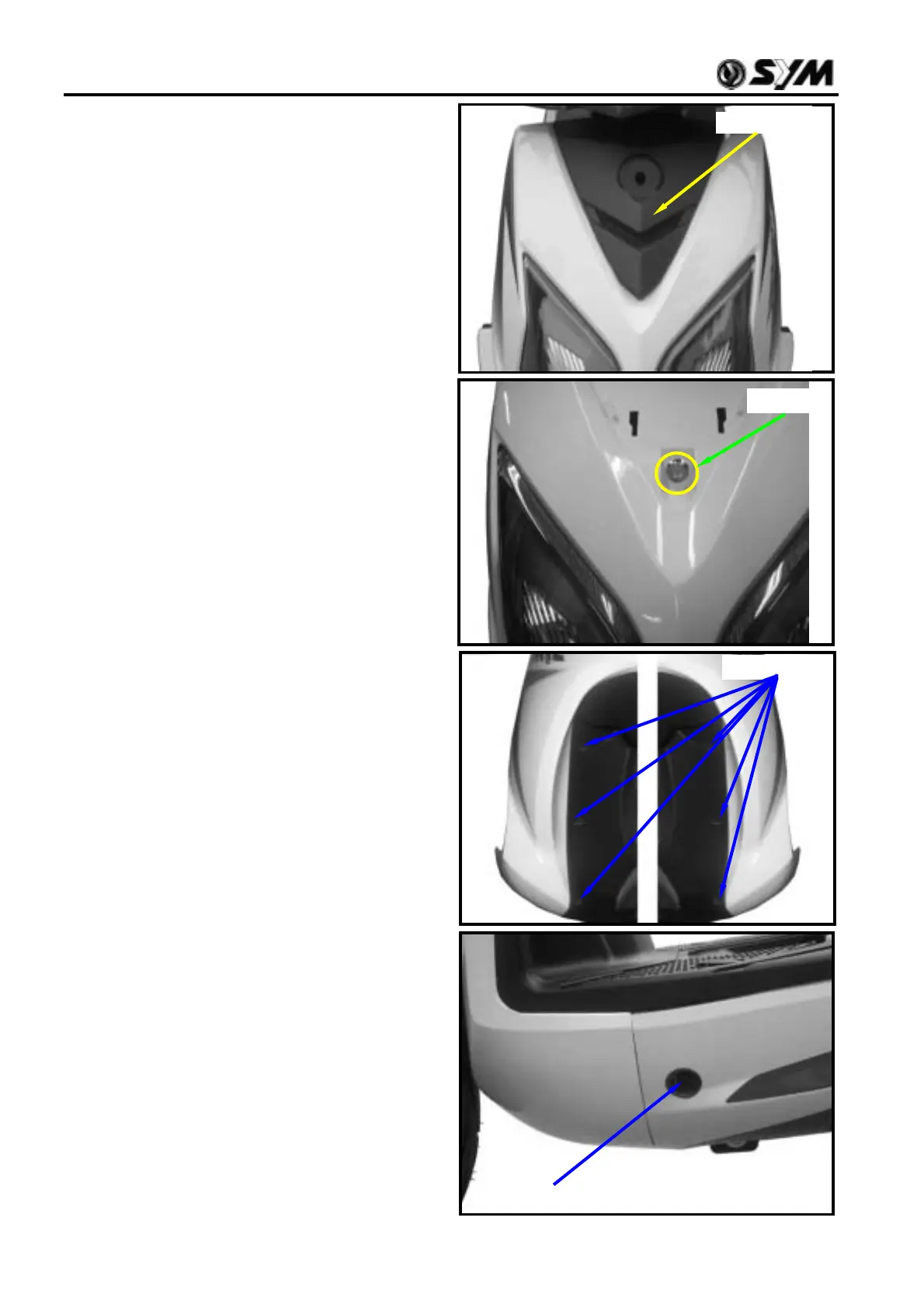

11. BODY COVER
11-4
FRONT COVER
Removal
Remove the top cover.
Remove the 1 mounting bolt of front cover
from the frame.
Remove the front under cover 6 mounting
screws between the front under cover and
the frame.
Remove the 2 mounting screws between the
front cover and the left/right side cover.
bolt×1
Top cover
Screws3×2
Screws1×2
