Sym JET 4 R 50 Series - Turn Signal Light Switch; Brake Light Switch; Horn

SYM 16. ELECTRICAL EQUIPMENT
16-27

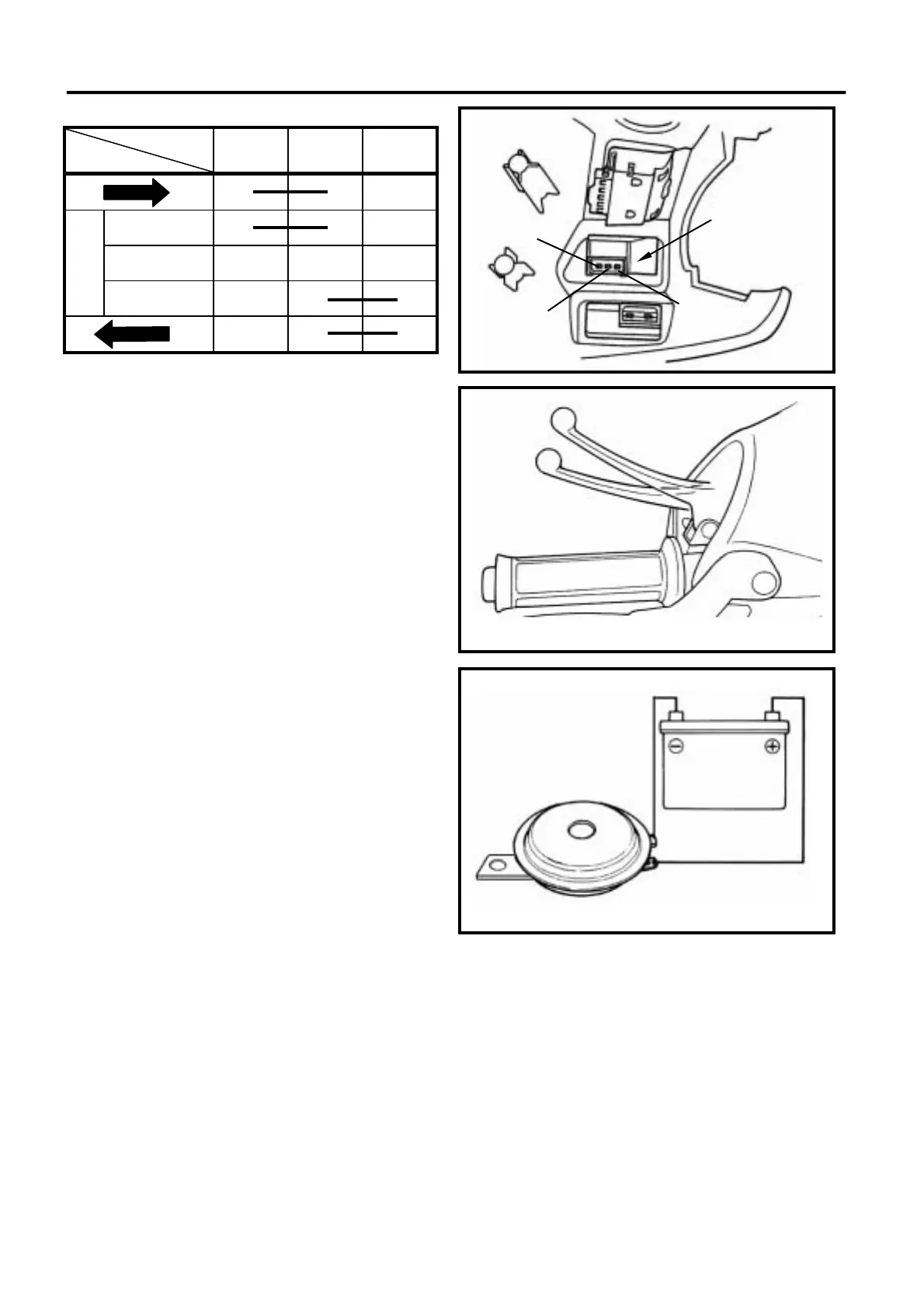

Turn signal light switch
color
Location
Sky
blue
Gray orange
● ●
FROM R
● ●
PUSH OFF
N
FROM L
● ●
● ●
Brake light switch
The circuit of black wire and the green/yellow
wire on the brake light switch should be in
continuity when operating the brake lever.
If the switch damaged, replace it with new one.
Horn
Remove the front cover.
Connect the light blue wire on the horn to the
battery positive (+) terminal, and the green wire
to the battery negative (-) terminal. Then, the
horn should sound.
Replace it if necessary.
Sky blue
gray
turn signal
light switch
orange
