Front Turn Signal Lamp Bulb Replacement
Remove the front handle cover.
Remove the wire connector of the turn signal
light.
Pull out the bulb and replace it with new one.
(12V 10W)
Installation
Install the bulb in reverse order of removal.
Bulbs Replacement of tail light/brake
light/rear turn signal light.
Remove the 2 screws of the taillight &left/right
turn light lens.
Remove the tail light assembly.
Replace the bulbs of the tail light, brake light
(12V 5W/21W)
Replace the bulbs of the turn signal light
(12V/10W).
Installation
Install the bulb in reverse order of removal.

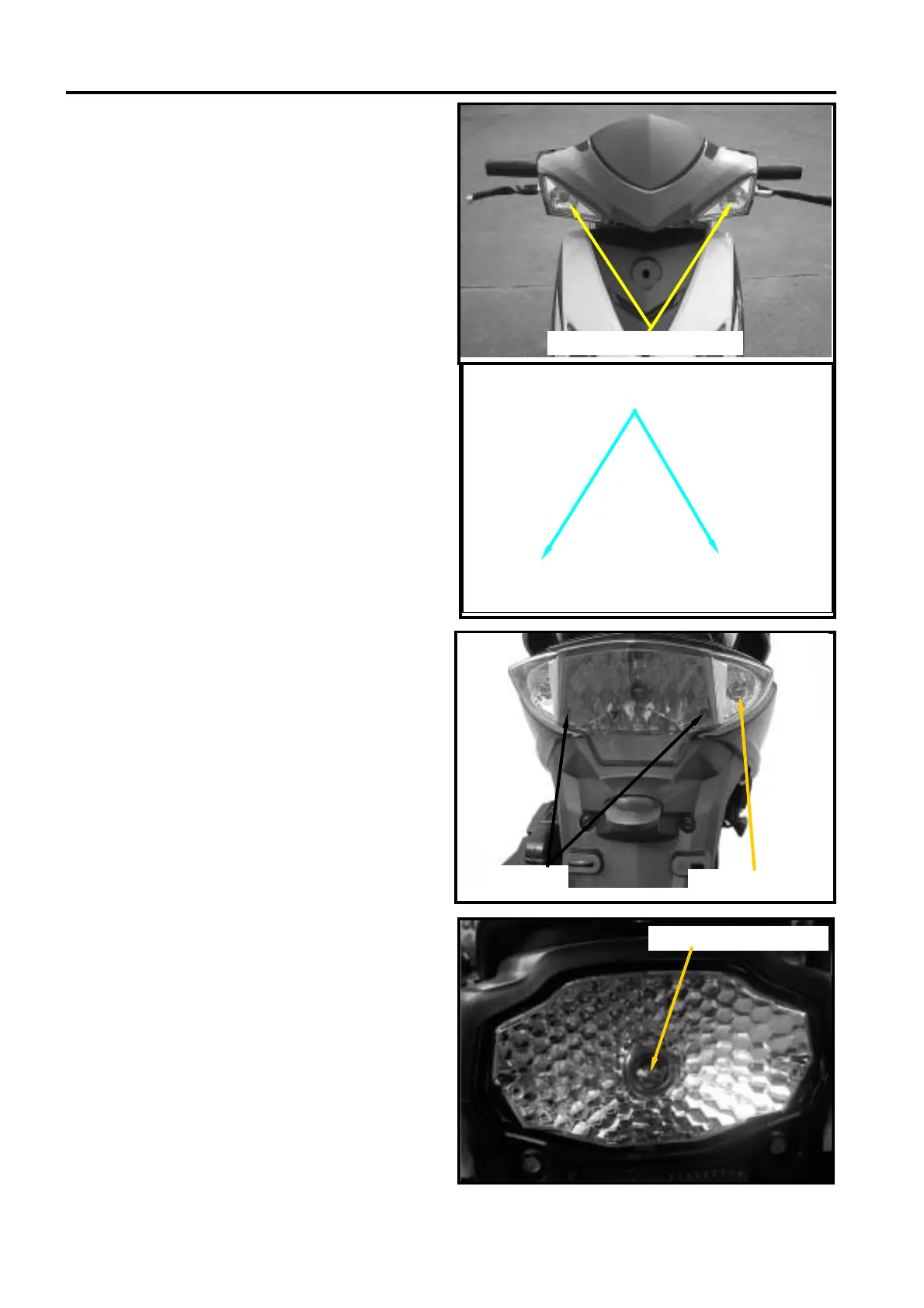

the wire connector of
the turn signal light
tail light & brake light
Front turn signal light
turn signal light
Screw x 2
