13. Steering / Front Wheel / Front Cushion
13-3
Steering Handle
Removal
Remove handle cover and front cover (refer to
chapter 11).

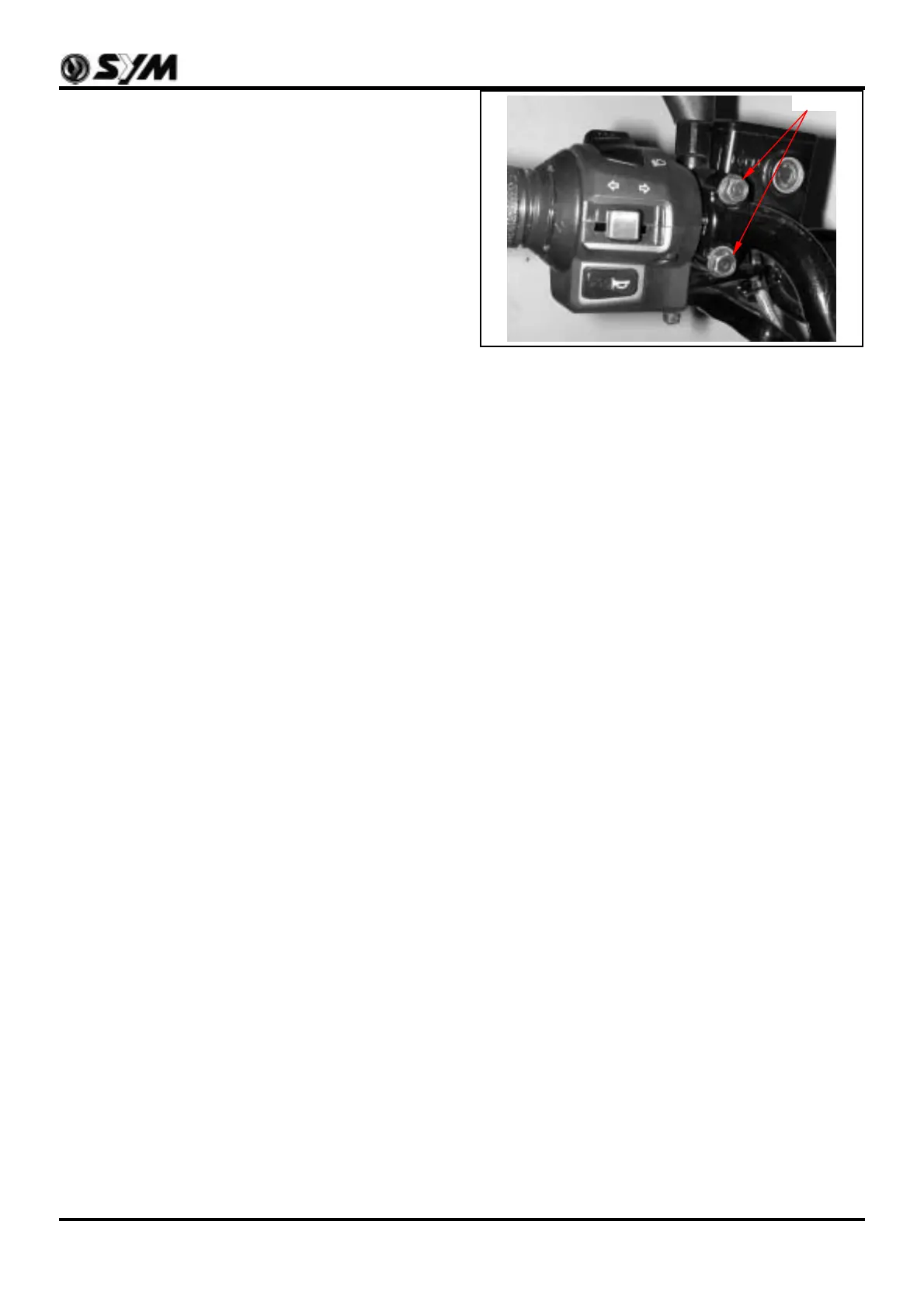

Remove front brake master cylinder (disc brake)
after 2 bolts removed.
2 bolts
