3. Lubrication System
3-5
Oil Tank

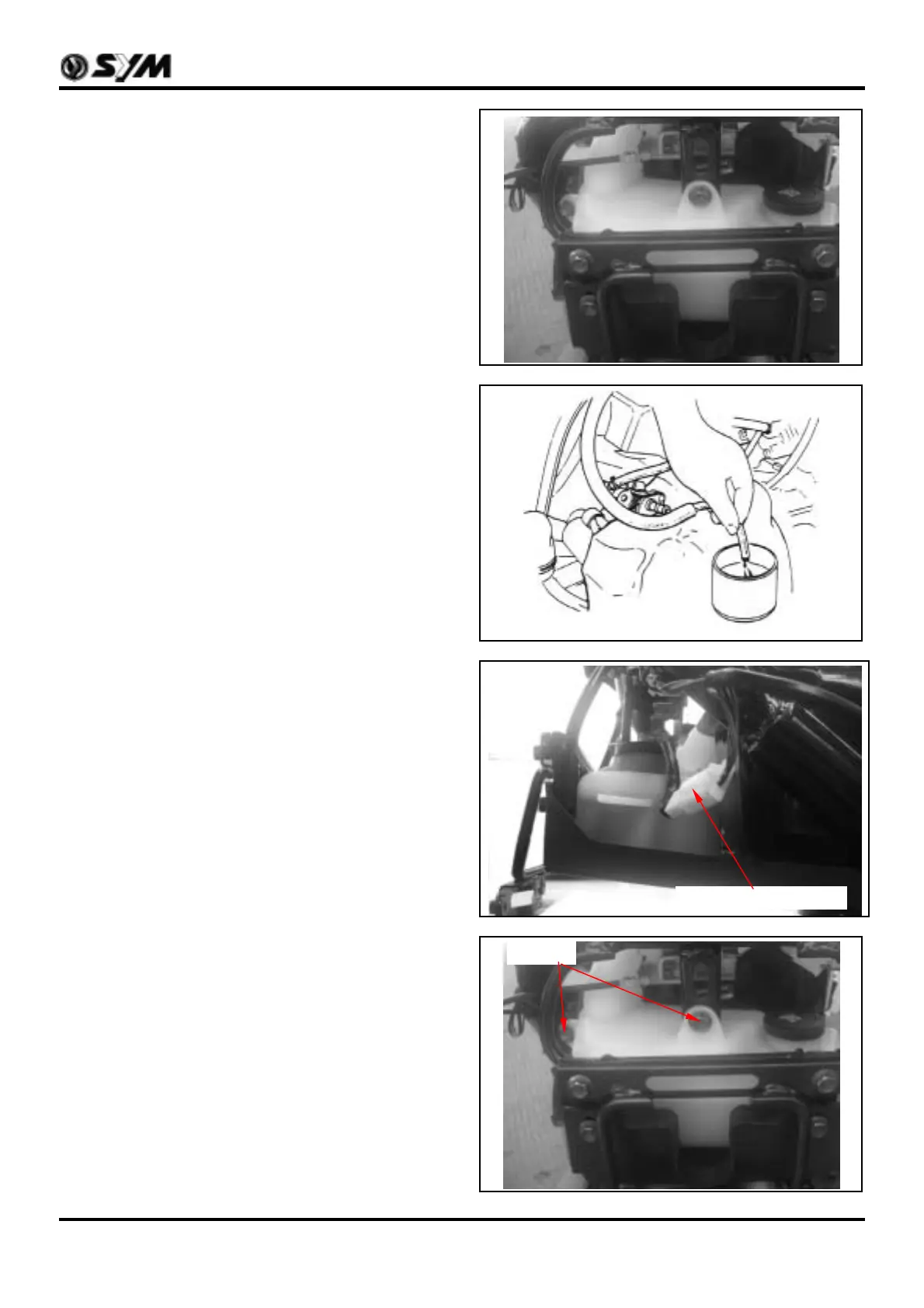

Removal
Remove the luggage box and seat.
Remove the right / left side covers, right / left rear
side covers, center cover, rear carrier, body
covers, rear fender and rear inner fender. (Refer to
chapter 11)
Remove the oil input tube from oil pump, and then
drain oil to a clean container.
Remove the oil level switch wire coupler of the oil
indicator.
Remove the mounting bolt on the oil tank upper
and left side two bolts, and then remove the oil
tank.
Installation
Install in the reverse order of removal.
The oil tubes air bleeding after installation.
