13. Steering / Front Wheel / Front Cushion
13-8
Front Cushion

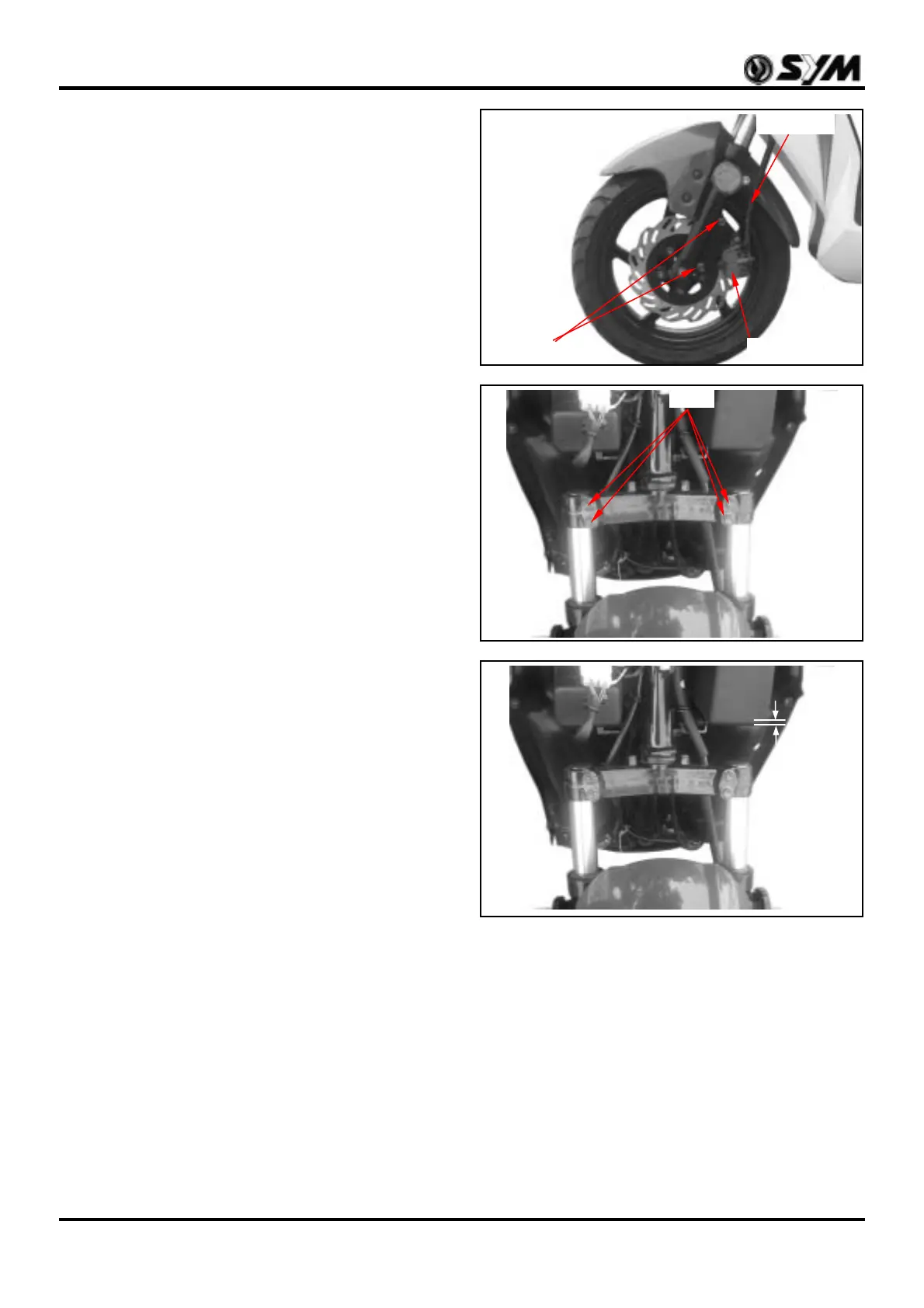

Removal
Remove front cover, front fender and front wheel.
Remove the caliper mounting bolt and the caliper.
Take out the hose from hose clamp.
Remove the front cushion upper bolts and the
front cushion.
Installation
Align the cover flange with upper level of the
cushion clamp, and then tighten bolts.
Torque value: 2.4~3.0kgf-m
Install the removed components in reverse order
of removal procedures.
Hose clamp
Brake caliper
