16. ELECTRICAL EQUIPMENT SYM
16-28

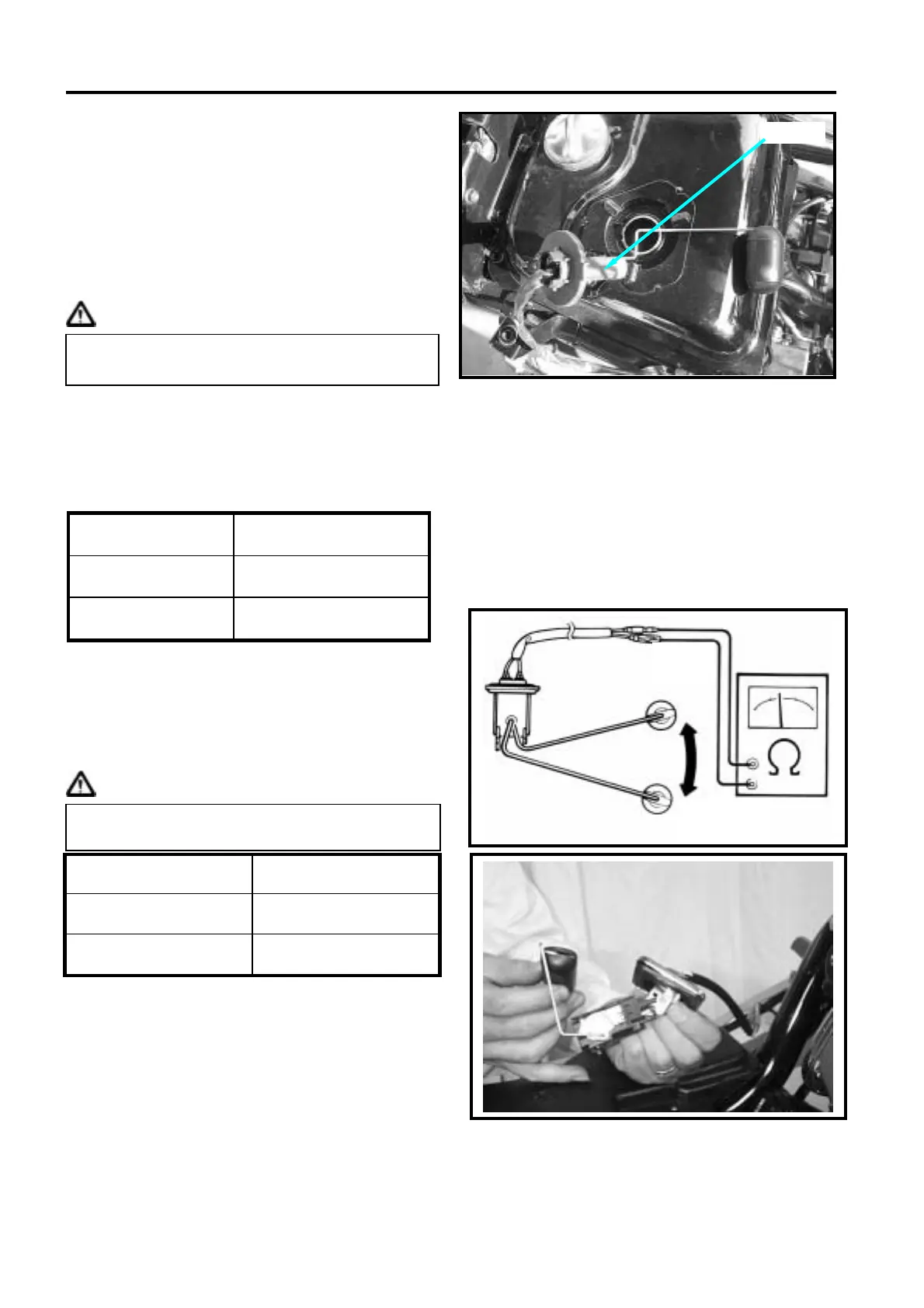

FUEL UNIT
Open the seat.
Remove the luggage box(bolts x 4) .
Remove the R.R. carrier(bolts x 3) .
Remove the body cover.
Disconnect the fuel unit wire connector.
Caution
The resistance values are listed below when
the float arm in “F” and “E” positions.
Float arm position Resistance value
E(empty) 97.5~107.5Ω
F(full)
4~10Ω
DOWN(empty)Connect the fuel unit to the main
harness.
Turn the main switch “ON” position.
Move the float arm in “UP” & “DOWN”, and then
check if the fuel unit indication needle is in
correct position.
Caution
Float arm position
Indicator needle
UP(full) E(empty)
DOWN(empty) F(full)
Installation
Install the fuel unit in reverse order of removal.
Do not damage or bend the float arm as
removing.
Turn on the turn signal light to make sure
battery is in good condition before this test.
UP
(full)
DOWN
(empty)
Fuel unit
