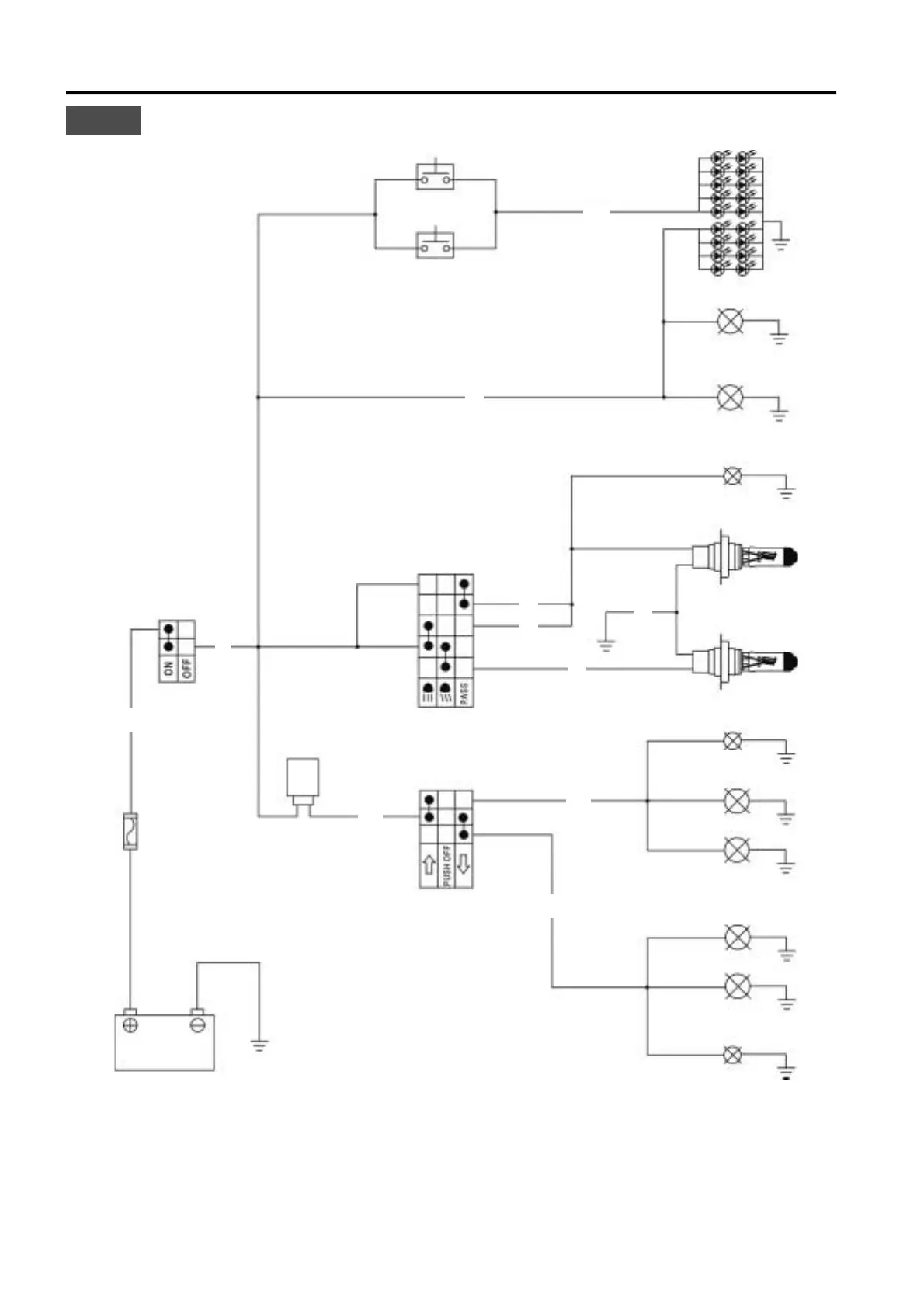

16. ELECTRICAL EQUIPMENT SYM
16-20
Lights
Stop switch
Tail & stop light
Position light
Meter illuming light
Hi beam indicate light
Headlight (Hi-beam)
Headlight (Lo-beam)
Headlight beam switch
Winker switch
Winker relay
Main switch
Fuse 10A
Battery
Right winker indicate light
Left winker indicate light
Right winker light
Left winker light
R
B
GR
SB
O
W
L
L
B
GY
G
