6. Engine Removal
6-9

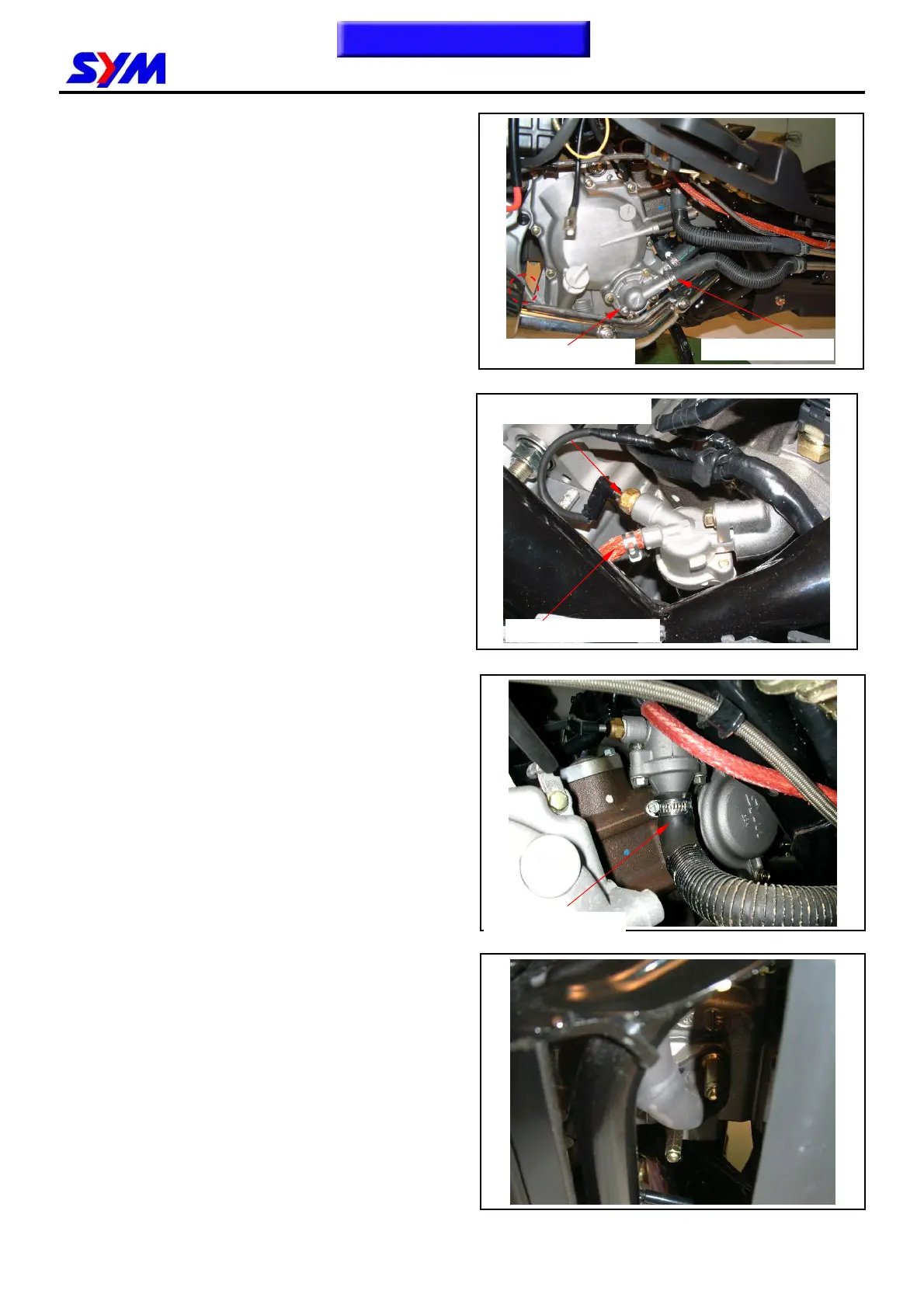

Drain out the coolant.
Remove the coolant inlet tube.
Remove the thermo unit and coolant bypass tube
from the thermostat.
Remove the coolant outlet tube from the thermostat.
Remove the exhaust pipe front locknuts.
Coolant inlet tube
Coolant drain bolt
Coolant bypass tube
Thermo unit coupler
Coolant outlet tube
