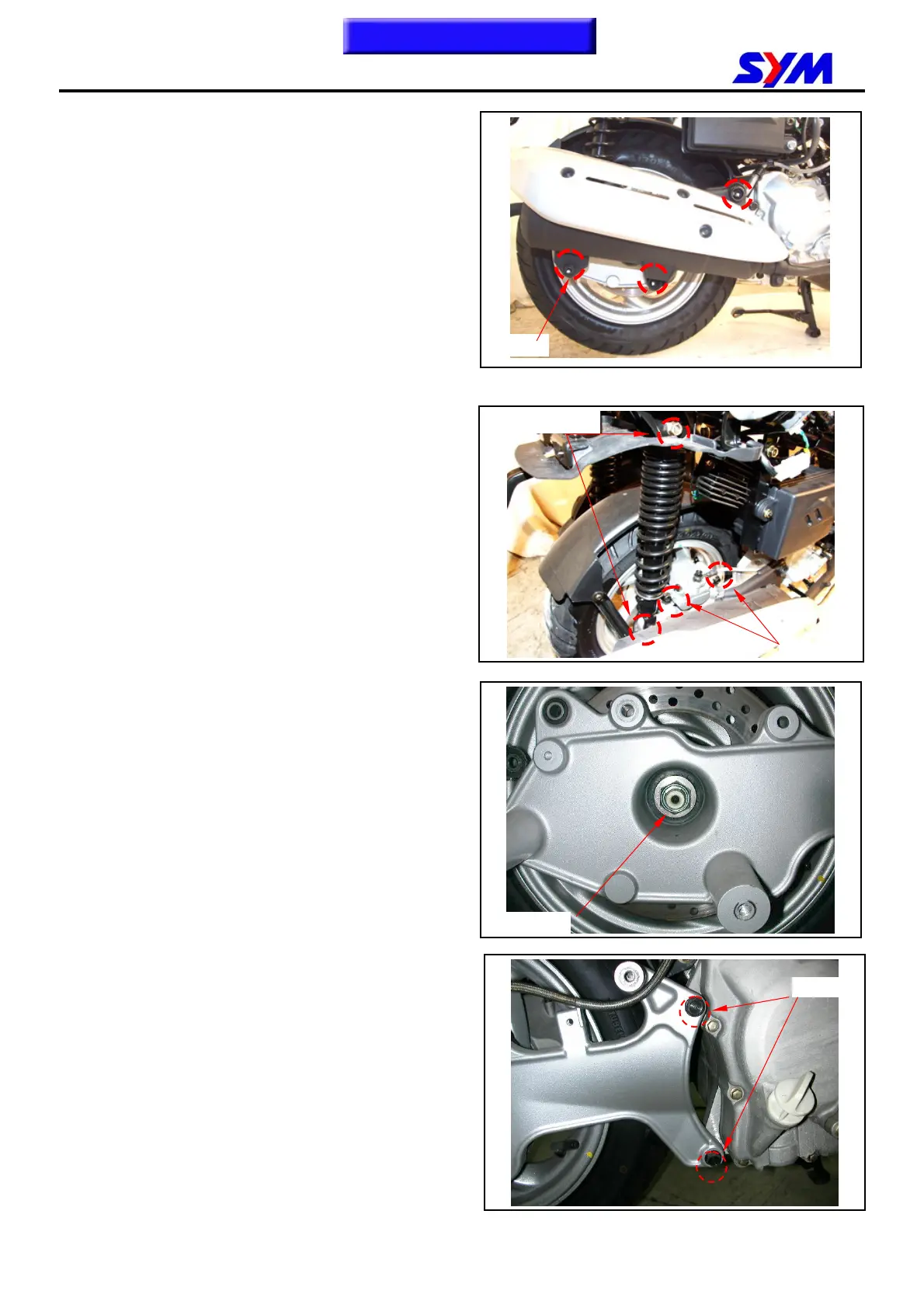

6. Engine Removal
6-10
Remove the exhaust pipe rear bolts.
Remove the rear brake caliper (2 bolts).
Remove the right rear cushion lower bolt.
Remove the rear inner fender bolt.
Remove the rear wheel locknut.
Remove the rear fork bolts.
3 bolts
2 bolts
Locknut
Cushion bolts
2 bolts
