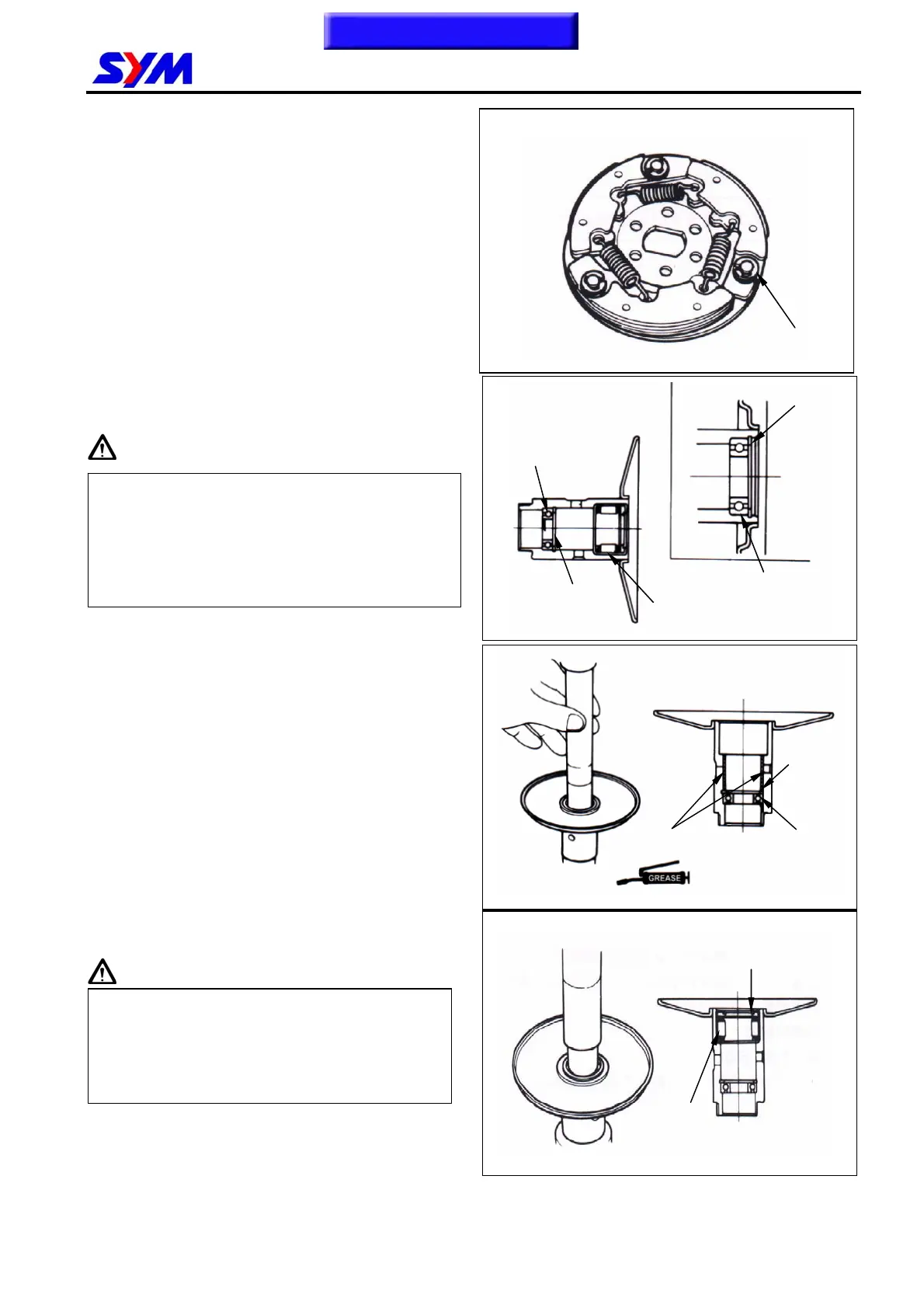

9. V-Belt Drive System
9-13
Install snap ring and mounting plate onto setting
pin.
Driven pulley bearing replacement
Remove inner bearing.
Caution
Remove snap ring and then push bearing
forward to other side of inner bearing.
Place new bearing onto proper position and its
sealing end should be forwarded to outside.
Apply with specified oil.
Install new inner bearing.
Caution
Install snap ring into the groove of driving face.
Align oil seal lip with bearing, and then install
the new oil seal (if necessary).
z Its sealing end should be forwarded to
outside as bearing installation.
z Install needle bearing with hydraulic
presser. Install ball bearing by means
of hydraulic presser.
z If the inner bearing equipped with oil seal
on side in the driven pulley, then remove
the oil seal firstly.
z If the pulley equipped with ball bearing, it
has to remove snap ring and then the
bearing.
Snap ring
Inner bearing
Sealing end
Clipper
Inner ball
bearing
Inner needle
bearing
Outer bearing
Snap ring
Snap ring
Outer bearing
Sealing end
Specified oil
