9. V-Belt Drive System
9-14

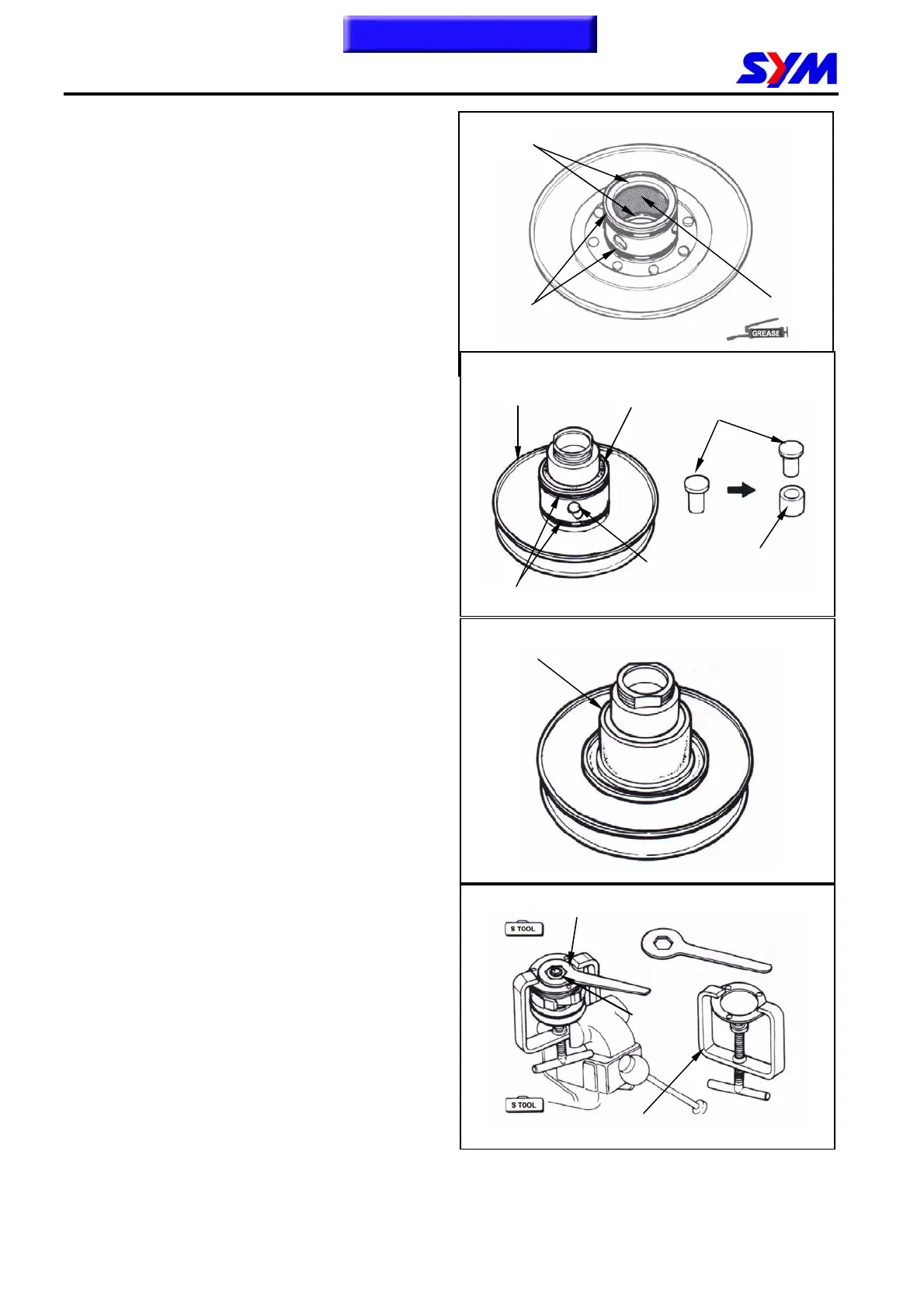

Clutch Outer / Driven Pulley Installation
Install new oil seal and O-ring onto movable
driven face.
Apply with specified grease to lubricate the inside
of movable driven face..
Install the movable driven face onto driven face.
Install the guide pin and guide pin roller.
Install the collar.
Install driving belt, spring and clutch weight
COMP. into clutch spring compressor, and press
down the assembly by turning manual lever until
mounting nut that can be installed.
Hold the compressor by bench vise and tighten
the mounting nut to specified torque with clutch
nut wrench.
Remove the clutch spring compressor.
Torque value: 5.0~6.0 kg-m
Install clutch outer/driven pulley and driving belt
onto driving shaft.
Oil seal
O-ring
Specified grease
Or
Guide pin
O-ring
Guide pin
roller
Oil seal
Movable driven
face
Guide pin
Collar
Mounting
nut
Clutch nut wrench
Clutch spring compressor
