Sym X'PRO RV125 User Manual

12. Crankshaft / Crankcase
12-7

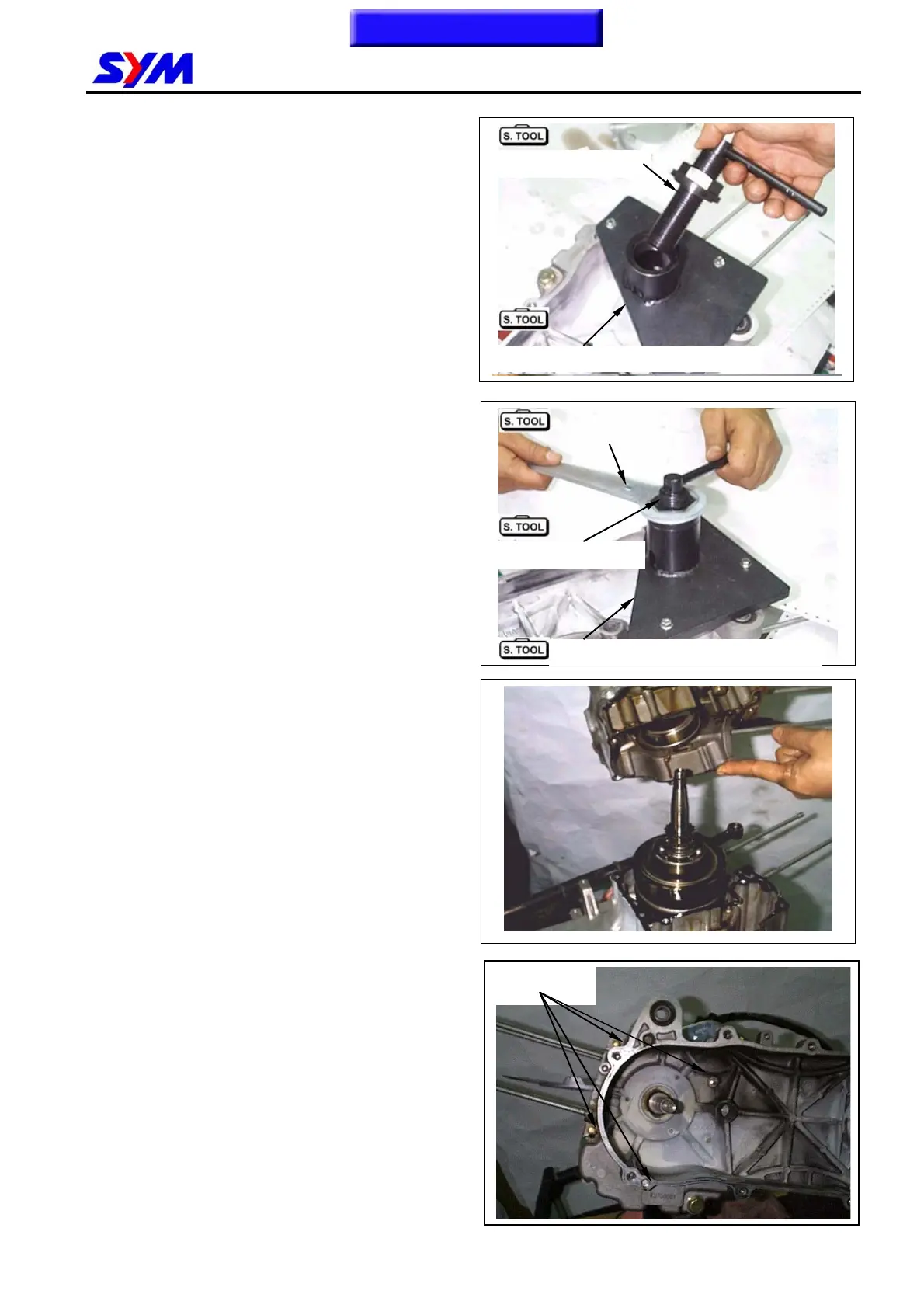

Install new dowel pin and new gasket.
Install the right crankcase onto the left crankcase.
Tighten seven bolts on the crankcase.
Torque value: 0.8~1.2 kgf-m
Clutch nut
wrench
R/L. crank case disas. / install tool
Crank shaft puller
R/L. crank case disas. / install tool
Crank shaft puller
Bolt×7
To this chapter contents
