13. Cooling System
13-7

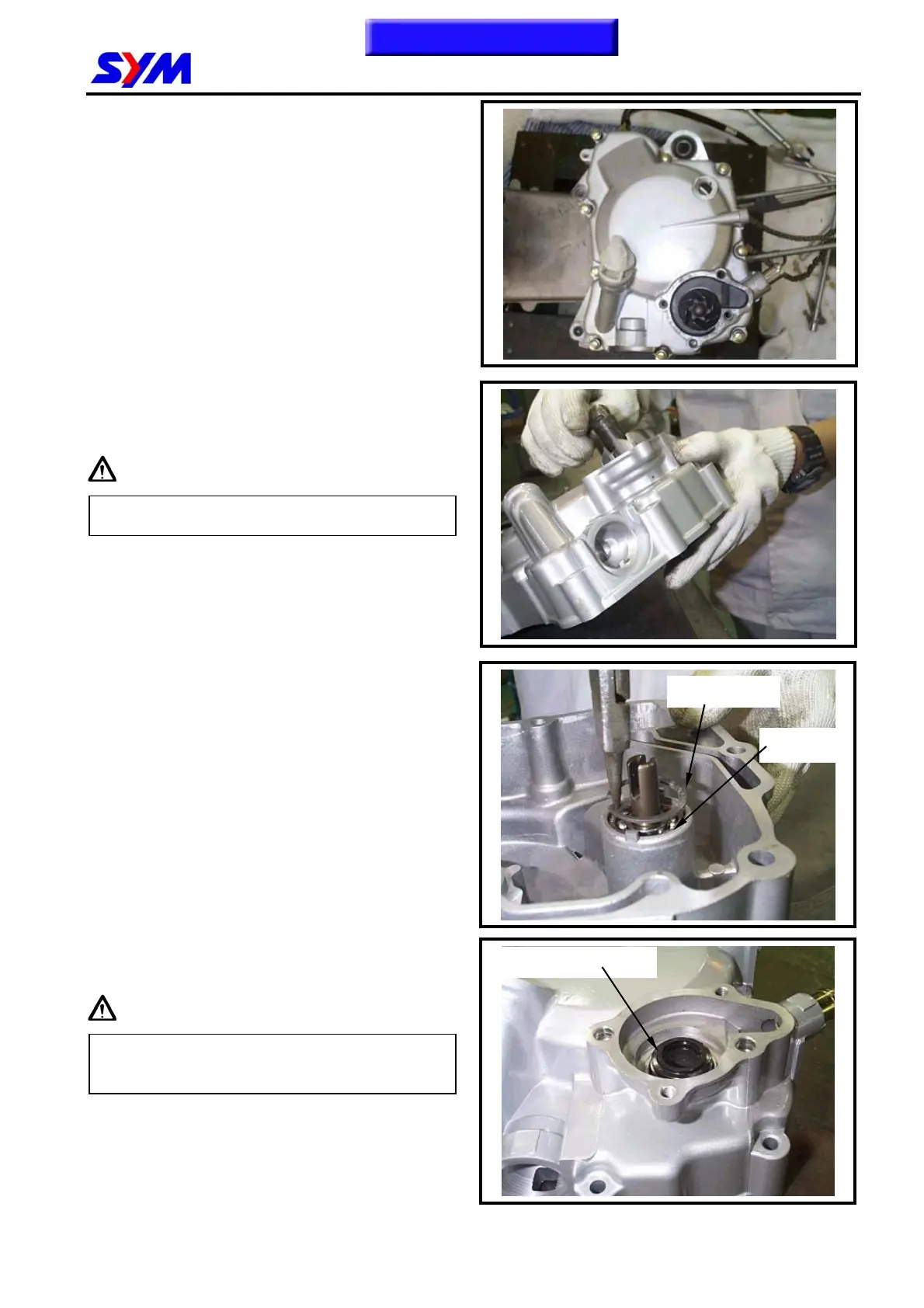

Removal of water pump
Remove the water hose.
Loosen three bolts and remove the pump cover.
Loosen 9 bolts and remove the right cover.
Take off the gasket and dowel pin.
Turn pump rotor clockwise and remove.
Caution
The rotor is provided with left turn thread.
Removal of Water Pump Shaft
Remove the circlip from the right crankcase
cover.
Remove the water pump shaft and the inner
bearing.
Remove the outside bearing by inner bearing
puller.
Rotate the inner ring of bearing, the bearing
shall move smoothly and quietly.
If the bearing does not rotate smoothly or
produces a noise, replace it with new one.
Check any wear and damage of the mechanical
seal and inside seal .
Caution
The mechanical seal and inside seal must be
replaced as a unit.
Circlip
bearing
Mechanical seal
