TP9100 Service Manual Transmitter Fault Finding 233
© Tait Electronics Limited May 2005

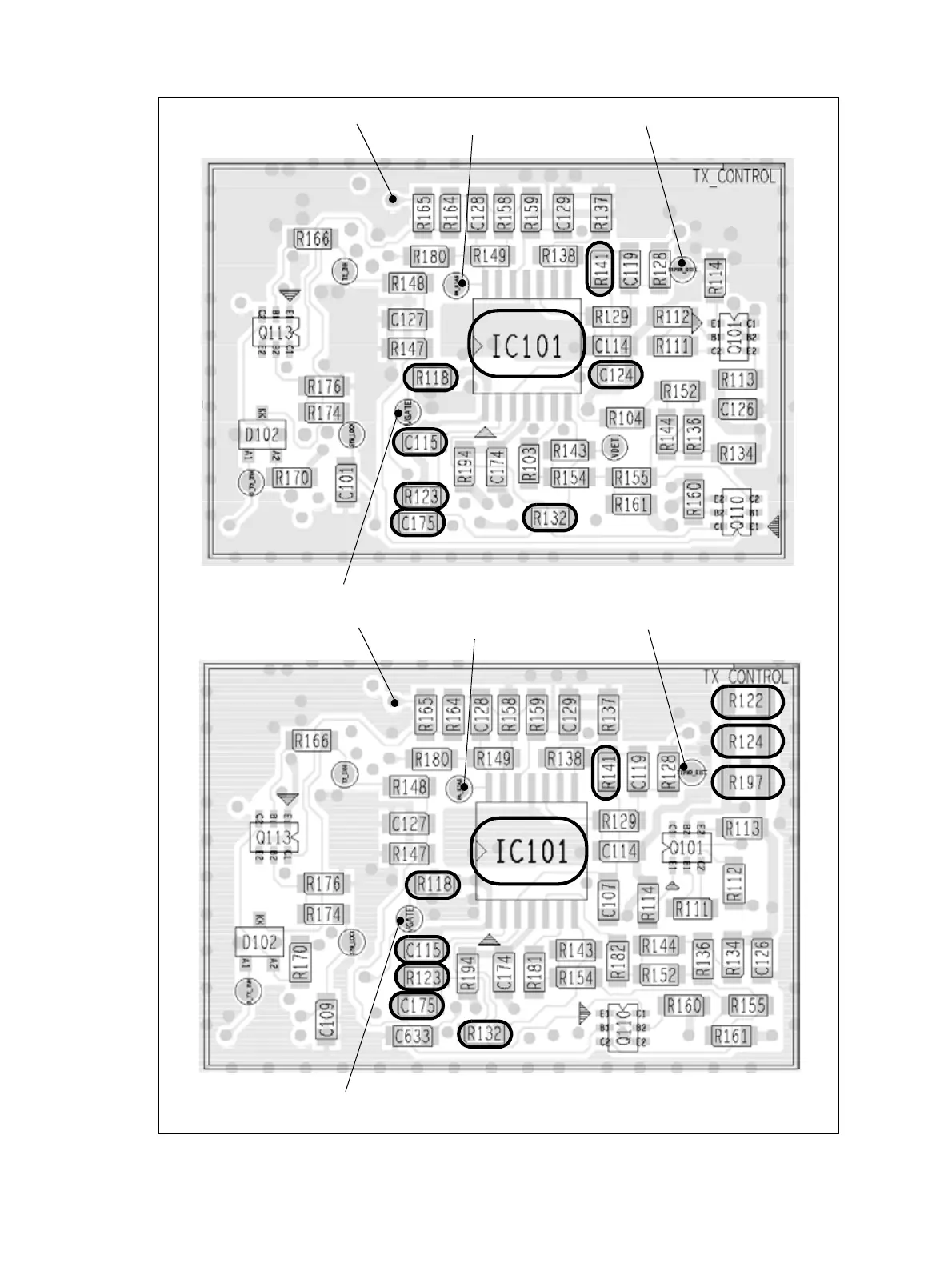

Figure 10.7 PA circuitry under the
TX CONTROL BOT can (bottom side)
TXPWR RXFE test point
VGATE test point
PA BIAS test point
(pin 14 of IC101)
via of CDC TXFIN RXAGC
TXPWR RXFE test pointPA BIAS test point
(pin 14 of IC101)
via of CDC TXFIN RXAGC
VGATE test point
B1 band
H5 band (H6 similar)
