Tait TP9100 - Disassembly and Reassembly

316 TPA-AA-202 Accessory Cable Kit TP9100 Service Manual
© Tait Electronics Limited May 2005
17.2 Disassembly and Reassembly
1. Use a Torx T6 screwdriver to remove the screw B, and remove the
accessory housing seal
C, and the accessory seal plate D.
2. Fold out the accessory connector PCB
E.
Important During reassembly, make sure that the accessory housing
seal
C is inserted correctly inside the accessory connector
housing
F.
Reassembly is carried out in reverse order of the disassembly.

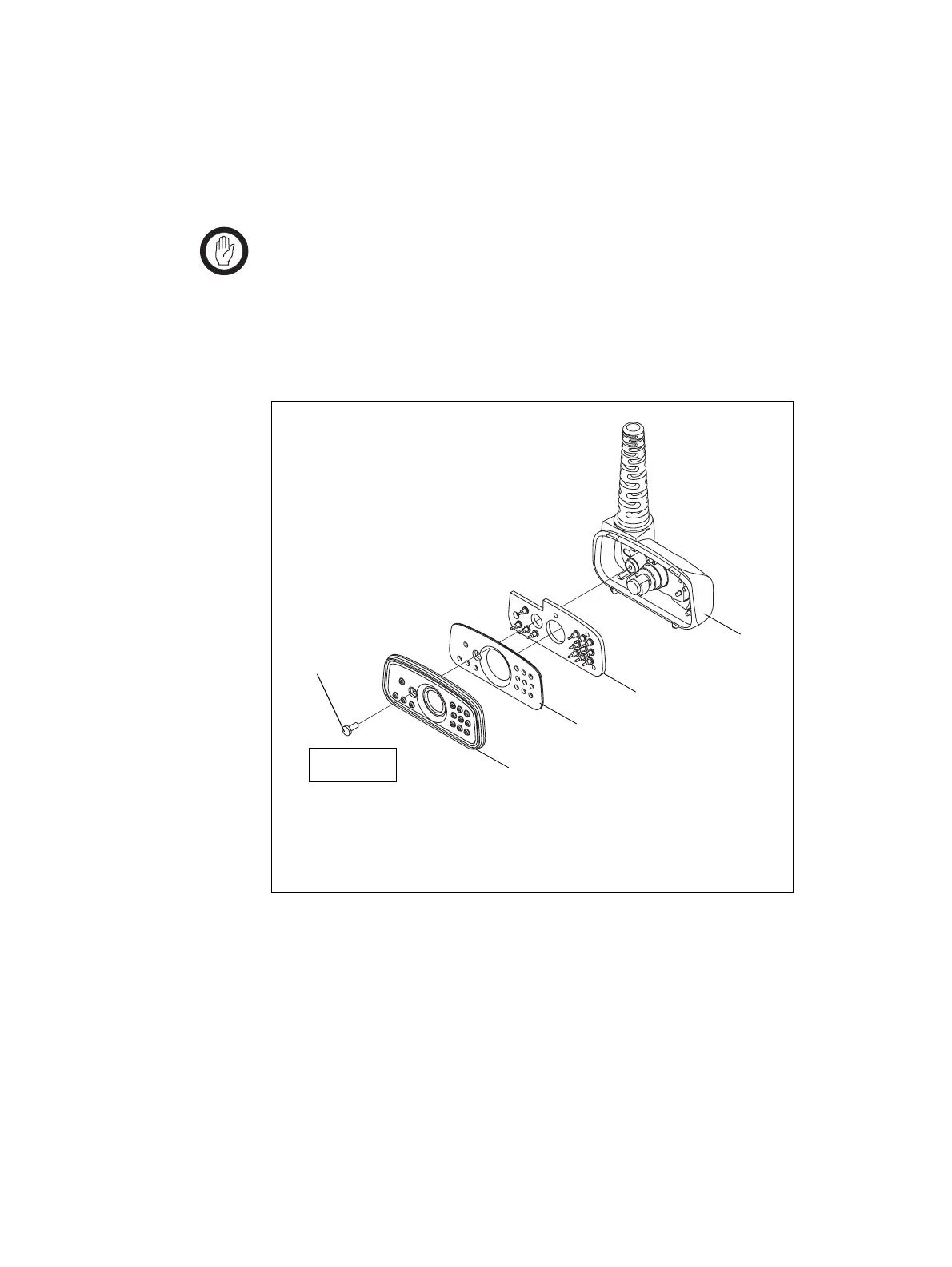

Figure 17.2 Components of the accessory cable kit
B
Tor x T 6 s crew
E
accessory connector PCB
C
accessory housing seal
F
accessory connector housing
D
accessory seal plate
Torx T6
3lb·in (0.34N·m)
C
D
E
F
B
