TP9100 Service Manual TPA-AA-202 Accessory Cable Kit 315
© Tait Electronics Limited May 2005

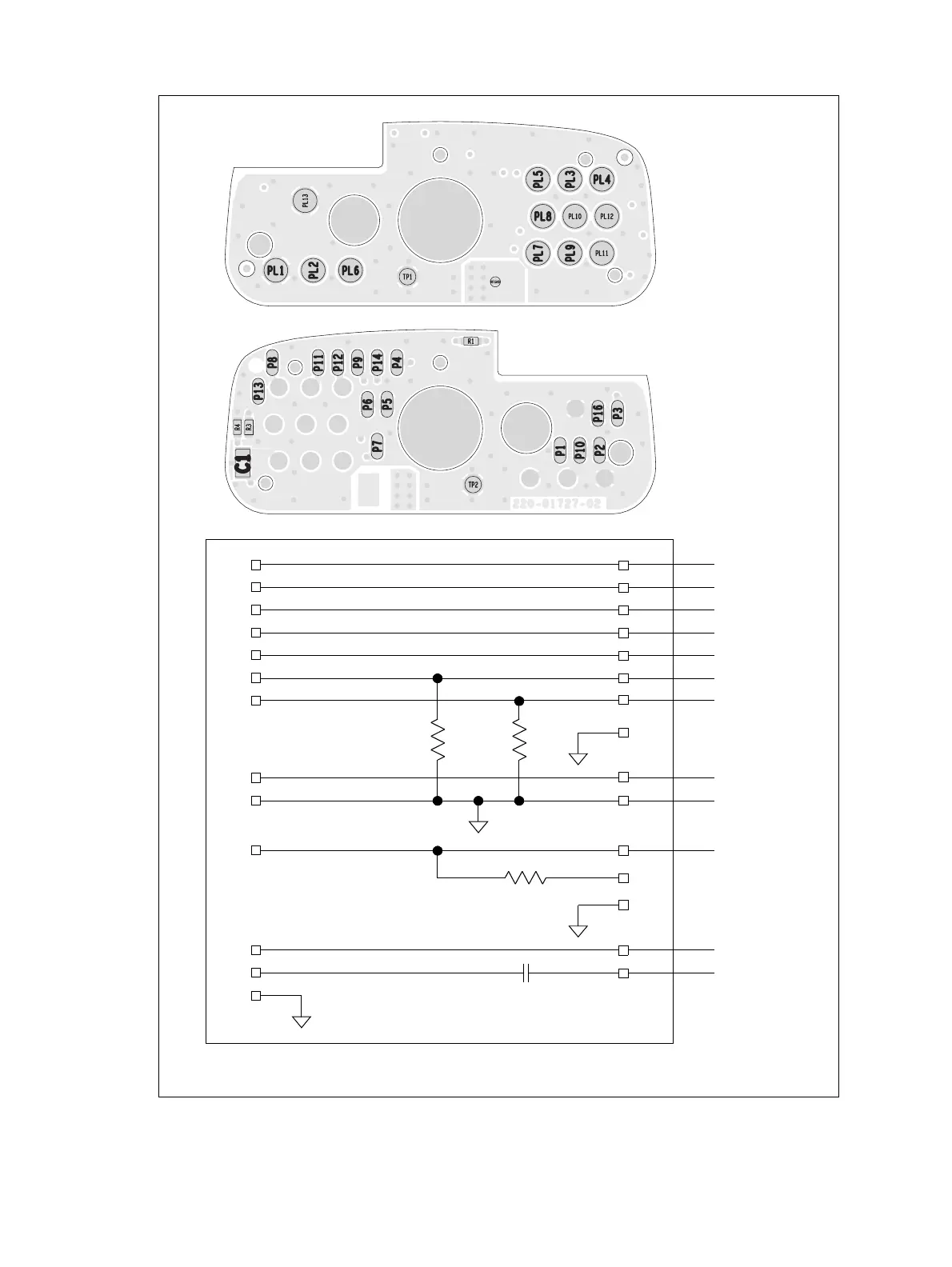

Figure 17.1 Accessory connector PCB and circuit diagram
PL4
P8
PL8
P9
PL2
PL3
PL5
PL10
PL7
P10
P11
P12
P13
P14
P16
AUD TAP OUT
AUD TAP IN
ACC PWR
ACC RXD
ACC TXD
ACC GPIO1
ACC GPIO2
R4
0Ω
ACC MIC
GND
PL6
PL1
P1
P2
PL12
ACC PTT
P3
R1
12kΩ
P4
P5
BUTTON1
PL9
P6
P7
PL11
C1
4.7µF
ACC SPKR–
ACC SPKR+
PL13
R3
0Ω
orange
gray
white
red
black
white/red stripe
green
yellow
blue
brown
white/blue stripe
violet
Accessory Connector PCB
