5.3 Disassembling the Radio
Disassemble only as much as necessary to replace the defective parts.
For reassembly instructions, refer to “Reassembling the Radio” on
page 112.
Removing the
Knobs and the
3-way Actuator
The circled numbers in this section refer to the items in Figure 5.3.
1. With your fingers, pull off the volume knob
D.
2. Inspect the volume knob seal
E and replace it, if necessary.
3. With your fingers, pull off the channel knob
B.
4. With your fingers, pull off the 3-way actuator
C.

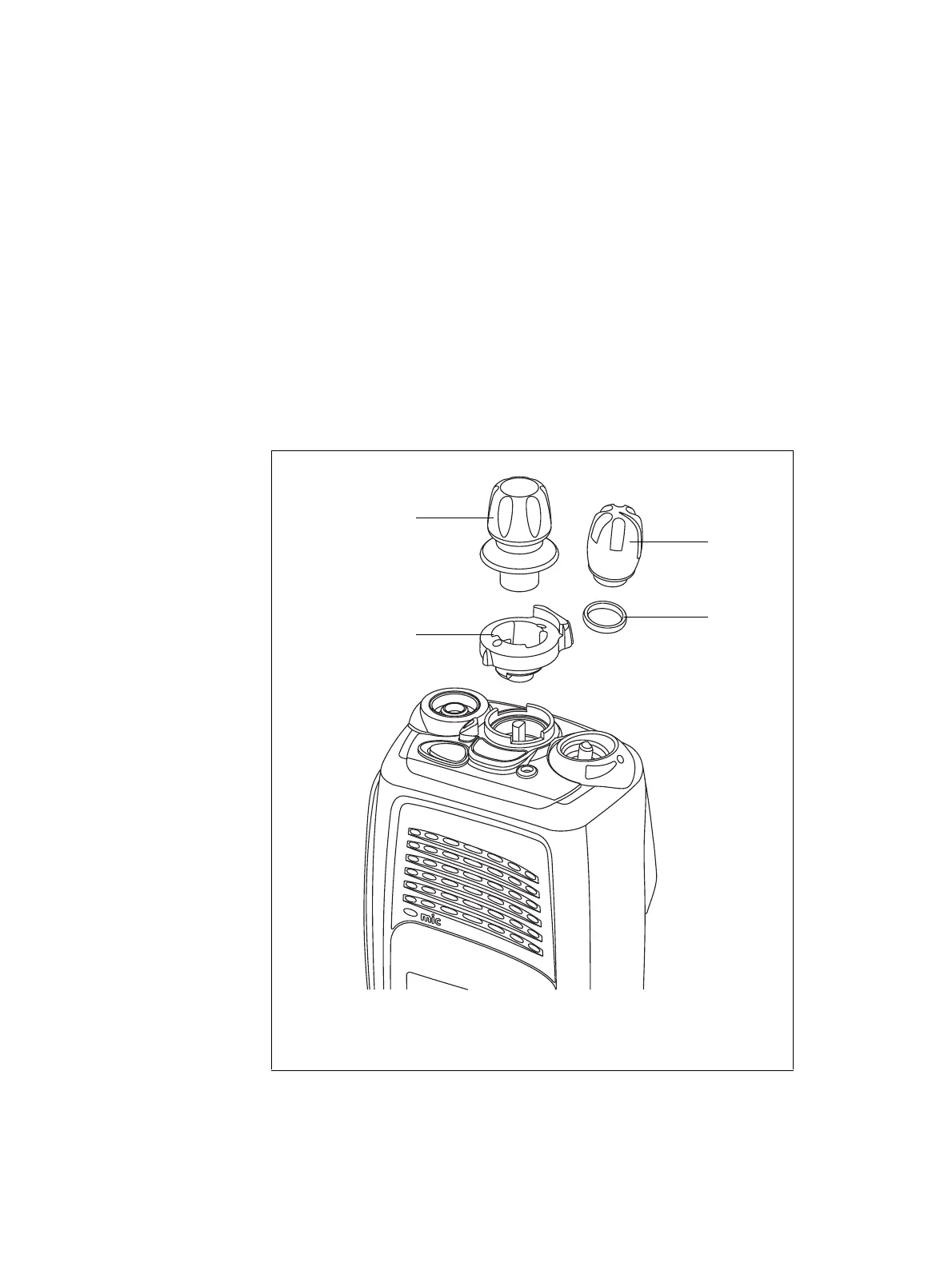

Figure 5.3 Removing the knobs and the 3-way actuator
B
channel knob
D
volume knob
C
3-way actuator
E
volume knob seal
D
E
C
B
3651z_01
