MAINTENANCE
MAINTENANCE
On-Demand Water Heater Service Handbook for 240, 340 & 540 Condensing Models • 55
5. Install the fuse box assembly to


42 (p. 50).)

it to the manifold plate.
6. Install the computer board (PCB):
6.1 Posion the PCB in place:
Small feet at the
boom must t into the
corresponding holes in the
case.
6.2
Insert and hand ghten the
screw at the top of the PCB
to secure it to the fuse box.
7. Verify that all manifold screws
have been reinstalled and hand

8. Complete the wiring:
Refer to Figure 41 (p. 49) or
Figure 42 (p. 50) as you complete
these steps.
Solenoid
(locations vary)
Connector
Numbered
Wire
Stamped
Number
In each case, these numbers
must match.
Connectors have no polarity.

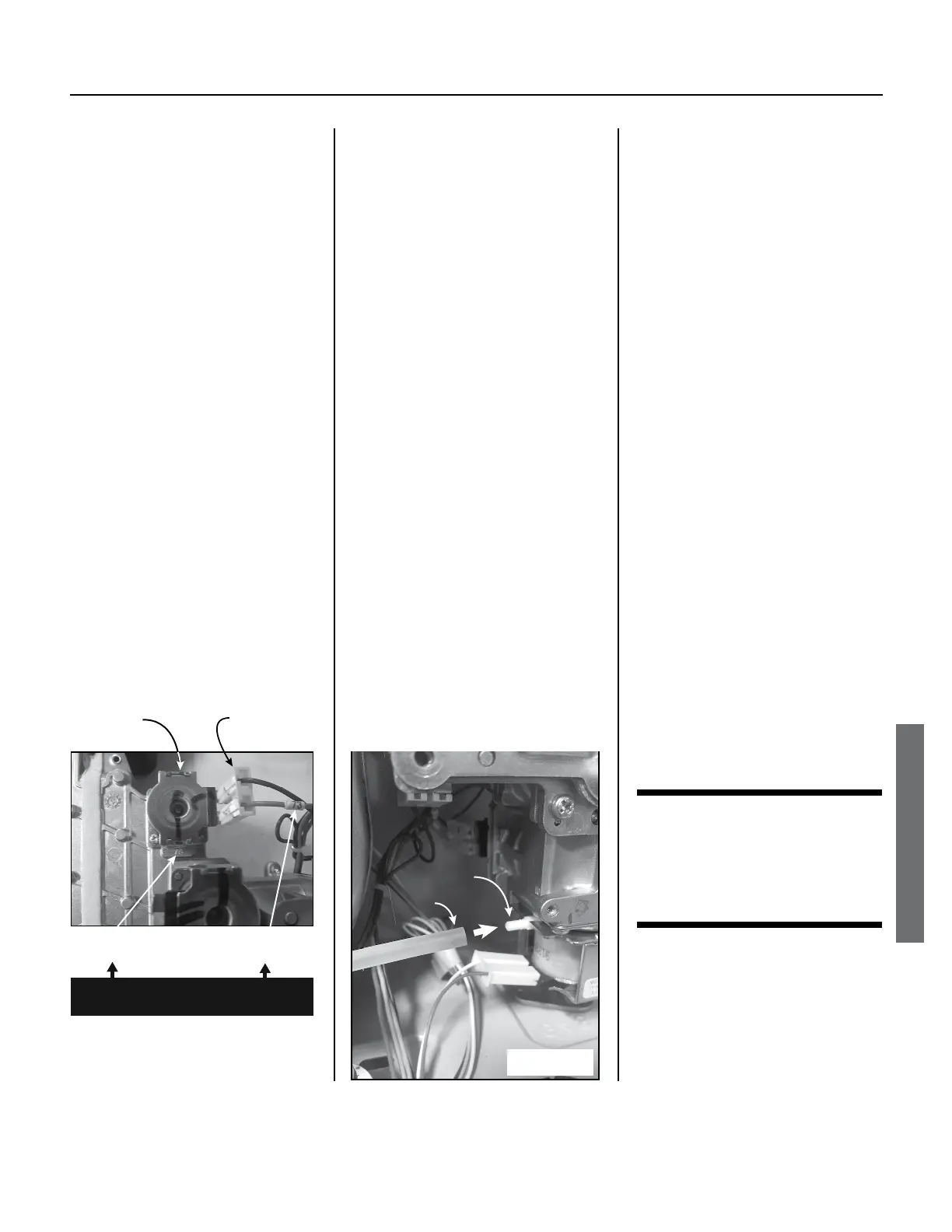

Figure 46.
Install the green ground wire
onto the manifold plate.
(See “Ground Connection” in the
figure noted above.)
Insert the connector from the
power supply cable to its port on
the fuse box. (See “Fuse Box” in
the figure noted above.)
Reinstall the flame rod/AFR
wires.
(See “Flame Rod & AFR Wire
Connections” in the figure noted
above.)
 INDOOR MODELS: Connect the
wires from the temperature
controller (item 722, page 71) to
the computer board.
The correct receptacle is shown in

240 (T-H3J) and 340 (T-H3s)
Models. Page 30.
See “Temperature Controller
540 (T-H3) Models. Page 31.
See “Temperature Controller.
10. 

Gas Valve
Port
Air Tube
Figure 47.

Be sure that you reconnected the

right-hand corner of the cabinet.
11. Slowly open the gas valve and
check for leaks. If any gas leaks


WARNING! Failure to prevent gas
leaks can result in an explosion,
severe injury, or death.
12. Turn on water to the heater and

13. Verify that there are no water or
gas leaks.
14. Outdoor models:
Reinstall the front cover.
Indoor Models:
Insert the temperature controller
into the opening of the front cover,
then reinstall the front cover.
If there are any questions, please
contact technical support.
Gas Valve/
Manifold Plate:
Removal and

Tools:
Phillips Screw Driver
Gas Manometer
NOTICE: As you complete the following
steps, reinstall the screws after removing
each component. Doing so will keep the
