TASKalfa 3500i - Image Smudges; Procedure 2) DUCT FAN TONER Cleaning

To Next Page

To Previous Page

Image Smudges (5/13)

Procedure 2)

Remove the 302LF33012/DUCT FAN TONER

from the machine and clean, suction it with the

vacuum cleaner.

Reattaching the seal after cleaning and cut the

part of duct.

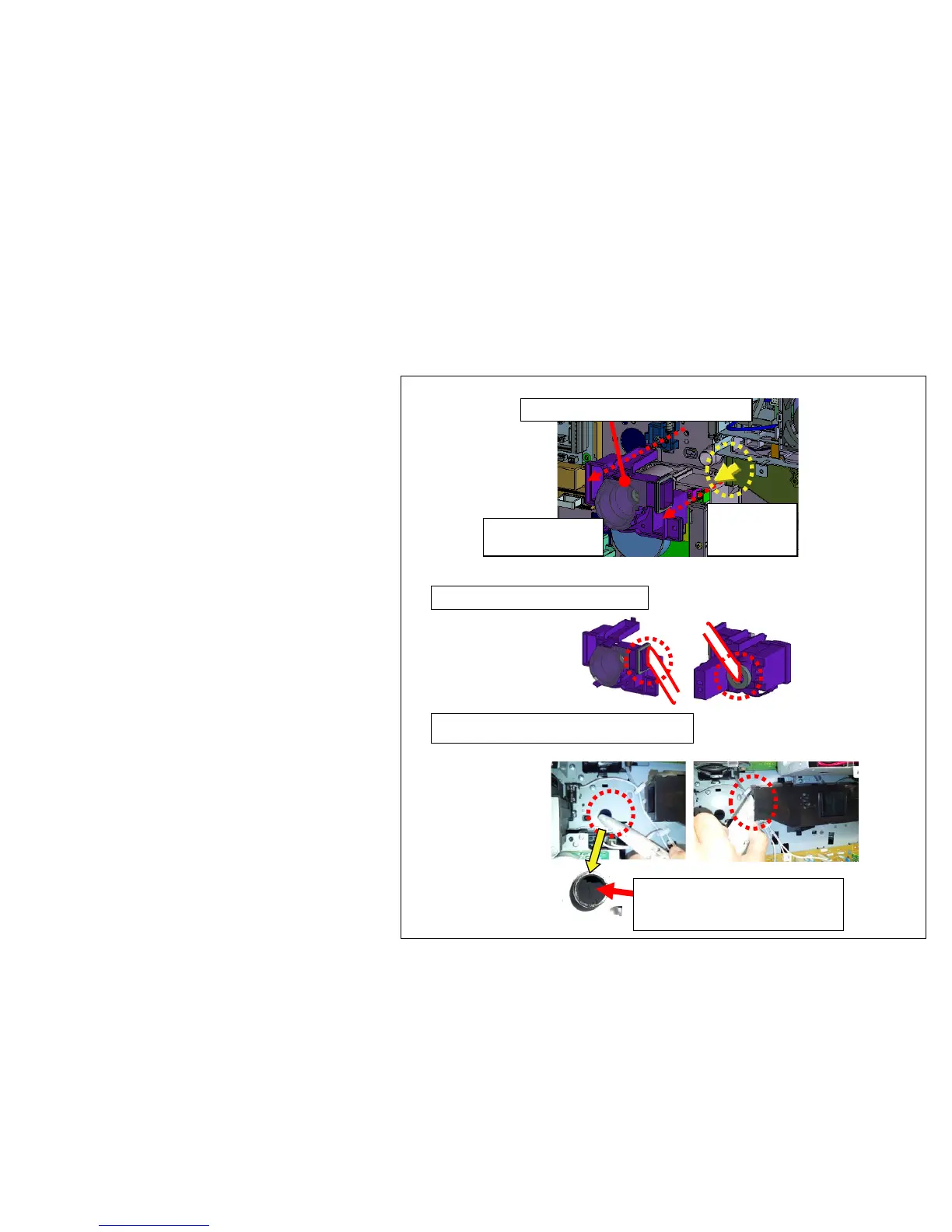

302LF33012/DUCT FAN TONER

Remove the duct

with 2 screws

Lift up this

part if it is

detached.

Clean the removed duct

Clean after removing the duct too.

(Before cleaning )

Toner is accumulating.
