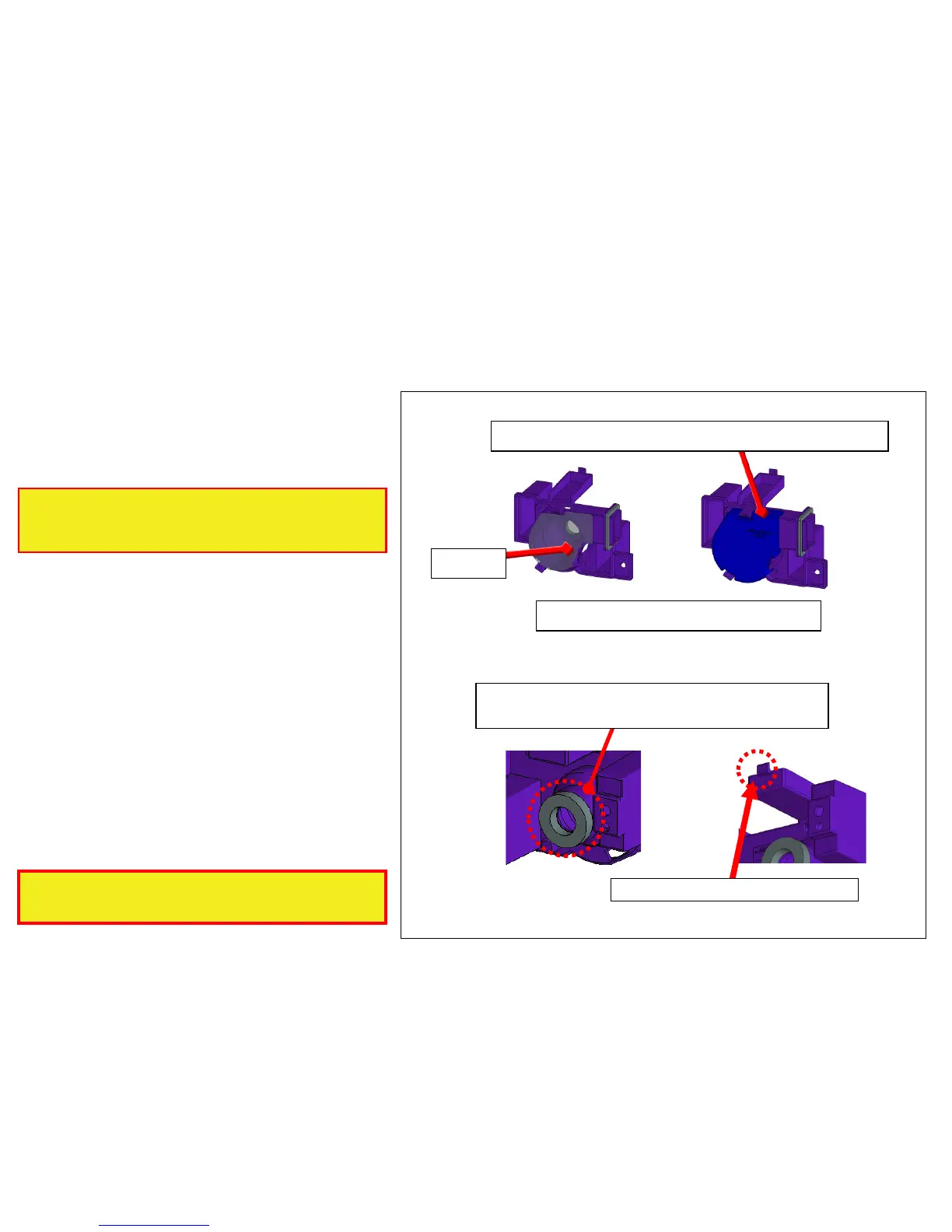

Re-attach with 302LF33201/SEAL TONER
DUCT A (Change with 5mm thick sponge)
Cut the rib (claw) of the duct.
Procedure 3)
Peel off the FILM of 302LF33012/DUCT FAN
TONER and replace with 302LF94410/PARTS LID
TONER FAN ASSY(ZG) SP
302LF94410/PARTS LID TONER FAN ASSY(ZG) SP
FILM
302LF94410 is re-usable.
After this replacement, the level of unit is same
as 2012 Mar. and after production model.
Please replace with the parts as shown in fig when
302LF94410/PARTS LID TONER FAN ASSY(ZG)
SP.is available.
Image Smudges (6/13)
