GTS Technical Manual
15. March 2010 Edition: V1.00/2010 5-5
Copyright © 2010, Diversey Inc.
05.0 swingo 855 B Power - mechanics.fm
5.1.1.3 Replacing of throttle lever
Remove
• Remove microswitch according to chapter REPLACING OF
MICROSWITCH.
• Unscrew the four screws of the of switch holder bracket.
• Remove switch holder bracket.
• Unscrew mechanic hall sensor compl. fixation.
• Remove mechanic hall sensor compl.
• Put the locking lever to the left.
• Remove both throttle levers.
Remarks
The lever parts can be replaced as single pieces according to e-
spares.

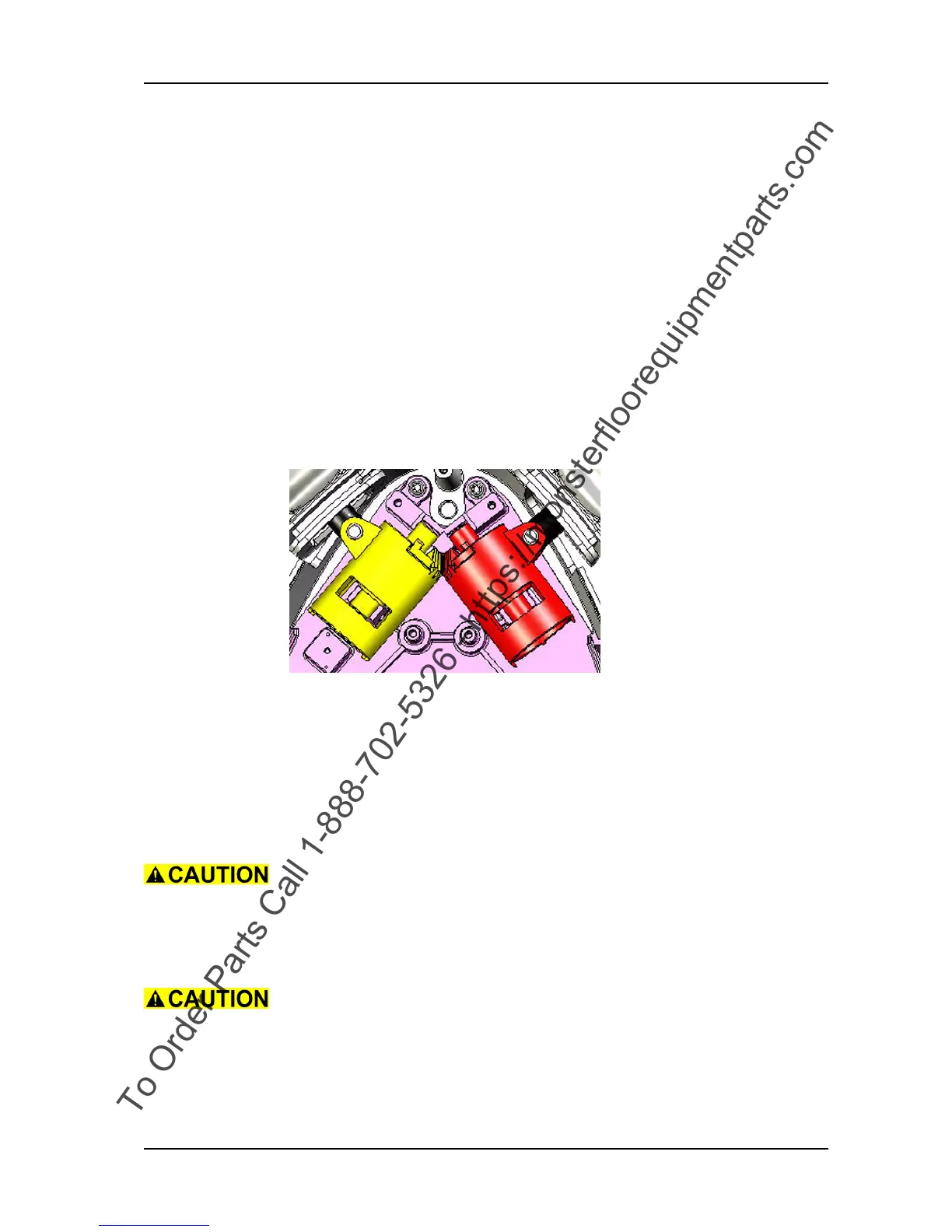

Picture 4: Throttle levers position
Pay attention that the solenoid is placed on the left side (hall sensor
side).
Make sure that the rubber covers are placed in the slots.
Mount
• Assemble both throttle levers.
Ensure that the lever toothed wheels are positioned in the centre of
the possible movement.
• Mount switch holder bracket.
• Build in mechanic hall sensor compl.
Make sure that the mechanic hall sensor compl. is placed correctly
on the pins of the support before tightening the screw.
• Place and tighten screw of mechanic hall sensor compl.
• Complete assembling according to the chapter REPLACING OF
MICROSWITCH.
