GTS Technical Manual
15. March 2010 Edition: V1.00/2010 5-11
Copyright © 2010, Diversey Inc.
05.0 swingo 855 B Power - mechanics.fm
5.1.2 Squeegee lowering mechanism
5.1.2.1 Replacing of squeegee bracket spring

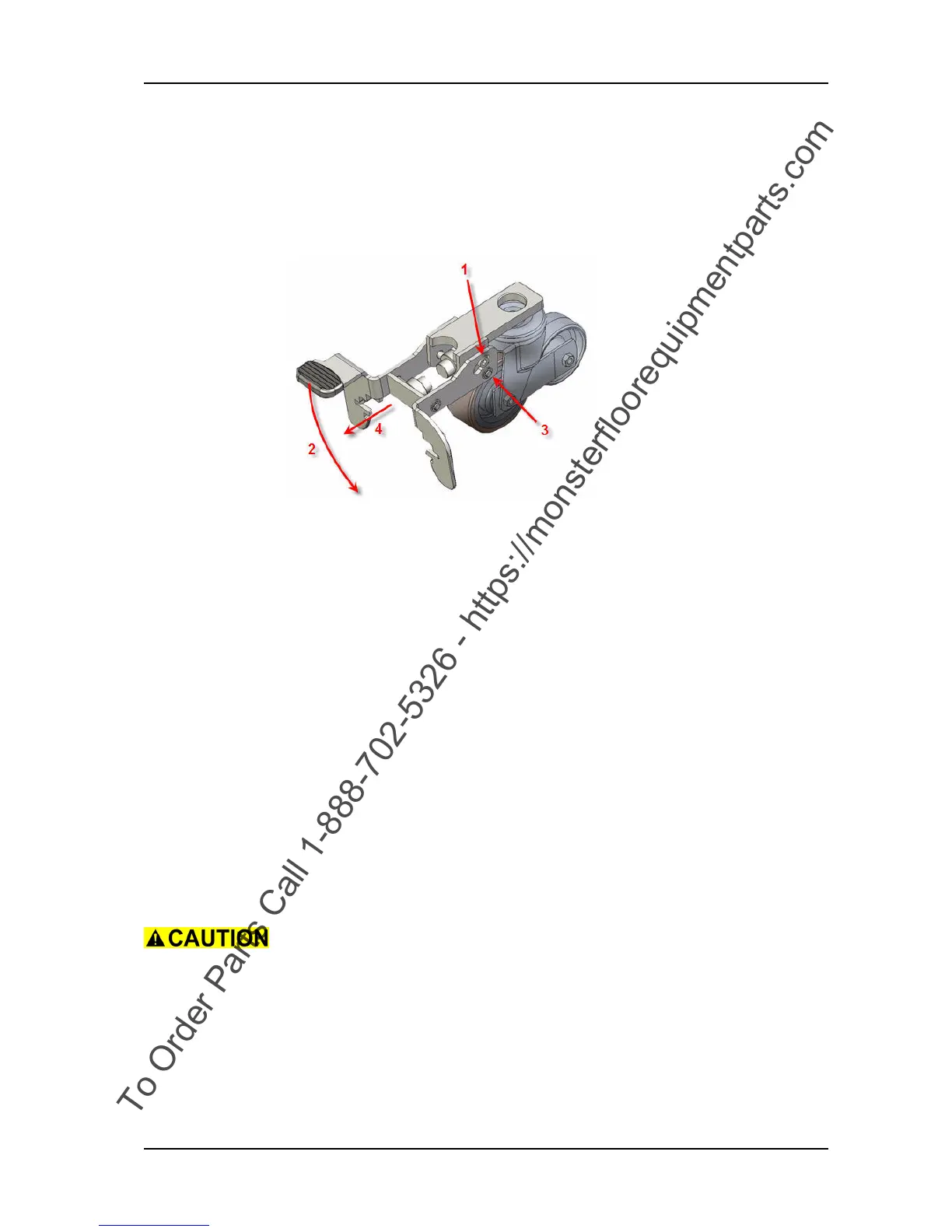

Picture 2: Squeegee lowering
Remove
• Remove the squeegee from the fixation.
• Remove the tool from the brush drive unit.
1 Remove screws (03/103) from support (03/101).
2 Put the bracket in working position (down).
Remarks
Lift up the rear of machine and incline it to the front to loosen the
tension of the spring.
3 Remove one circlip of rear axle.
• Remove the rear axle.
4 Remove pressure spring.
Mount
• Assemble new pressure spring.
• Assemble the rear axle.
• Position the circlip on the rear axle.
Ensure that the slide bearings are proper positioned.
• Move the squeegee bracket to semi transport position.
• Assemble the screws.
Service
Apply lubricant locking on the screws (03/103).
