5.1.1.5 Replacing of tank cover

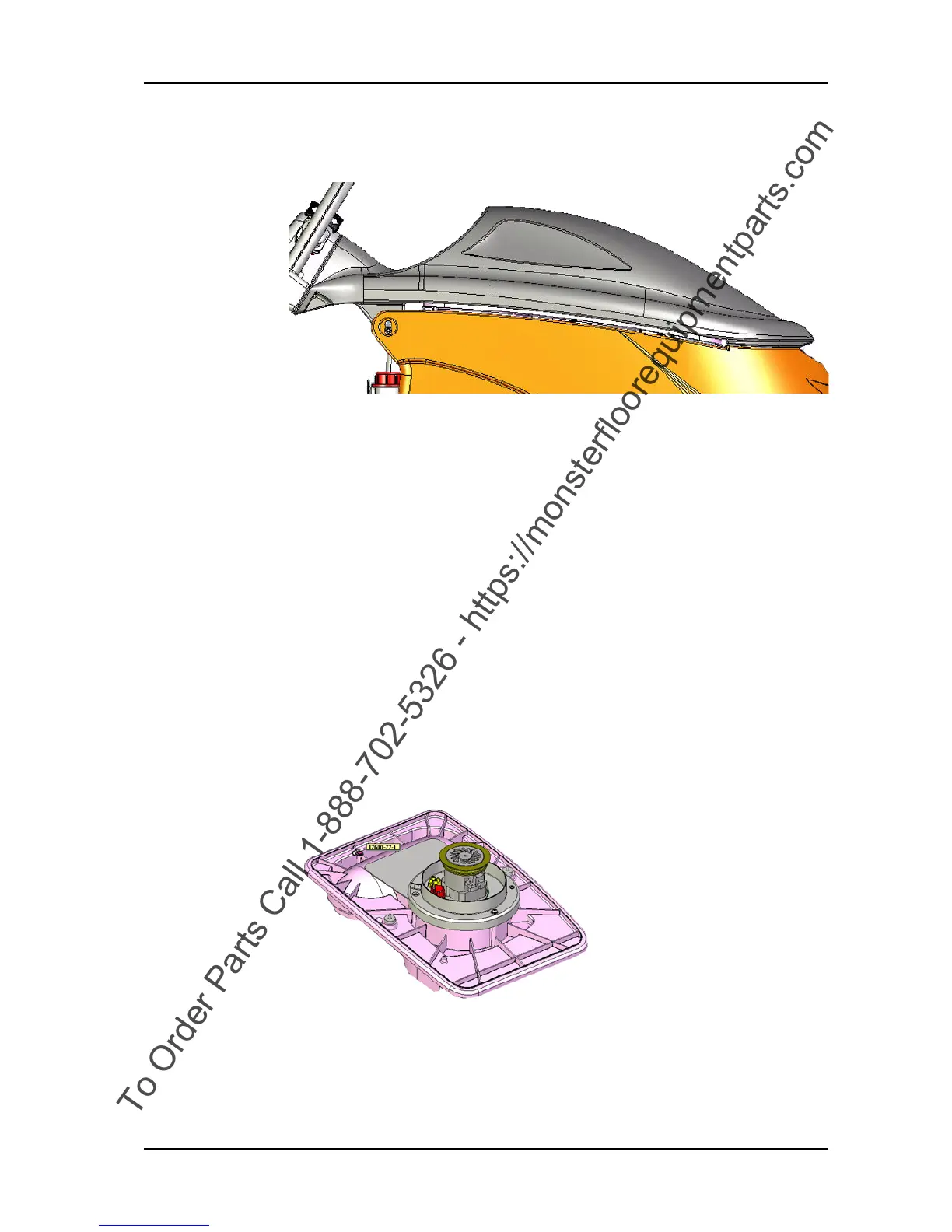

Picture 7: Tank cover
Remove
• Unscrew dashboard fixation.
• Remove dashboard and disconnect all cables.
• Remove screws of handle cover.
• Disconnect wires of external hour counter from the cover or
the hour counter depending on the setup.
• Remove handle cover.
• Unscrew screws of throttle lever bracket.
• Thread out hall sensor ribbon cable and remove the complete
throttle lever system.
• Unscrew handle fixation to the tank cover (02/103) and (02/
107).
• Remove handle from tank cover.
• Unscrew and remove rear panel.
• Open the tank cover.
• Loosen the screw on the tank cover on the support side (RH).
• Loosen the screw on the other side (LH).
• Close the tank cover.
• Open the tank cover without base plate.
Picture 1: Base plate
• Disconnect vacuum motor cable at connection block (cable to
To Next Page
