GTS Technical Manual
15. March 2010 Edition: V1.00/2010 5-22
Copyright © 2010, Diversey Inc.
05.0 swingo 855 B Power - mechanics.fm
5.1.6 Brush drive unit
5.1.6.1 Replacing of brush drive unit

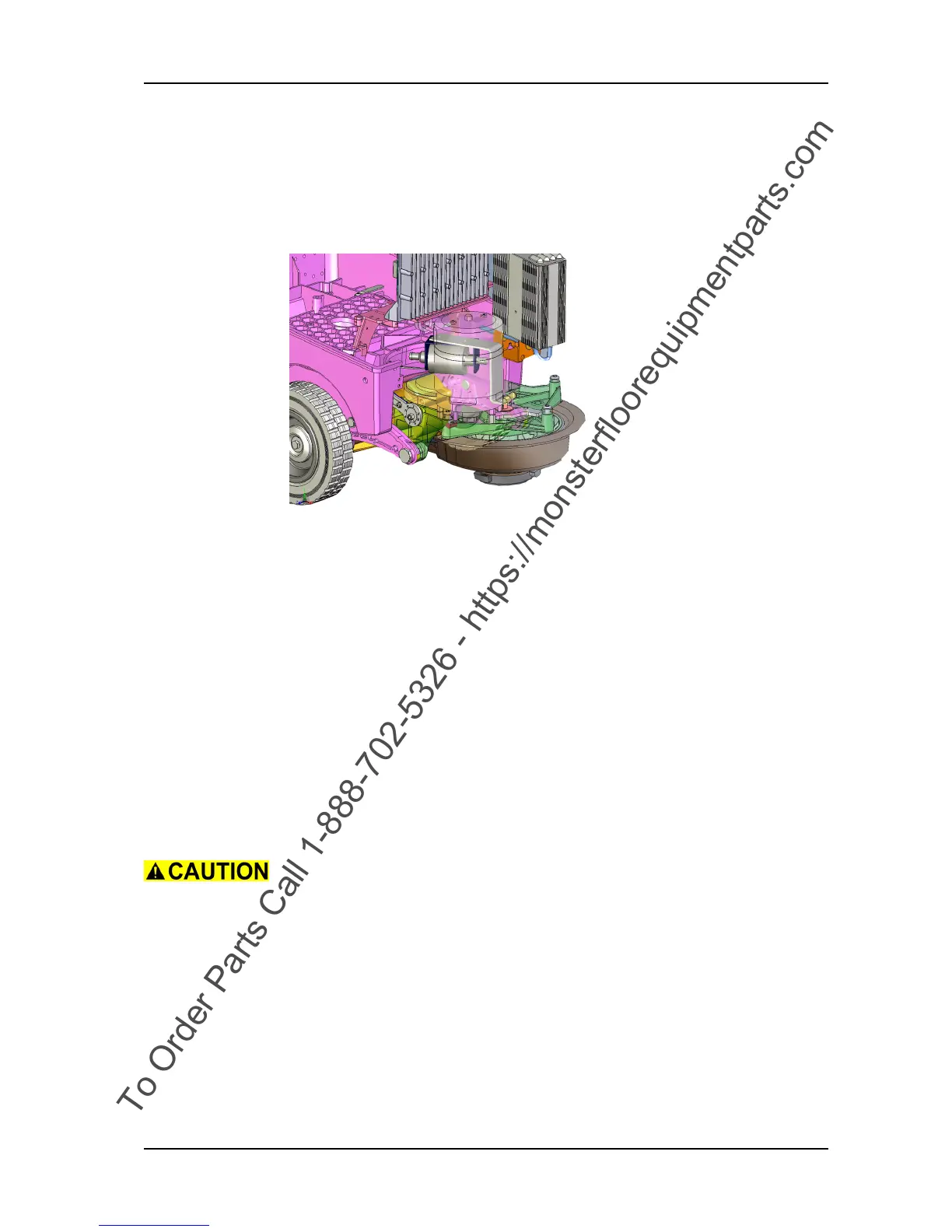

Picture 15: Brush drive replacing
Remove
Unlock battery compartment by removing screws from locking
system.
Open battery compartment.
Put the brush drive unit in cleaning position.
Unscrew brush housing fixation screws.
Remove the brush housing from the brush drive unit.
Disconnect pump wiring.
Disconnect the fresh water hose from the pump.
Disconnect the brush motor wires from power electronics.
Remove self locking nuts (M8) on LH and RH from the bolts,
holding brush drive unit to the cradle.
Remove self locking nut (M6) at eccentric disc at the RH.
Remove the eccentric disc.
Remove the bolt and eccentric shaft.
Make sure that you hold the brush drive unit firmly.
Pivot the complete brush drive unit out.
Mount
Position the brush drive unit to the cradles.
Position the bolt and the eccentric shaft.
Position the eccentric disc.
Adjustment
Default setting:
Eccentric disc (07/122): Position 4
Eccentric shaft (07/110): Position 4
