GTS Technical Manual
15. March 2010 Edition: V1.00/2010 5-19
Copyright © 2010, Diversey Inc.
05.0 swingo 855 B Power - mechanics.fm
5.1.4.4 Replacing of pump

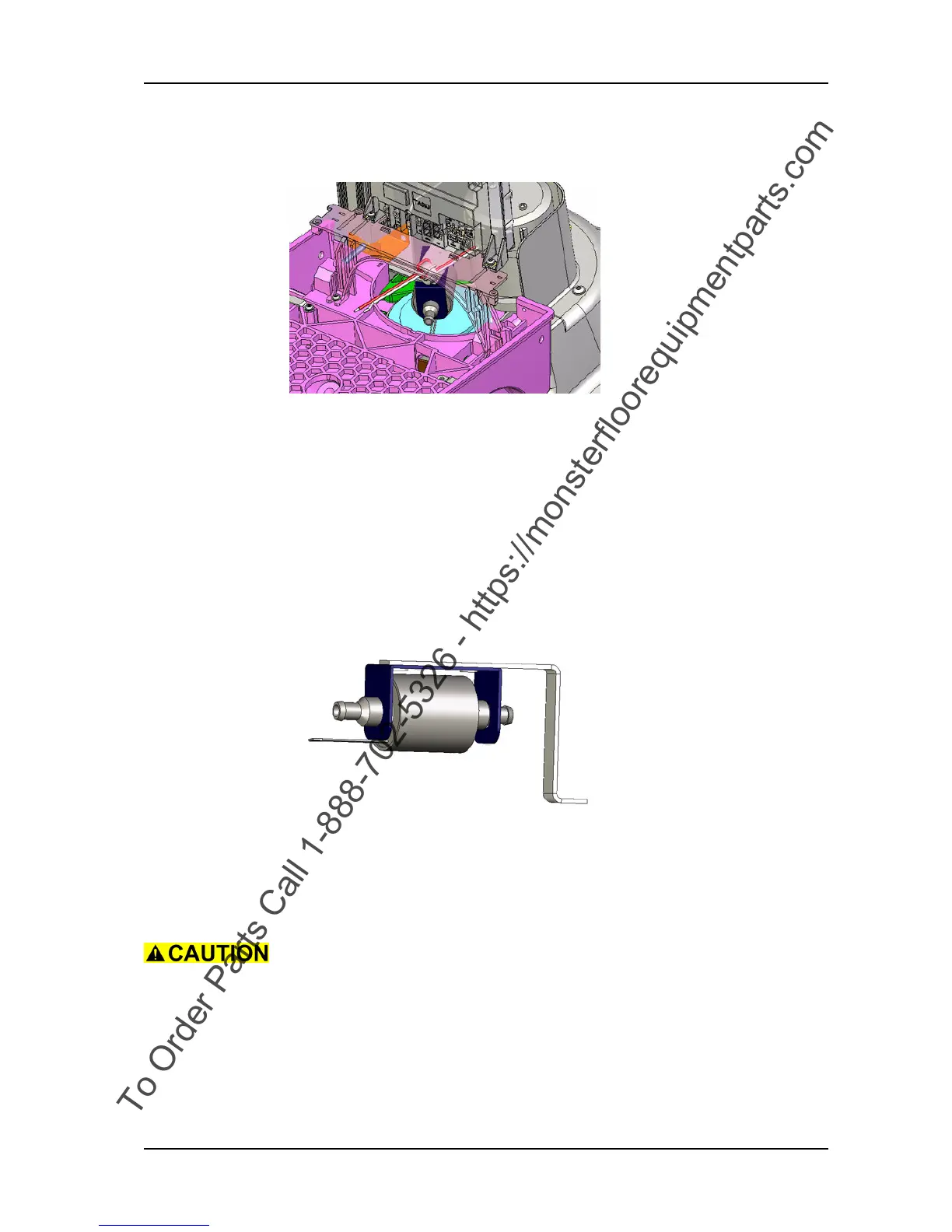

Picture 12: Pump
Remove
• Unlock battery compartment by removing the screws from the
locking system.
• Open the battery compartment.
• Lower the brush drive unit to cleaning position without tool
underneath.
• Unscrew brush housing fixation screws.
• Remove the brush housing to get access to the pump.
• Disconnect the pump wires.
• Unscrew hose clamps on both sides of the pump.
• Remove the fresh water hoses from the pump.
Picture 13: Pump
• Thread out pump from pump holder.
Mount
• Position new pump into pump holder.
Ensure that the pump is build in according to the water flow. The
arrow on the pump indicates the water flow direction.
• Connect fresh water hoses on the pump with the clamps.
• Connect wires to the pumps.
• Mount the brush housing.
