GTS Technical Manual
15. March 2010 Edition: V1.00/2010 5-14
Copyright © 2010, Diversey Inc.
05.0 swingo 855 B Power - mechanics.fm
5.1.3.3 Replacing of back blade

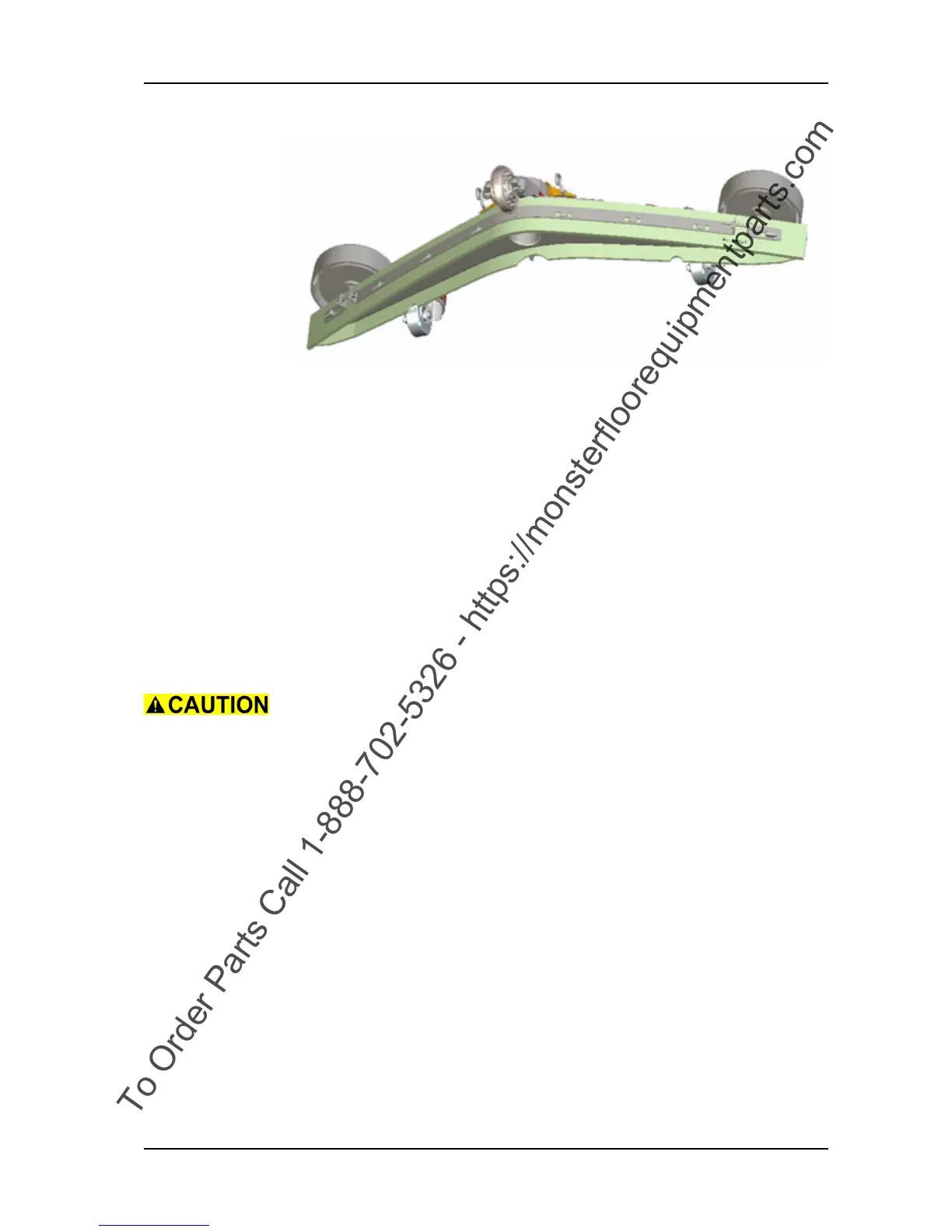

Picture 7: Back blade
Remove
• Untighten the fixation screws on both sides to release the
pressure.
• Remove the back blade.
Mount
• Position new back blade.
• Position tightening strap.
• Thighten fixation screws until the blade is proper fixed on the
squeegee body.
Remarks
Pay attention that the tightening strap is positioned in the centre.
Ensure that the tightening strap is positioned correct (thin part to
the bottom).
If you over tighten the tightening strap it can bulge.
