GTS Technical Manual
15. March 2010 Edition: V1.00/2010 5-30
Copyright © 2010, Diversey Inc.
05.0 swingo 855 B Power - mechanics.fm
5.1.8 Tool lowering unit
5.1.8.1 Replacing of foot lever

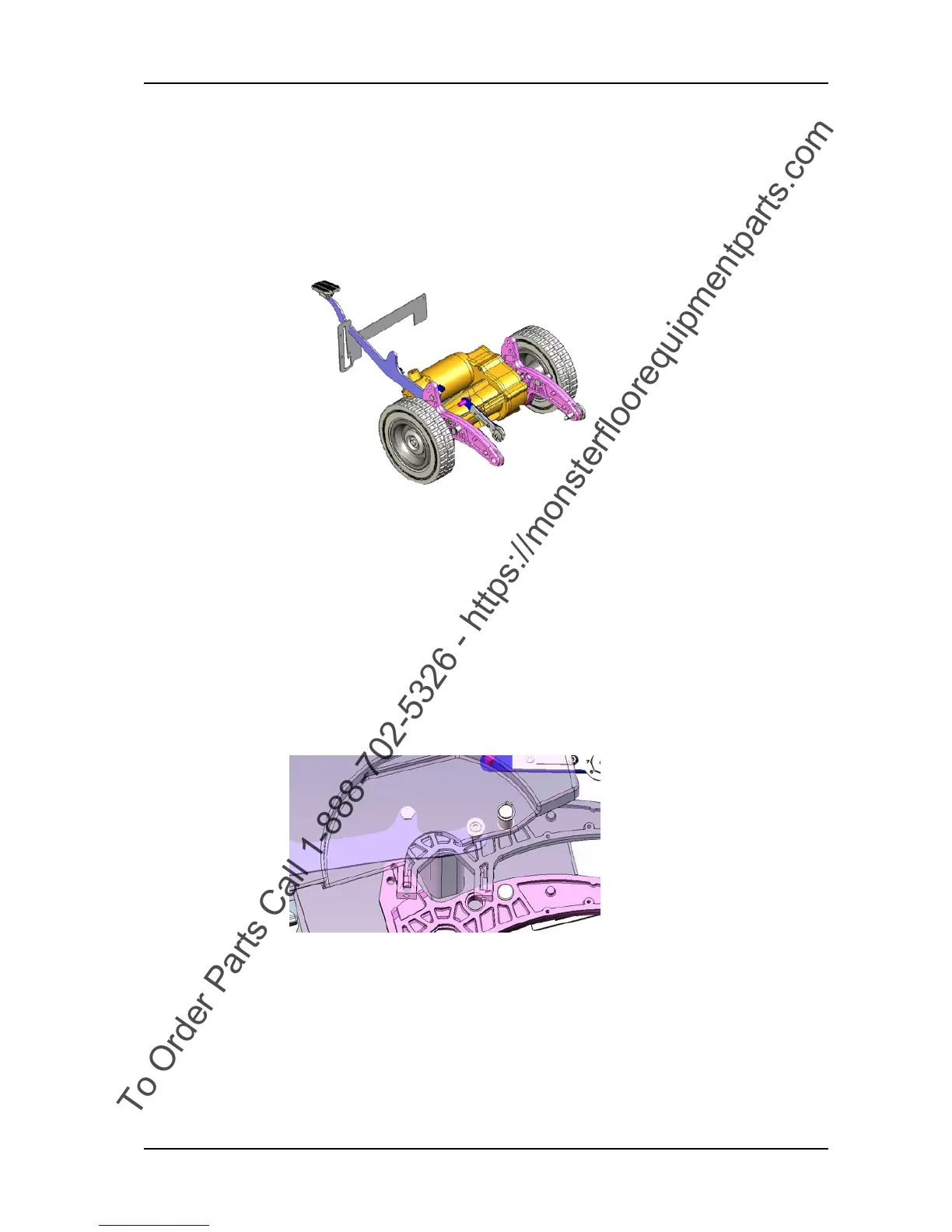

Picture 23: Tool lowering
Remove
Remove brush drive unit according to chapter REPLACING OF
BRUSH DRIVE UNIT.
Remove traction unit according to chapter REPLACING OF
TRACTION UNIT.
Remove pedal pad from foot lever.
Unplug microswitch.
Unscrew microswitch fixation.
Remove microswitch.
Remove retaining ring (07/107) for axle (07/112).
Remove axle (07/112) on RH side for cradle.
Picture 24: Cradle fixation
Remove the cradle and foot lever from the chassis.
Remove nuts (07/113) and (07/126).
Remove the foot lever (07/104).
