GTS Technical Manual
15. March 2010 Edition: V1.00/2010 5-31
Copyright © 2010, Diversey Inc.
05.0 swingo 855 B Power - mechanics.fm
Mount
• Build in new foot lever.
• Position and tighten nuts (07/113) and (07/126).
• Position cradle and foot lever in the correct position.
• Assemble axle (07/112) for cradle.
• Assemble microswitch and adjust accordingly.
Adjustment
The foot lever switch has to apply when the foot lever passes the
centre of the LH side of the stop plate squeegee (07/102)

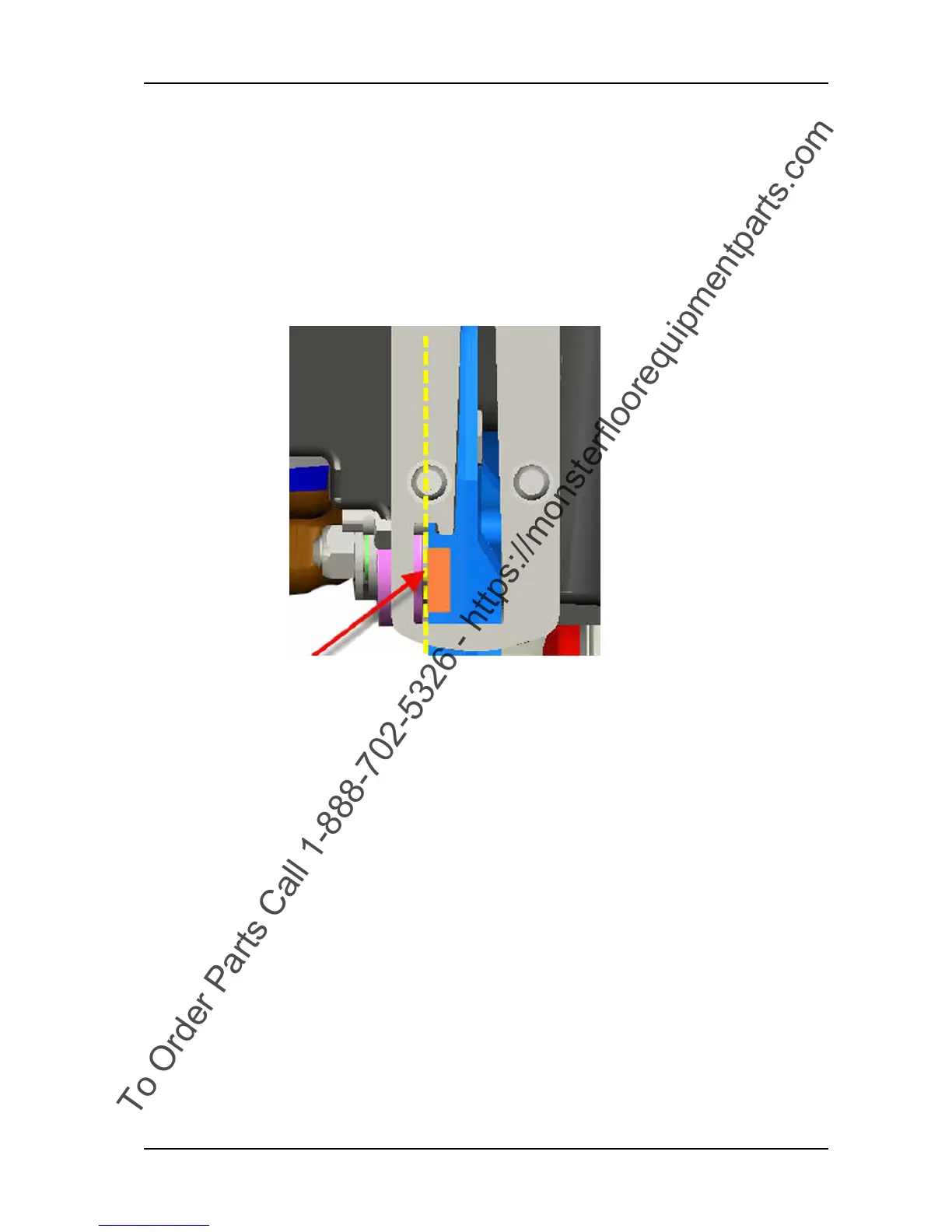

Picture 25: Switching point
• Connect microswitch.
• Assemble pedal pad on the foot lever.
• Complete assembling according to the chapter REPLACING OF
TRACTION UNIT.
• Complete assembling according to the chapter REPLACING OF
BRUSH DRIVE UNIT.
