Taski swingo 855B power - Replacing of Vacuum Motor

GTS Technical Manual
15. March 2010 Edition: V1.00/2010 5-6
Copyright © 2010, Diversey Inc.
05.0 swingo 855 B Power - mechanics.fm
5.1.1.4 Replacing of vacuum motor

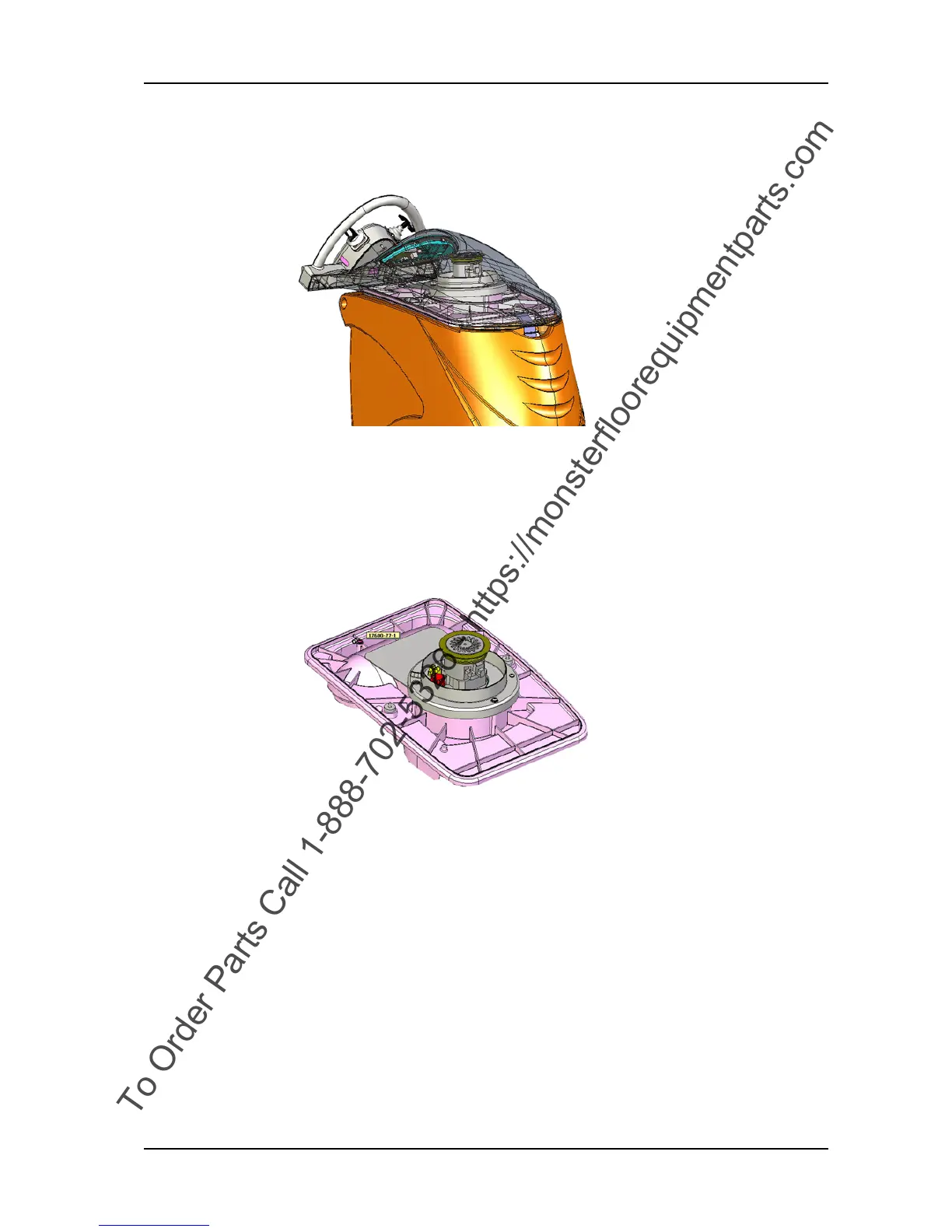

Picture 5: Vacuum motor
Remove
• Open the tank cover.
• Loosen the screw on the tank cover on the support side (RH).
• Loosen the screw on the other side (LH).
• Close the tank cover.
• Open the tank cover without base plate.
Picture 6: Base plate
• Disconnect vacuum motor wires from connection block.
• Remove sealing of vacuum motor to tank cover.
• Remove capacitor from motor.
• Unscrew the 3 screws of the vacuum motor protection plate.
• Remove the vacuum motor protection plate.
• Remove vacuum motor fixation sealings.
• Remove vacuum motor.
• Remove bottom sealing of the vacuum motor.
Mount
• Position bottom sealing of the vacuum motor.
• Build in vacuum motor.
• Position vacuum motor fixation sealings.
• Assemble vacuum motor protection plate.
