5.1.5 Drive, Wheel group
5.1.5.1 Replacing of traction unit

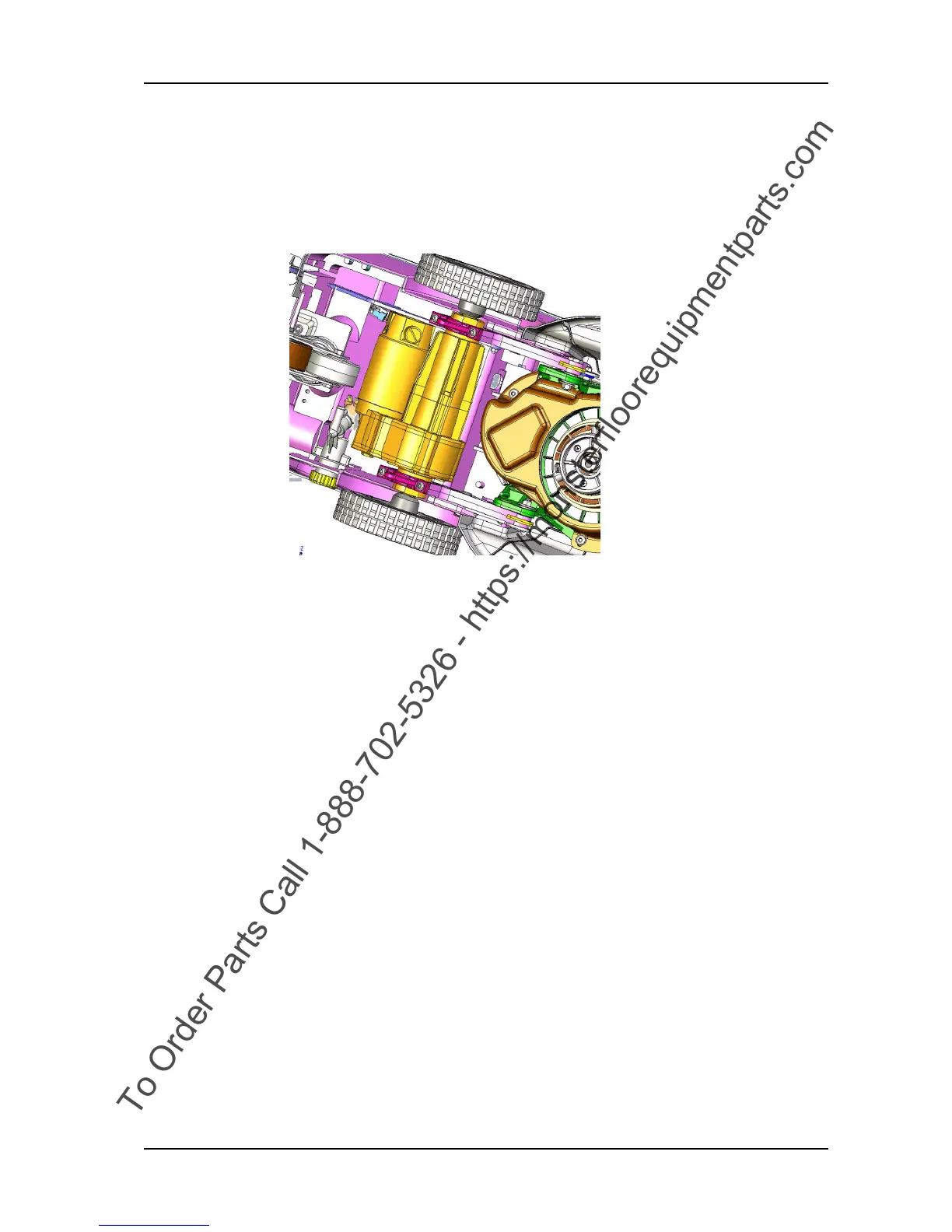

Picture 14: Traction unit
Remove
• Unlock battery compartment by removing screws from locking
system.
• Open battery compartment.
• Disconnect traction unit from power electronics.
• Thread out cables from battery compartment.
• Close battery compartment.
• Lay machine to the LH side.
• Unscrew fixation brackets.
• Remove traction unit including traction wheels.
Mount
• Position new traction unit including traction wheels.
• Position and tighten fixation brackets.
• Lift up machine again.
• Open battery compartment.
• Thread in cables of traction unit into the battery compartment.
• Connect traction unit to power electronics.
• Look the battery compartment on both sides with the screws
from the locking system.
