Taski swingo 855B power - Lower part & tank

GTS Technical Manual
15. March 2010 Edition: V1.00/2010 5-15
Copyright © 2010, Diversey Inc.
05.0 swingo 855 B Power - mechanics.fm
5.1.4 Lower part & tank
5.1.4.1 Replacing of tank

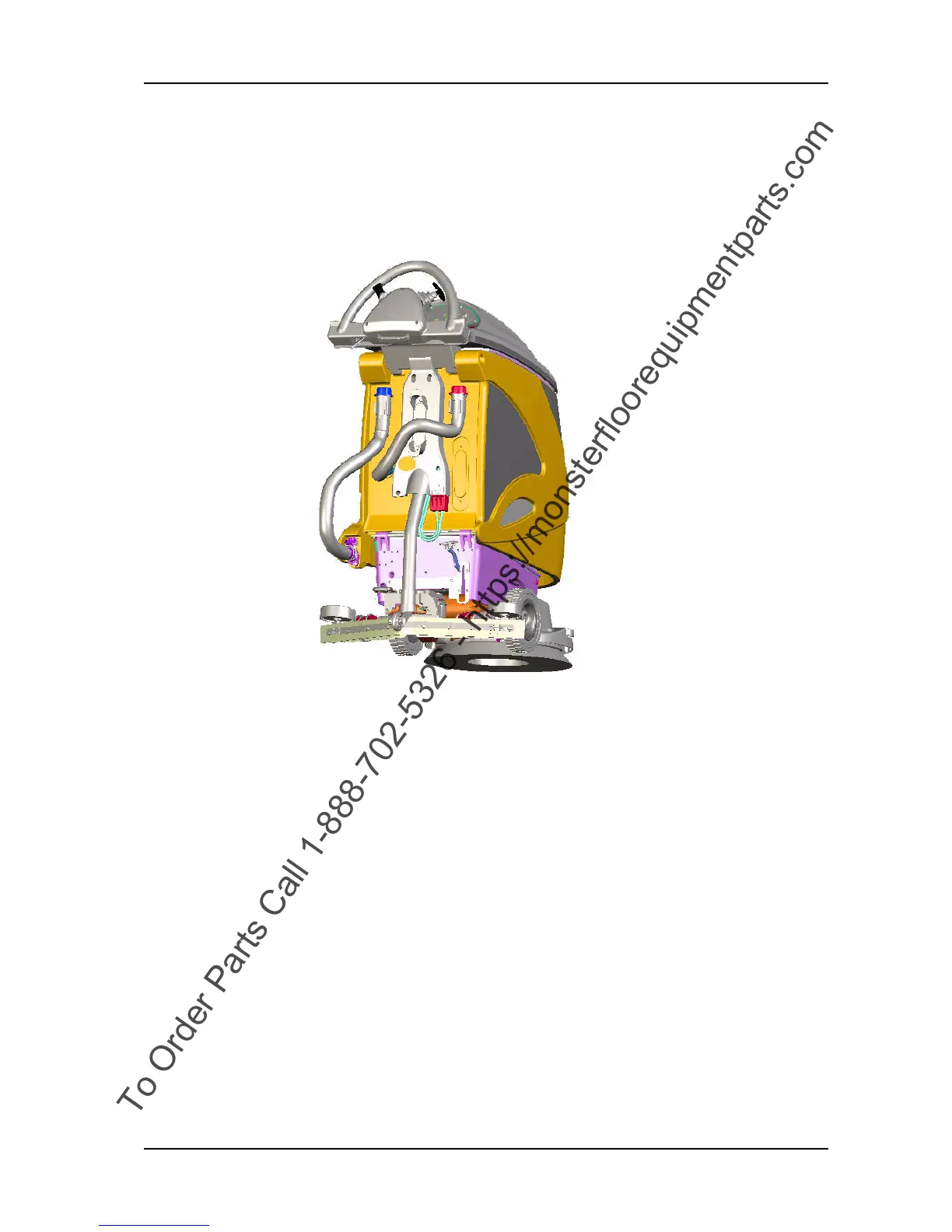

Picture 8: Tank
Remove
• Remove tank cover according to chapter REPLACING OF TANK
COVER.
• Remove fresh water hose from tank.
• Remove rear panel.
• Unscrew charger jack from rear panel.
• Unlock battery compartment by removing screws from locking
system.
• Open the battery compartment.
• Thread out wiring and hoses to the battery compartment.
• Close battery compartment.
