Taski swingo 855B power - Replacing of Motor & Motor Belt

GTS Technical Manual
15. March 2010 Edition: V1.00/2010 5-28
Copyright © 2010, Diversey Inc.
05.0 swingo 855 B Power - mechanics.fm
5.1.7.3 Replacing of motor & motor belt

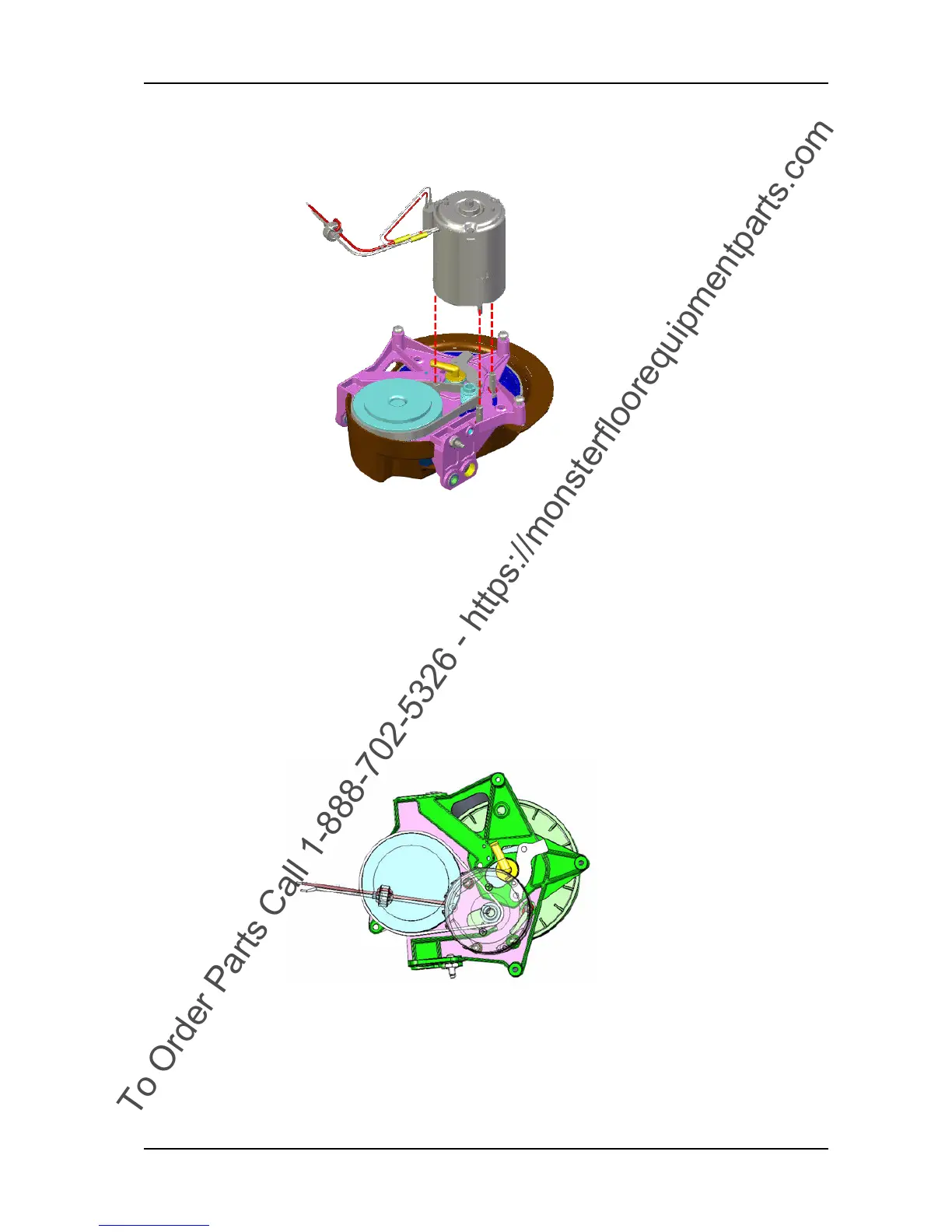

Picture 21: Motor belt
Remove
• Remove brush drive unit according to chapter REPLACING OF
BRUSH DRIVE UNIT.
• Remove brush belt according to chapter REPLACING OF
BRUSH BELT.
• Remove brush pulley according to chapter REPLACING OF
PULLEY.
• Remove the two screws (09/134) and the one counter head
screw (09/135).
• Remove the motor and the motor belt.
Picture 22: Motor belt
