5.1.7.2 Replacing of pulley
e

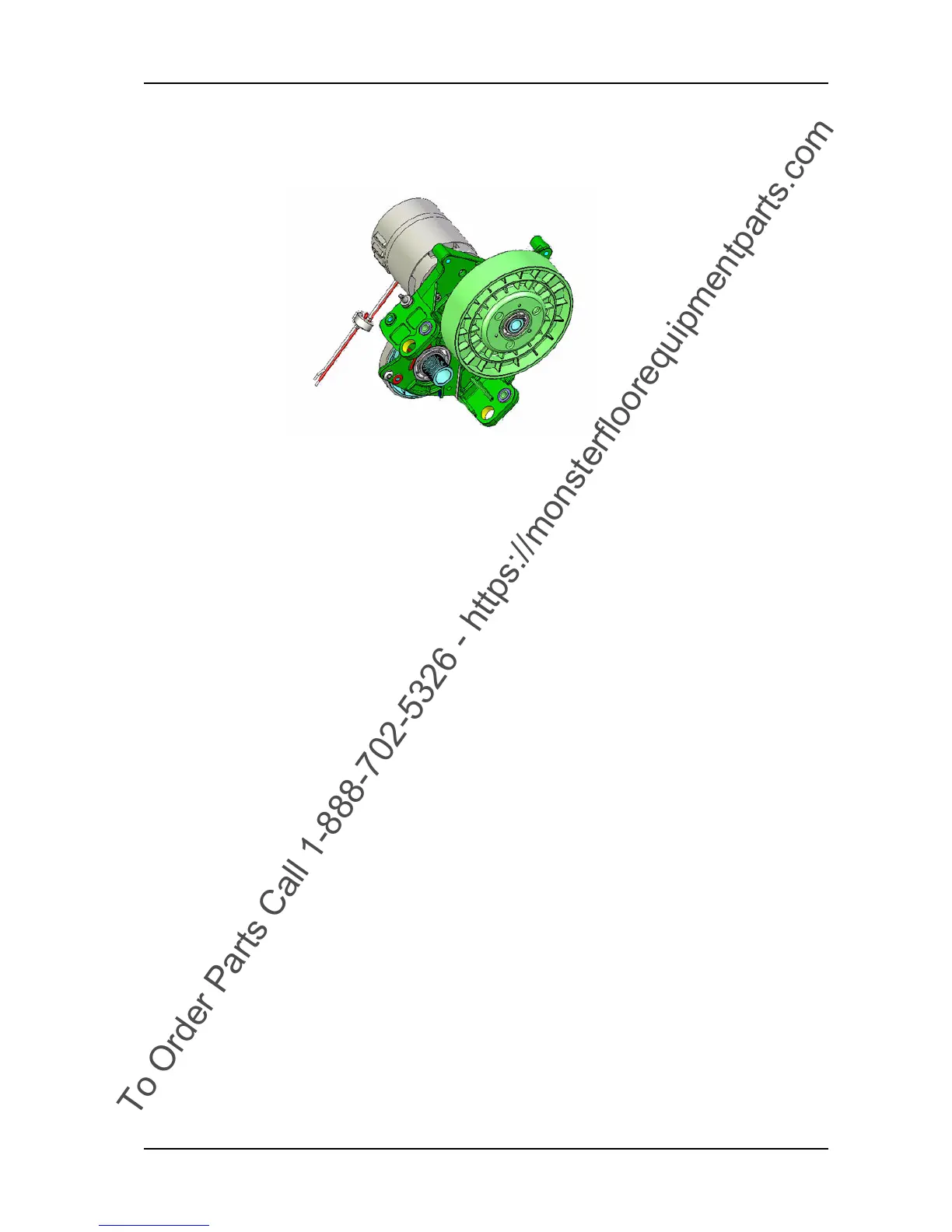

Picture 20: Brush pulley
Remove
• Remove brush drive unit according to chapter REPLACING OF
BRUSH DRIVE UNIT.
• Remove brush belt according to chapter REPLACING OF
BRUSH BELT.
• Remove the three screws (08/136) of the coupling.
• Remove the coupling from brush drive pulley.
• Remove the catch (08/131).
• Remove the centre plug (08/134) and the sealing ring (08/
130).
• Remove the retaining ring (08/141).
• Remove the pulley (08/127).
Mount
• Mount the new pulley.
• Position the retaining ring.
Service
Apply lubricant on the sealing ring (08/130).
• Position the sealing ring and the centre plug.
• Position the catch.
• Position the coupling.
• Fix the coupling with the three screws.
Service
Thighen the screws (8/136) with 2.3 Nm.
• Complete assembling according to the chapter REPLACING OF
BRUSH BELT.
• Complete assembling according to the chapter REPLACING
BRUSH DRIVE UNIT.
