5.1.7 Brush drive

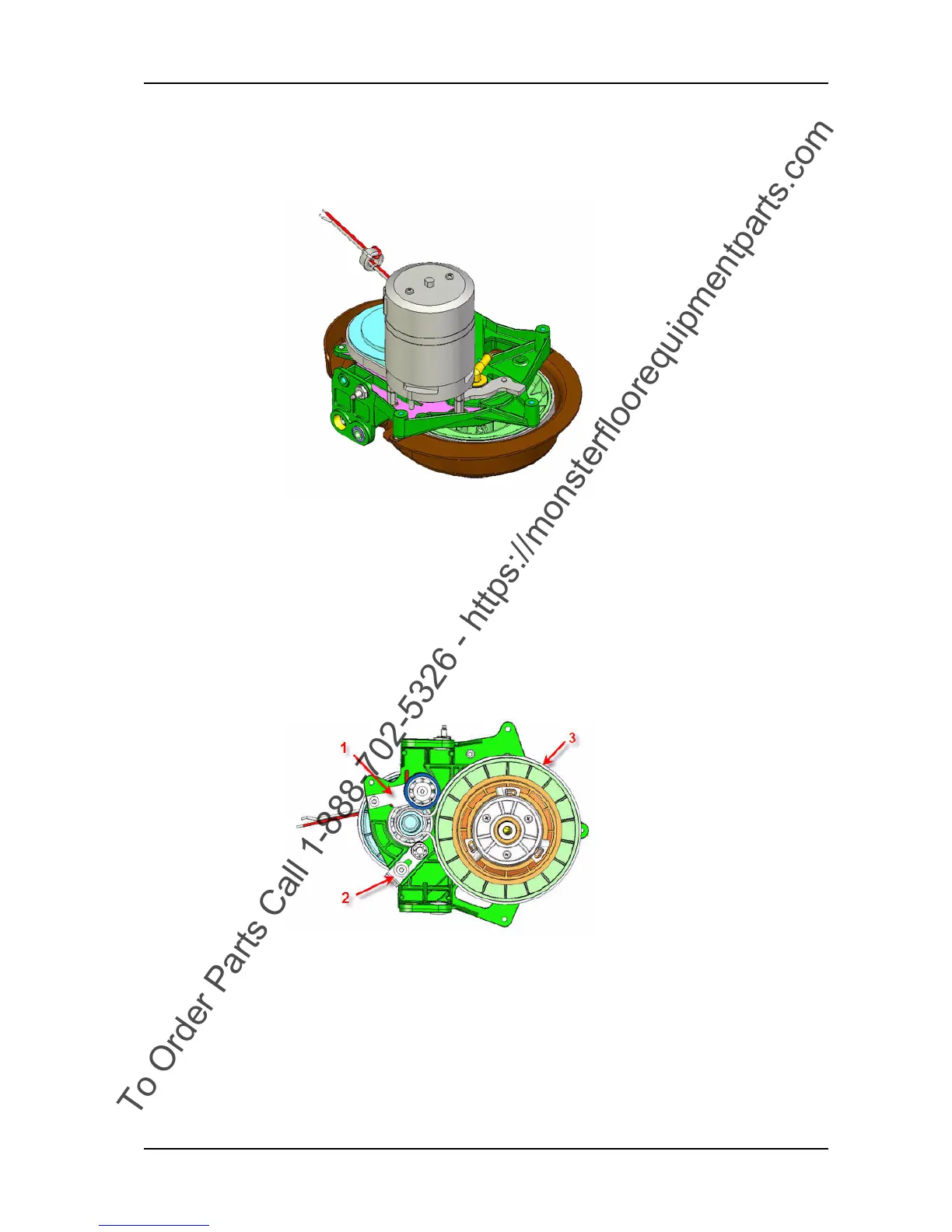

Picture 18: Brush drive
5.1.7.1 Replacing of brush belt
Remove
• Remove brush drive unit according to chapter REPLACING OF
BRUSH DRIVE UNIT.
• Position brush drive unit upside down.
• Remove the three screws (08/137) of cover.
• Remove the cover (08/129).
Picture 19: Remove belt
1 Untighten belt tensioning roller and remove it.
2 Remove the small tensioning roller.
3 Remove the belt.
