6.2.4 Charger

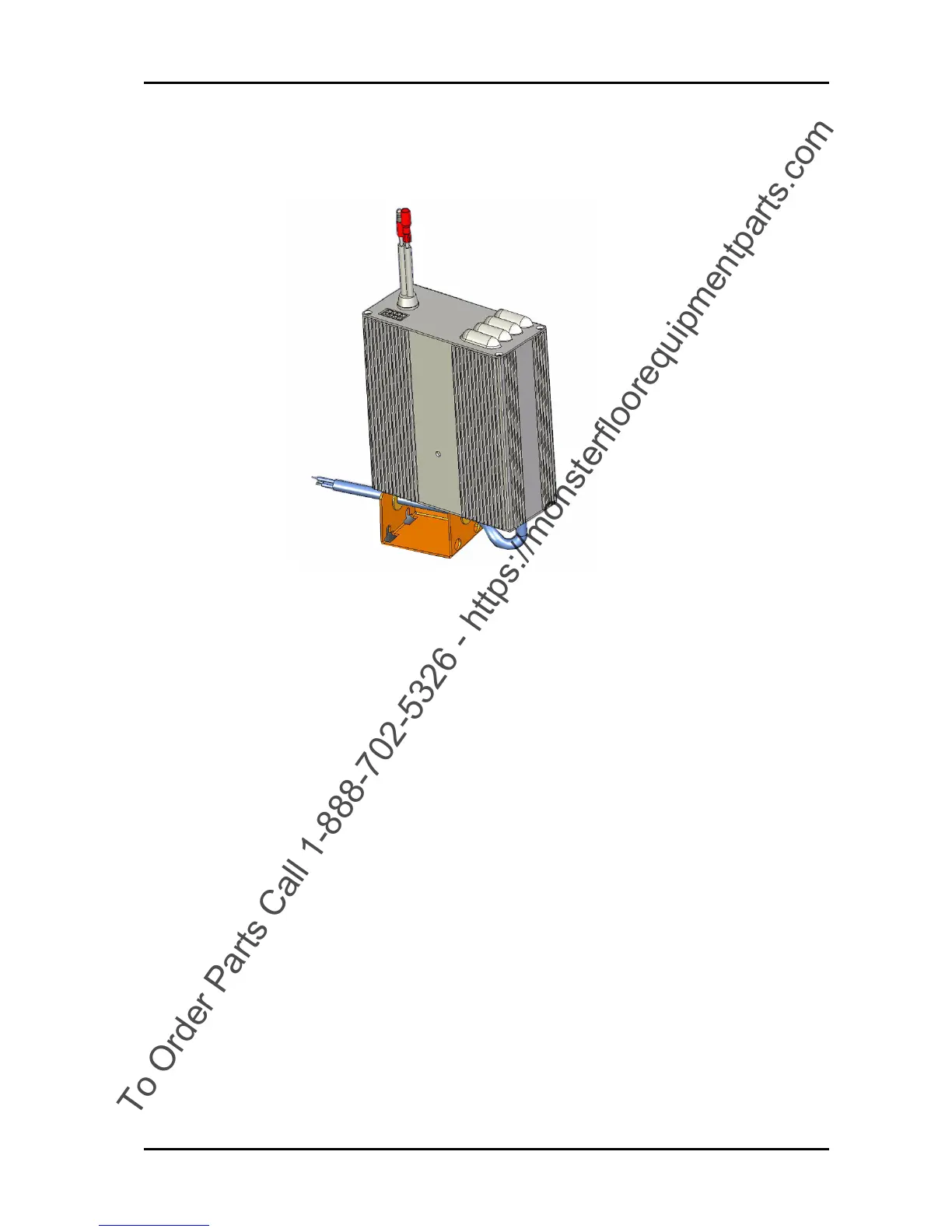

Picture 8: Charger
6.2.4.1 Replacing of charger
Remove
• Remove connector from charger.
• Disconnect battery connection and thread out wires.
• Unscrew main cord connection and thread out cable.
• Untighten screws at the bottom to remove charger.
Mount
• Position charger and tighten screws at the bottom.
• Thread in main cord and fix it to the connection block.
• Thread in battery wires and connect accordingly to the
colours.
• Connect the communication cable to the charger.
