Programmed Voltage to zero.
Programmed Current to zero.
UVL to zero volts
OVP to its maximum value
AST OFF
OUT OFF
Foldback Protection OFF
Locked Front Panel

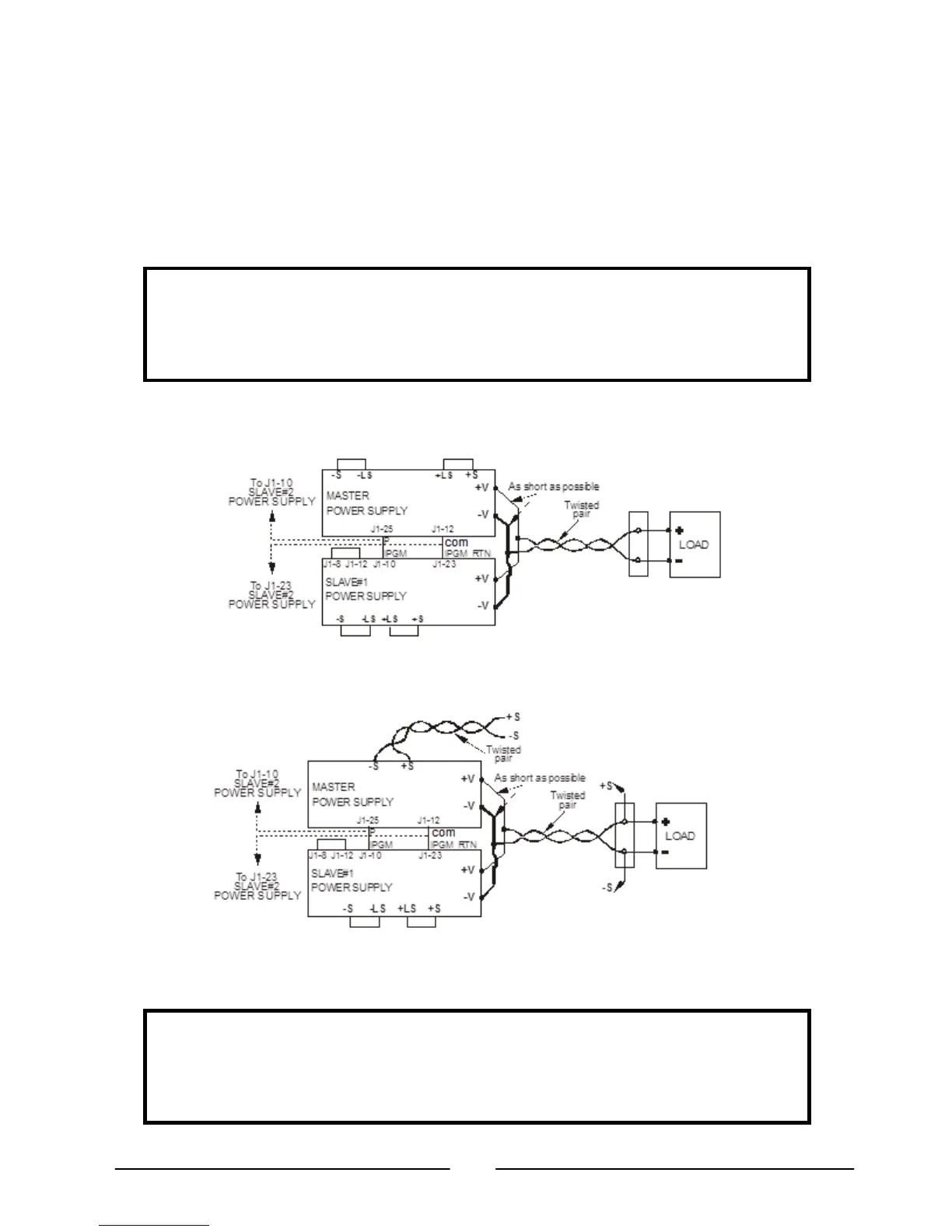

Figure 6-7: Parallel Connection with Local Sensing (Two-Wire Method)
Figure 6-8: Parallel Connection with Remote Sensing (Two-Wire Method)
NOTE
With local sensing it is important to minimize the wire length and resistance. Also,
the positive and negative wire resistance should be as close as possible to each
other to achieve current balance between the power supplies.
CAUTION
Make sure that the connection between –V terminals is reliable to avoid
disconnection during operation. Disconnection may cause damage to the power
