move backward to home position.

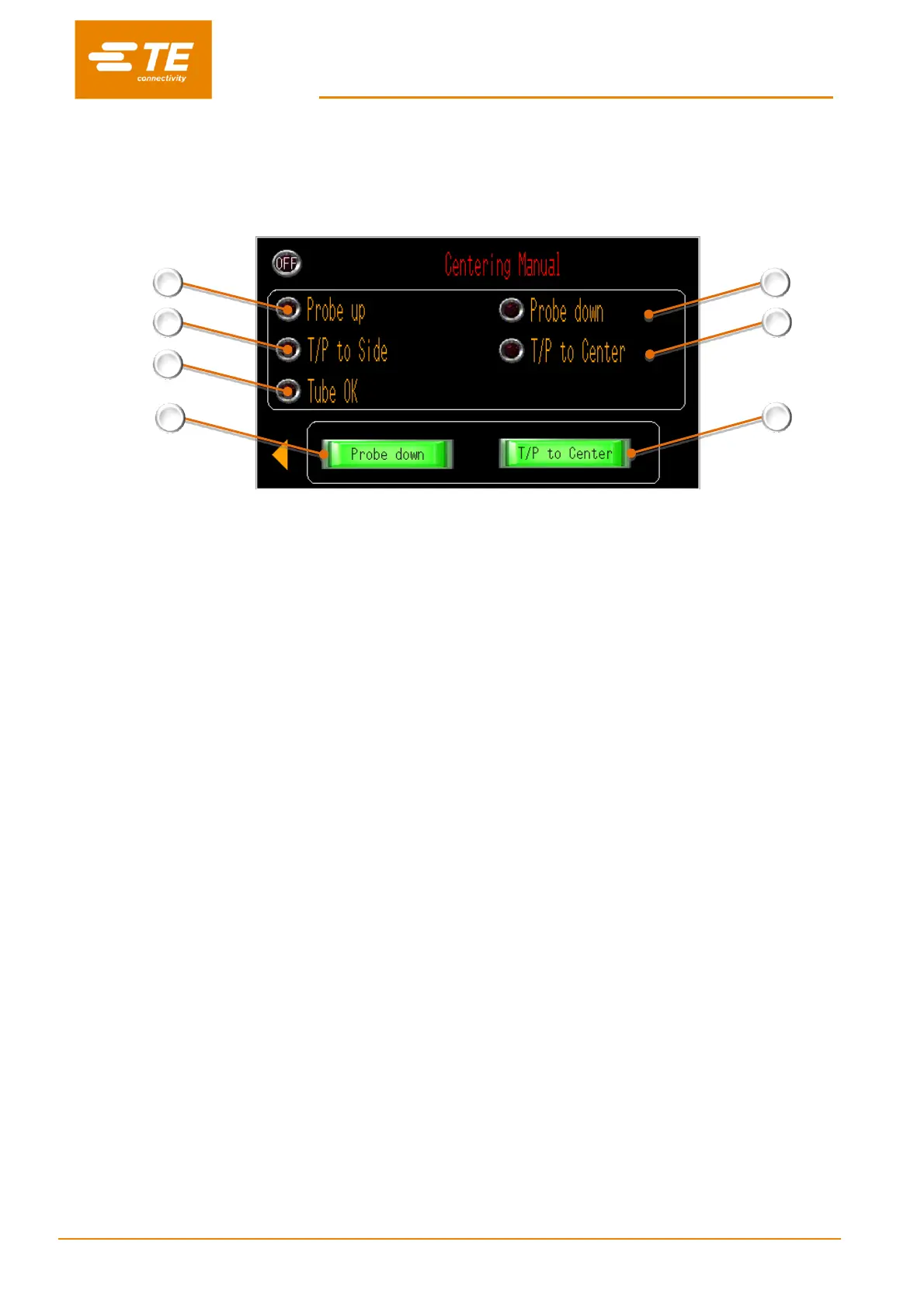

3.13 Centering Manual
This is an I/O page when input signal from those action
1. When detection arms swing up, this icon will illuminate green.
2. When detection arms swing down, this icon will illuminate green.
3. When centering plate in both sides, this icon will illuminate green.
4. When centering plate move to center without tube was detected, this icon will illuminate green.
5. When centering plate move to center with tube was detected, this icon will illuminate green.
6. Press on this button, the detection arms will swing down/ up.
7. Press on this button, left and right centering plate will move to center/sides
2
1
3
5
4
6
7
