3.6 Software module: Export
Measurement data can be exported in any other Windows application e. g. Microsoft
Excel™, Word™ or other programs which can handle color data, e.g. a RIP calibration
software.
SpectroDens works like the keyboard: Pressing the measurement button will place the
measurement value automatically at the location where the cursor is.
1. Here is dened, which data will be trans-
mitted, how it will be formatted and what
type of spacing between the measurement
data will be. All the settings can be saved and
recalled later.

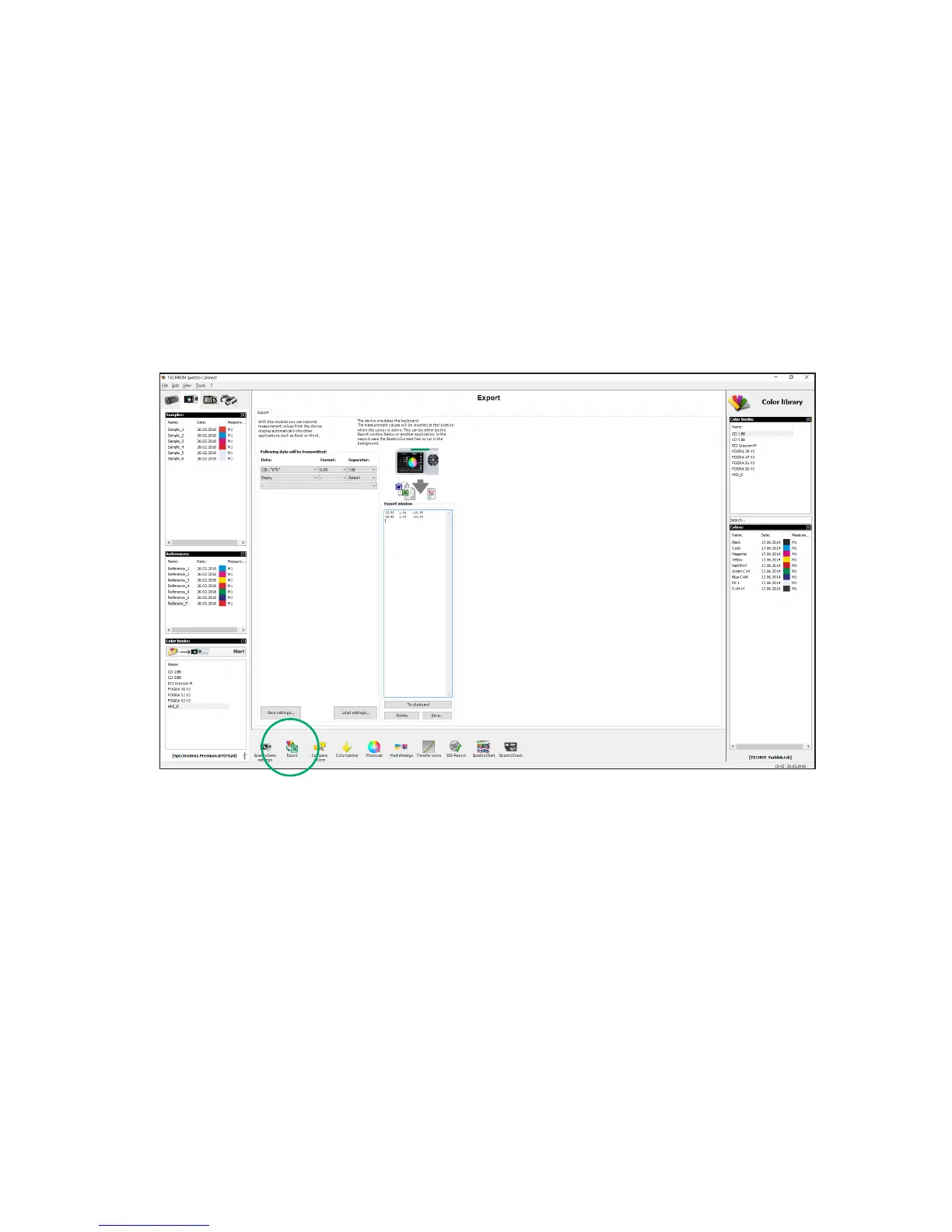

2. The Export window can also be used for
testing data transmissions.
This example shows the transfer of CMYK
density values.
1.
2.
