Technics SC-HDV600 User Manual

13
RQT5941
Before use

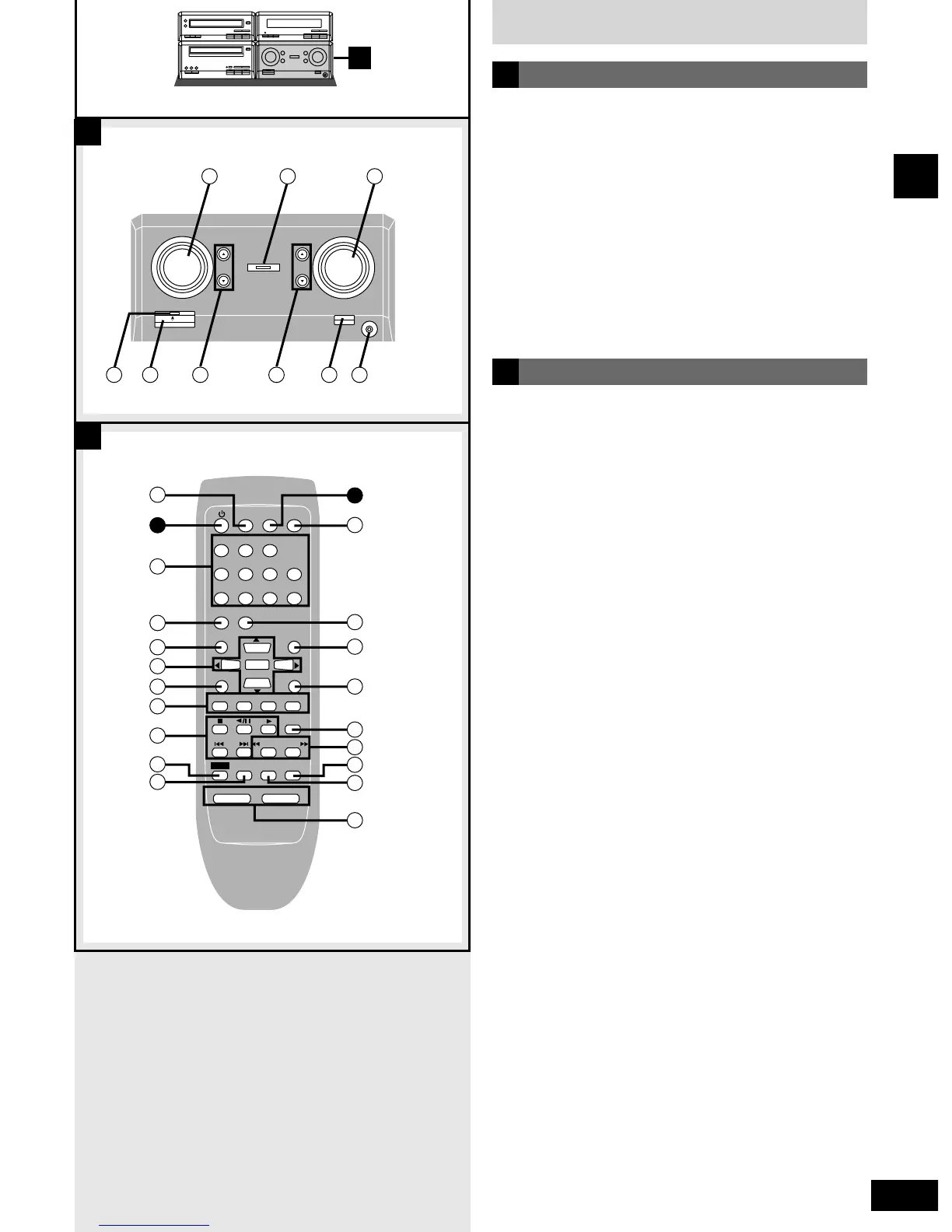

Front panel controls
D
INPUT
SELECTOR
VOLUME
BASS
TREBLE
-VGCA
– CINEMA BASS
PHONES
DOWN UP
/ I
31
32
34 35
36
38 39
33
37
SLEEP
CLOCK/
TIMER
PLAY MODE
A-B REPEAT
REPEAT
AUTO/MONO
DVD/CD
TAPE
EXT
TUNER
MUTING
BALANCE L – VOLUME + BALANCE R
CANCEL
123
456
≥10/-/--
7890
SUB TITLE
AUDIO
ANGLE
MENU
TOP MENU
SETUP
DISPLAY
RETURN
ENTER
SKIP
SLOW/SEARCH
SHIFT
41
35
25
40
42
43
44
45
46
47
48
49
50
52
53
54
55
56
57
58
51
D
E
Amplifier
##11
Input selector (INPUT SELECTOR) .......................................46
##22
VGCA indicator (VGCA) .........................................................36
##33
Volume control (VOLUME).....................................................16
##44
Standby indicator
When the unit is connected to the AC mains supply, this
indicator lights up in standby mode and goes out when the unit
is turned on.
##55
Standby/on switch (8) ..........................................................14
Press to switch the unit from on to standby mode or vice versa.
In standby mode, the unit is still consuming a small amount of
power.
##66
Bass buttons (BASS e, r).....................................................36
##77
Treble buttons (TREBLE e, r)..............................................36
##88
VGCA/Cinema bass button (-VGCA, –CINEMA BASS)........36
##99
Headphone jack (PHONES)....................................................37
D
Remote control
Buttons @5 and #5 function the same as the controls on the
main unit.
$$00
Sleep timer button (SLEEP)...................................................40
$$11
Numbered buttons............................................................17, 18
$$22
Subtitle button (SUBTITLE) ...................................................23
$$33
Top menu button (TOP MENU)..............................................21
$$44
Cursor/Enter buttons (wreqENTER)........................15, 17
$$55
Display/Setup button (DISPLAY, SETUP).......................15, 26
$$66
Input select buttons
(DVD/CD, TAPE, EXT, TUNER).............................16, 29, 32, 46
$$77
Basic operating buttons
Function changes according to the source.
$$88
Shift button (SHIFT)................................................................15
$$99
Muting button (MUTING) ........................................................37
%%00
Cancel button (CANCEL) .......................................................25
%%11
Audio/Angle button (AUDIO, ANGLE).............................22, 23
%%22
Menu button (MENU) ..............................................................21
%%33
Return button (RETURN)........................................................15
%%44
FM mode select button (AUTO/MONO).................................29
%%55
Slow/Search buttons (t SLOW/SEARCH y) ..................19
%%66
Play mode select button (PLAY MODE)................................24
%%77
Repeat/A-B repeat button (REPEAT, A-B REPEAT) ......20, 21
%%88
Volume/Balance buttons
(– VOLUME +, BALANCE L, BALANCE R)......................16, 37
E

Technics SC-HDV600 Specifications

Front Speaker Specifications

impedance (high)	6 Ω
impedance (low)	6 Ω
input power (high, music)	30 W
input power (high, DIN)	15 W
input power (low, music)	60 W
input power (low, DIN)	30 W
output sound pressure level	87 dB/W (1.0 m)
cross over frequency	5 kHz
frequency range (-16 dB)	48 Hz–50 kHz
frequency range (-10 dB)	55 Hz–45 kHz
dimensions (W × H × D)	160 × 334 × 222 mm
mass	3.5 kg

Surround Speaker Specifications

impedance	8 Ω
input power (music)	70 W
input power (DIN)	35 W
output sound pressure level	84 dB/W (1.0 m)
frequency range (-16 dB)	130 Hz–20 kHz
frequency range (-10 dB)	150 Hz–18 kHz
dimensions (W × H × D)	140 × 99 × 118 mm
mass	0.9 kg

Center Speaker Specifications

impedance	8 Ω
input power (music)	160 W
input power (DIN)	80 W
output sound pressure level	86 dB/W (1.0 m)
cross over frequency	4 kHz
frequency range (-16 dB)	100 Hz–22 kHz
frequency range (-10 dB)	115 Hz–20 kHz
dimensions (W × H × D)	190 × 99 × 166 mm
mass	1.8 kg

Tuner Specifications

FM frequency range	87.50–108.00 MHz
FM antenna terminal	75 Ω (unbalanced)
AM frequency range (9 kHz step)	522–1629 kHz
AM frequency range (10 kHz step)	520–1630 kHz
dimensions (W × H × D)	210 × 76.3 × 251 mm
mass	1.1 kg

Amplifier Specifications

low frequency power output (stereo mode, RMS 1 kHz)	2 × 17 W
high frequency power output (stereo mode, RMS 10 kHz)	2 × 8 W
low frequency power output (multichannel mode, RMS 1 kHz)	2 × 10 W
low frequency power output (multichannel mode, DIN 1 kHz)	2 × 8 W
high frequency power output (multichannel mode, DIN 10 kHz)	2 × 6 W
high frequency power output (multichannel mode, RMS 10 kHz)	2 × 8 W
surround, center power output (DIN 1 kHz)	3 × 6 W
surround, center power output (RMS 1 kHz)	3 × 8 W
total harmonic distortion (half power, 1 kHz)	0.07%
load impedance (low frequency)	6 Ω
load impedance (high frequency)	6 Ω
load impedance (surround, center)	8 Ω
S/N	78 dB
headphones load impedance	16–32 Ω
power supply (United Kingdom)	AC 230–240 V, 50 Hz
power supply (others)	AC 230 V, 50 Hz
power consumption	110 W
standby power consumption	0.9 W
dimensions (W × H × D)	210 × 104.8 × 300 mm
mass	3.5 kg

DVD Video Player Specifications

signal system	PAL(PAL 60/NTSC)
output level (composite video)	1 Vp-p
output level (S-Video Y)	1 Vp-p
output level (S-Video C, PAL)	0.3 Vp-p
output level (S-Video C, NTSC)	0.286 Vp-p
pick up wavelength	658/790 nm
dimensions (W × H × D)	210 × 76.3 × 295 mm
mass	1.5 kg

Cassette Deck Specifications

frequency response (TYPE 1)	30 Hz–16 kHz
frequency response (TYPE 2)	30 Hz–16 kHz
frequency response (TYPE 4)	30 Hz–16 kHz
S/N (NR off)	56 dB
S/N (Dolby B NR)	64 dB
wow and flutter	0.1% (WRMS)
dimensions (W × H × D)	210 × 104.8 × 241 mm
mass	1.6 kg
