Technics SC-HDV600 User Manual

12
RQT5941
Before use

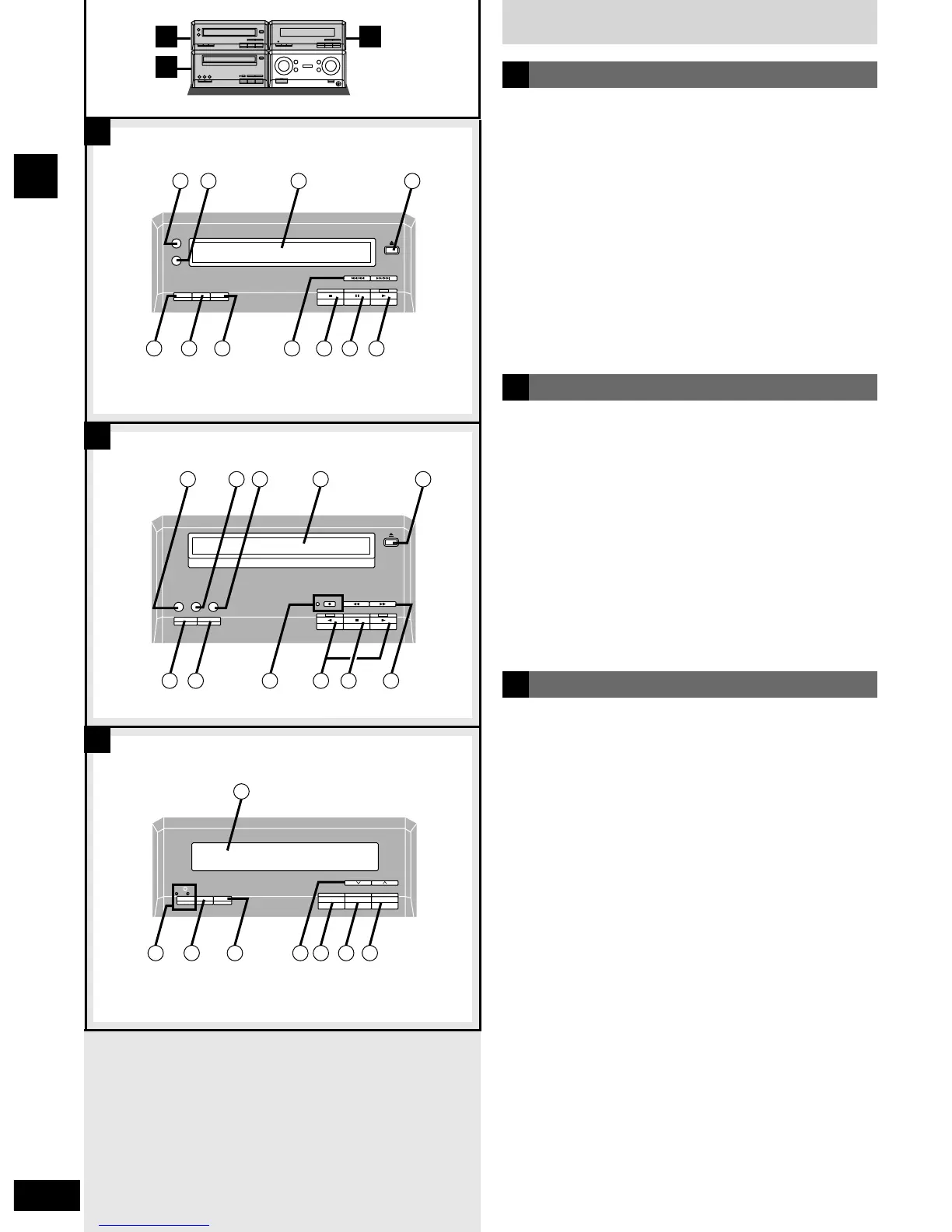

Front panel controls
DVD player
qq
V.S.S. (Virtual Surround Sound) button/indicator
(V.S.S.) .....................................................................................23
ww
Cinema mode button/indicator (CINEMA) ............................23
ee
Disc tray
rr
Disc tray open/close button (; OPEN/CLOSE)....................16
tt
Time mode button (TIME MODE)...........................................19
yy
Repeat button (REPEAT)........................................................20
uu
CD edit button (EDIT) .............................................................35
ii
Skip/search buttons (u/t , y/i) .........................18, 19
oo
Stop button (g) .......................................................................16
!!00
Pause button (h).....................................................................16
!!11
Play button and indicator (q) ................................................16
The color of the indicator depends on the operation taking place.
If stopped: orange
If playing: green
When paused or the resume function is on: flashes
A
Tuner
@@33
Display panel
The display also shows information for the cassette deck, DVD
player, and amplifier.
@@44
Play timer/record timer button and indicator
(z PLAY/z REC) ...............................................................38, 39
@@55
Clock/timer button (CLOCK/TIMER)................................14, 38
@@66
Set button (SET)................................................................14, 38
@@77
Tuning/time adjust buttons
(TUNE/TIME ADJUST 2, 1)........................................14, 29, 38
@@88
Tuning mode button (TUNE MODE)......................................29
@@99
RDS button (RDS)...................................................................29
##00
Band select button (FM/AM) ..................................................29
C
A
C
B
REPEATTIME MODE EDIT
OPEN/CLOSE
V.S.S.
CINEMA
3
4
5 6 7 8
9 10 11
1 2
COUNTER RESET
REC PAUSE
(
TPS
)
DOLBY NR REV MODE TPS SKIP
OPEN/CLOSE
12 13 14 15 16
2120
221917 18
CLOCK/TIMER SET
PLAY/ REC
TUNE/TIME ADJUST
FM/AMRDSTUNE MODE
23
24
25
26 27
28 29 30
A
B
C
Cassette deck
!!22
Dolby noise reduction button (DOLBY NR)..........................31
!!33
Reverse mode select button (REV MODE) ...........................31
!!44
Tape Program Sensor button (TPS SKIP) ............................32
!!55
Cassette holder
!!66
Cassette tray open/close button (; OPEN/CLOSE) ............31
!!77
Counter button (COUNTER)...................................................33
!!88
Counter reset button (RESET)...............................................31
!!99
Record pause button and indicator (* REC PAUSE)..........34
@@00
Playback buttons and indicators (w , q) ..............................31
The color of the indicator depends on the operation taking place.
If stopped, fast forwarding or rewinding: orange
If playing or recording: green
While carrying out TPS or recording is on standby: flashes
@@11
Stop button (g) .......................................................................31
@@22
Fast forward/rewind buttons [t (TPS) y].......................32
B

Technics SC-HDV600 Specifications

Front Speaker Specifications

impedance (high)	6 Ω
impedance (low)	6 Ω
input power (high, music)	30 W
input power (high, DIN)	15 W
input power (low, music)	60 W
input power (low, DIN)	30 W
output sound pressure level	87 dB/W (1.0 m)
cross over frequency	5 kHz
frequency range (-16 dB)	48 Hz–50 kHz
frequency range (-10 dB)	55 Hz–45 kHz
dimensions (W × H × D)	160 × 334 × 222 mm
mass	3.5 kg

Surround Speaker Specifications

impedance	8 Ω
input power (music)	70 W
input power (DIN)	35 W
output sound pressure level	84 dB/W (1.0 m)
frequency range (-16 dB)	130 Hz–20 kHz
frequency range (-10 dB)	150 Hz–18 kHz
dimensions (W × H × D)	140 × 99 × 118 mm
mass	0.9 kg

Center Speaker Specifications

impedance	8 Ω
input power (music)	160 W
input power (DIN)	80 W
output sound pressure level	86 dB/W (1.0 m)
cross over frequency	4 kHz
frequency range (-16 dB)	100 Hz–22 kHz
frequency range (-10 dB)	115 Hz–20 kHz
dimensions (W × H × D)	190 × 99 × 166 mm
mass	1.8 kg

Tuner Specifications

FM frequency range	87.50–108.00 MHz
FM antenna terminal	75 Ω (unbalanced)
AM frequency range (9 kHz step)	522–1629 kHz
AM frequency range (10 kHz step)	520–1630 kHz
dimensions (W × H × D)	210 × 76.3 × 251 mm
mass	1.1 kg

Amplifier Specifications

low frequency power output (stereo mode, RMS 1 kHz)	2 × 17 W
high frequency power output (stereo mode, RMS 10 kHz)	2 × 8 W
low frequency power output (multichannel mode, RMS 1 kHz)	2 × 10 W
low frequency power output (multichannel mode, DIN 1 kHz)	2 × 8 W
high frequency power output (multichannel mode, DIN 10 kHz)	2 × 6 W
high frequency power output (multichannel mode, RMS 10 kHz)	2 × 8 W
surround, center power output (DIN 1 kHz)	3 × 6 W
surround, center power output (RMS 1 kHz)	3 × 8 W
total harmonic distortion (half power, 1 kHz)	0.07%
load impedance (low frequency)	6 Ω
load impedance (high frequency)	6 Ω
load impedance (surround, center)	8 Ω
S/N	78 dB
headphones load impedance	16–32 Ω
power supply (United Kingdom)	AC 230–240 V, 50 Hz
power supply (others)	AC 230 V, 50 Hz
power consumption	110 W
standby power consumption	0.9 W
dimensions (W × H × D)	210 × 104.8 × 300 mm
mass	3.5 kg

DVD Video Player Specifications

signal system	PAL(PAL 60/NTSC)
output level (composite video)	1 Vp-p
output level (S-Video Y)	1 Vp-p
output level (S-Video C, PAL)	0.3 Vp-p
output level (S-Video C, NTSC)	0.286 Vp-p
pick up wavelength	658/790 nm
dimensions (W × H × D)	210 × 76.3 × 295 mm
mass	1.5 kg

Cassette Deck Specifications

frequency response (TYPE 1)	30 Hz–16 kHz
frequency response (TYPE 2)	30 Hz–16 kHz
frequency response (TYPE 4)	30 Hz–16 kHz
S/N (NR off)	56 dB
S/N (Dolby B NR)	64 dB
wow and flutter	0.1% (WRMS)
dimensions (W × H × D)	210 × 104.8 × 241 mm
mass	1.6 kg
