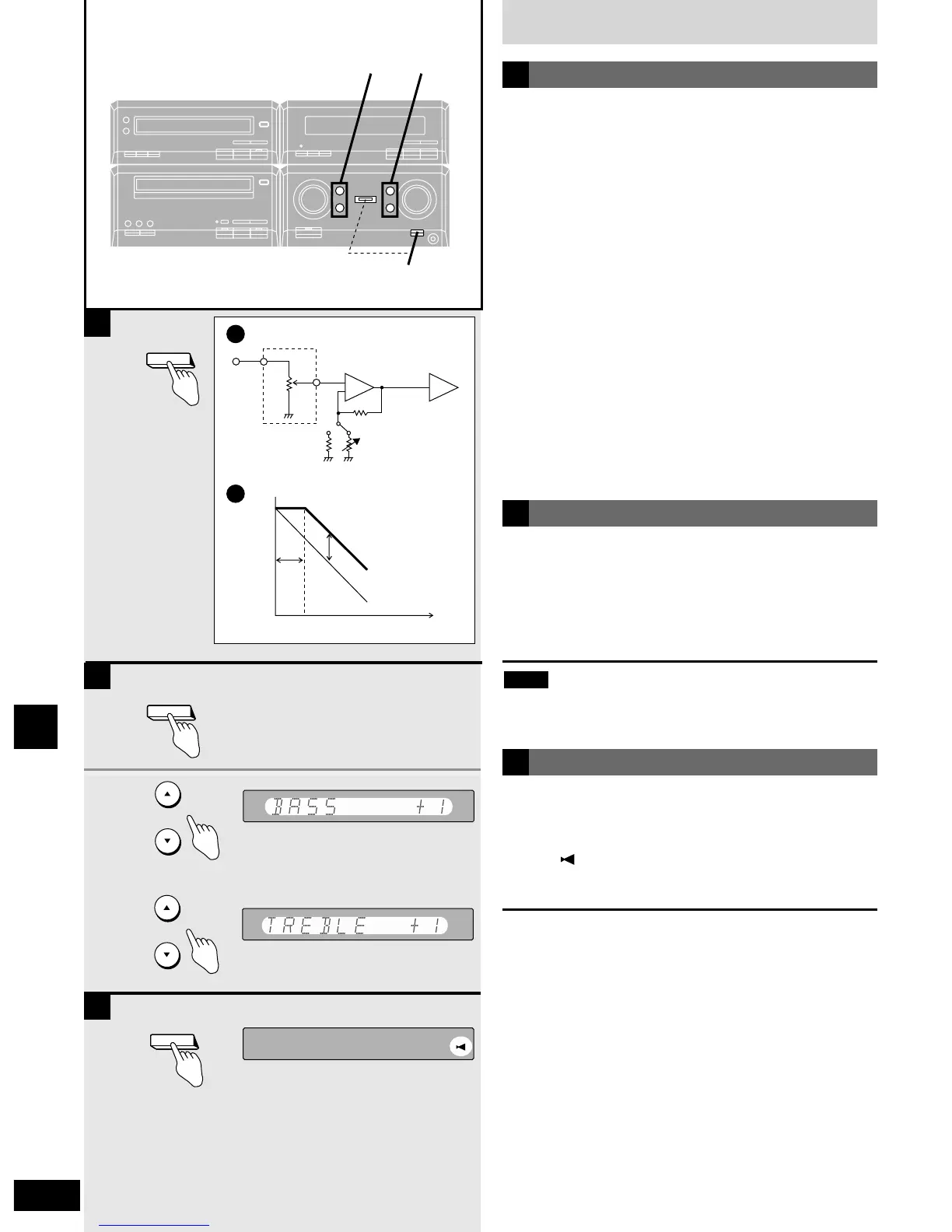

Technics SC-HDV600 User Manual

Changing the sound quality
36
RQT5941
Other operations
BASS TREBLE
-VGCA
–CINEMA BASS
1 Press [-VGCA –CINEMA BASS] to turn
the VGCA off.
2 Press [BASS (e or r)] (bass) or
[TREBLE (e
or r)] (treble).
You cannot adjust the tone while CINEMA BASS or the VGCA
is on.
Note
To adjust the tone quality
B
VGCA: Variable Gain Control Amplifier
You can achieve a clearer sound by using this feature.
Turning the VGCA on and off
Press [-VGCA –CINEMA BASS].
The indicator lights while the VGCA is on.
How this unit’s VGCA works
Generally, the rate of noise (N) to sound (S) worsens as you lower
the volume on an amplifier. With this unit, however, the VGCA
circuit changes the gain between 0 and –10 dB, thereby maintaining
the same S/N ratio. This change in gain is then maintained as you
continue to lower the volume, allowing you to enjoy a better S/N
ratio than if the feature was off.
q Structure of the amplifier
a Input
b Electronic volume control
c Variable gain control amplifier
d Power amplifier
w Changes to the S/N ratio when the volume is lowered
(simplified)
e Gain variation range
f Difference between the S/N ratio when the feature is on and off
g Reduction in volume
The VGCA circuit
A
A
-VGCA
–CINEMA BASS
1
2
S/N
0 dB –10 dB
ON
OFF
a
b
cd
f
g
e
ONOFF
BASS
TREBLE
-VGCA
–CINEMA BASS
B
2
1
-VGCA
–CINEMA BASS
C
Maximizing the bass - CINEMA BASS
C
Optimize the tone for movie viewing.
Press and hold [-VGCA –CINEMA BASS]
until “” appears on the display.
The VGCA turns off if it was on.
To cancel
Press and hold [-VGCA –CINEMA BASS].
The feature is also canceled when you press [-VGCA –CINEMA
BASS] to turn the VGCA on.

Technics SC-HDV600 Specifications

Front Speaker Specifications

impedance (high)	6 Ω
impedance (low)	6 Ω
input power (high, music)	30 W
input power (high, DIN)	15 W
input power (low, music)	60 W
input power (low, DIN)	30 W
output sound pressure level	87 dB/W (1.0 m)
cross over frequency	5 kHz
frequency range (-16 dB)	48 Hz–50 kHz
frequency range (-10 dB)	55 Hz–45 kHz
dimensions (W × H × D)	160 × 334 × 222 mm
mass	3.5 kg

Surround Speaker Specifications

impedance	8 Ω
input power (music)	70 W
input power (DIN)	35 W
output sound pressure level	84 dB/W (1.0 m)
frequency range (-16 dB)	130 Hz–20 kHz
frequency range (-10 dB)	150 Hz–18 kHz
dimensions (W × H × D)	140 × 99 × 118 mm
mass	0.9 kg

Center Speaker Specifications

impedance	8 Ω
input power (music)	160 W
input power (DIN)	80 W
output sound pressure level	86 dB/W (1.0 m)
cross over frequency	4 kHz
frequency range (-16 dB)	100 Hz–22 kHz
frequency range (-10 dB)	115 Hz–20 kHz
dimensions (W × H × D)	190 × 99 × 166 mm
mass	1.8 kg

Tuner Specifications

FM frequency range	87.50–108.00 MHz
FM antenna terminal	75 Ω (unbalanced)
AM frequency range (9 kHz step)	522–1629 kHz
AM frequency range (10 kHz step)	520–1630 kHz
dimensions (W × H × D)	210 × 76.3 × 251 mm
mass	1.1 kg

Amplifier Specifications

low frequency power output (stereo mode, RMS 1 kHz)	2 × 17 W
high frequency power output (stereo mode, RMS 10 kHz)	2 × 8 W
low frequency power output (multichannel mode, RMS 1 kHz)	2 × 10 W
low frequency power output (multichannel mode, DIN 1 kHz)	2 × 8 W
high frequency power output (multichannel mode, DIN 10 kHz)	2 × 6 W
high frequency power output (multichannel mode, RMS 10 kHz)	2 × 8 W
surround, center power output (DIN 1 kHz)	3 × 6 W
surround, center power output (RMS 1 kHz)	3 × 8 W
total harmonic distortion (half power, 1 kHz)	0.07%
load impedance (low frequency)	6 Ω
load impedance (high frequency)	6 Ω
load impedance (surround, center)	8 Ω
S/N	78 dB
headphones load impedance	16–32 Ω
power supply (United Kingdom)	AC 230–240 V, 50 Hz
power supply (others)	AC 230 V, 50 Hz
power consumption	110 W
standby power consumption	0.9 W
dimensions (W × H × D)	210 × 104.8 × 300 mm
mass	3.5 kg

DVD Video Player Specifications

signal system	PAL(PAL 60/NTSC)
output level (composite video)	1 Vp-p
output level (S-Video Y)	1 Vp-p
output level (S-Video C, PAL)	0.3 Vp-p
output level (S-Video C, NTSC)	0.286 Vp-p
pick up wavelength	658/790 nm
dimensions (W × H × D)	210 × 76.3 × 295 mm
mass	1.5 kg

Cassette Deck Specifications

frequency response (TYPE 1)	30 Hz–16 kHz
frequency response (TYPE 2)	30 Hz–16 kHz
frequency response (TYPE 4)	30 Hz–16 kHz
S/N (NR off)	56 dB
S/N (Dolby B NR)	64 dB
wow and flutter	0.1% (WRMS)
dimensions (W × H × D)	210 × 104.8 × 241 mm
mass	1.6 kg
