Technics SC-HDV600 User Manual

7
RQT5941

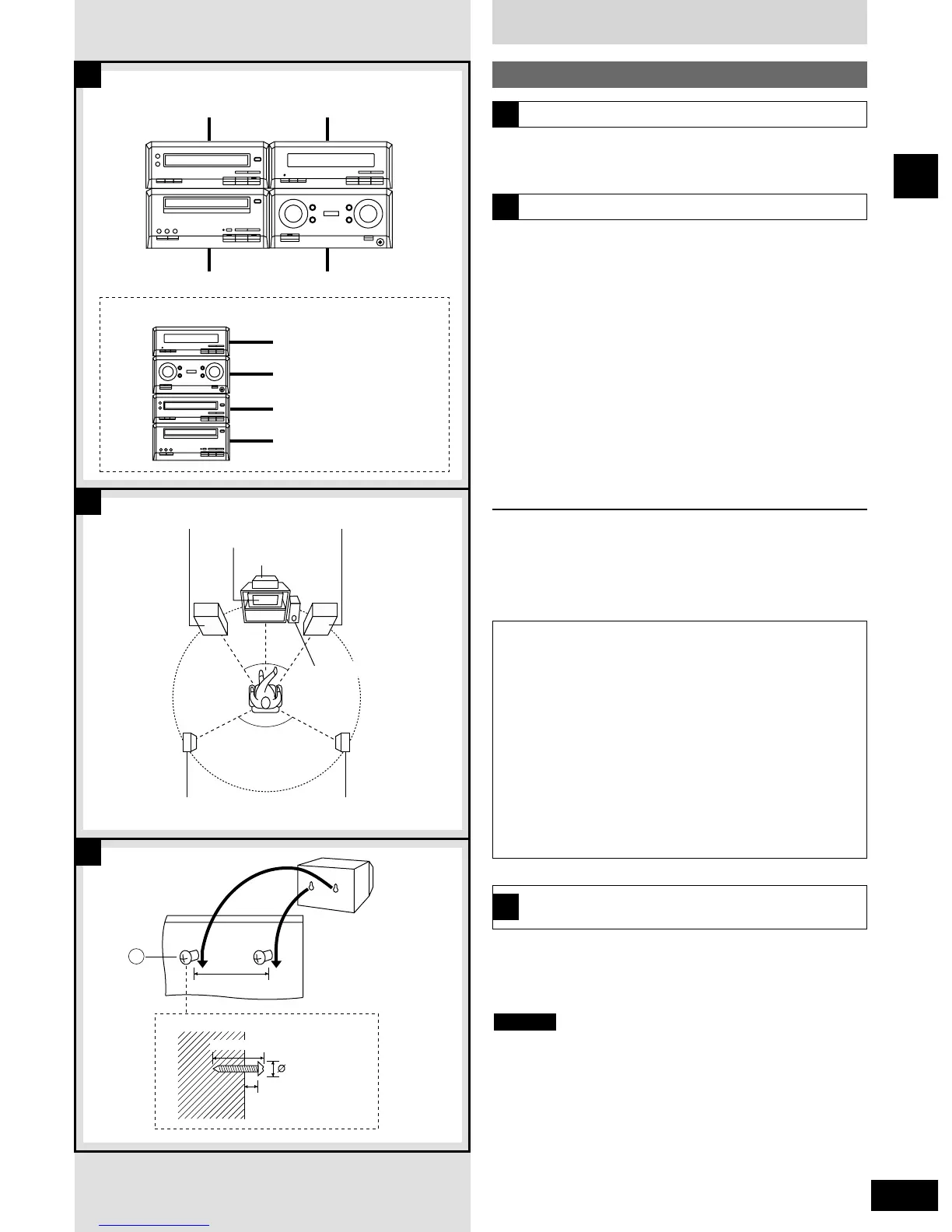

Before use
Installation and connections
A
30˚
30˚
120˚
B
Side-by-side setup
DVD player (SL-HDV600)
Tuner (ST-HDV600)
Cassette deck (RS-HDA800) Amplifier (SE-HDV600)
Stacking
TV (not included)
DVD player (SL-HDV600)
Tuner (ST-HDV600)
Cassette deck (RS-HDA800)
Amplifier (SE-HDV600)
Front speaker (L)
Center speaker
Surround speaker (L)
Subwoofer (not included)
You can set up the components side-by-side or stacked. The
explanations show the side-by-side setup.
The figure shows an example of when you have connected all the
speakers it is possible to connect to this system. Obtain any extra
speakers to suit your needs.
¡Center and surround speakers are necessary to enjoy the
surround sound on DVDs.
¡A subwoofer increases the power of the bass.
For the United Kingdom
Center, surround and subwoofer speakers are not included.
Optional speakers: Center/surround speaker system SB-PT96
If you purchase different speaker system, ensure the speakers have
an impedance of 8 Ω.
Be sure to change the speaker settings to suit the speakers you
connect (\ page 44).
For other areas
The subwoofer is not included.
Positioning your speakers
The optimum is to place all your speakers, except for the
subwoofer, an equal distance from the seating area. The angles in
the figure are approximate.
¡Position the center speaker directly above or below the television.
¡Put the subwoofer somewhere near the television.
Installation
A
Speaker magnetic shielding
The following applies to the included speakers and to the
recommended optional center and surround speaker system
(SB-PT96).
If irregular coloring occurs on your television
These speakers are designed to be used close to a television,
but the picture may be affected with some televisions and set-
up combinations.
If this occur, turn the television off for about 30 minutes.
The television’s demagnetizing function should correct the
problem.
If it persists, move the speakers further away from the
television.
Front speaker (R)
Surround speaker (R)
Audio components
B
Speakers and TV (not included)
70 mm
7–9 mm
7.5–9.5 mm
30–35 mm
a
C
Screw the wood screw (a) (not included) into a thick and hard part
of the wall.
The surface you attach the speakers to must be able to support
over 10 kg.
Do not attempt to attach these speakers to walls methods other
than those described in this manual.
Caution
Attaching the surround speakers to the wall
(Except for United Kingdom)
C

Technics SC-HDV600 Specifications

Front Speaker Specifications

impedance (high)	6 Ω
impedance (low)	6 Ω
input power (high, music)	30 W
input power (high, DIN)	15 W
input power (low, music)	60 W
input power (low, DIN)	30 W
output sound pressure level	87 dB/W (1.0 m)
cross over frequency	5 kHz
frequency range (-16 dB)	48 Hz–50 kHz
frequency range (-10 dB)	55 Hz–45 kHz
dimensions (W × H × D)	160 × 334 × 222 mm
mass	3.5 kg

Surround Speaker Specifications

impedance	8 Ω
input power (music)	70 W
input power (DIN)	35 W
output sound pressure level	84 dB/W (1.0 m)
frequency range (-16 dB)	130 Hz–20 kHz
frequency range (-10 dB)	150 Hz–18 kHz
dimensions (W × H × D)	140 × 99 × 118 mm
mass	0.9 kg

Center Speaker Specifications

impedance	8 Ω
input power (music)	160 W
input power (DIN)	80 W
output sound pressure level	86 dB/W (1.0 m)
cross over frequency	4 kHz
frequency range (-16 dB)	100 Hz–22 kHz
frequency range (-10 dB)	115 Hz–20 kHz
dimensions (W × H × D)	190 × 99 × 166 mm
mass	1.8 kg

Tuner Specifications

FM frequency range	87.50–108.00 MHz
FM antenna terminal	75 Ω (unbalanced)
AM frequency range (9 kHz step)	522–1629 kHz
AM frequency range (10 kHz step)	520–1630 kHz
dimensions (W × H × D)	210 × 76.3 × 251 mm
mass	1.1 kg

Amplifier Specifications

low frequency power output (stereo mode, RMS 1 kHz)	2 × 17 W
high frequency power output (stereo mode, RMS 10 kHz)	2 × 8 W
low frequency power output (multichannel mode, RMS 1 kHz)	2 × 10 W
low frequency power output (multichannel mode, DIN 1 kHz)	2 × 8 W
high frequency power output (multichannel mode, DIN 10 kHz)	2 × 6 W
high frequency power output (multichannel mode, RMS 10 kHz)	2 × 8 W
surround, center power output (DIN 1 kHz)	3 × 6 W
surround, center power output (RMS 1 kHz)	3 × 8 W
total harmonic distortion (half power, 1 kHz)	0.07%
load impedance (low frequency)	6 Ω
load impedance (high frequency)	6 Ω
load impedance (surround, center)	8 Ω
S/N	78 dB
headphones load impedance	16–32 Ω
power supply (United Kingdom)	AC 230–240 V, 50 Hz
power supply (others)	AC 230 V, 50 Hz
power consumption	110 W
standby power consumption	0.9 W
dimensions (W × H × D)	210 × 104.8 × 300 mm
mass	3.5 kg

DVD Video Player Specifications

signal system	PAL(PAL 60/NTSC)
output level (composite video)	1 Vp-p
output level (S-Video Y)	1 Vp-p
output level (S-Video C, PAL)	0.3 Vp-p
output level (S-Video C, NTSC)	0.286 Vp-p
pick up wavelength	658/790 nm
dimensions (W × H × D)	210 × 76.3 × 295 mm
mass	1.5 kg

Cassette Deck Specifications

frequency response (TYPE 1)	30 Hz–16 kHz
frequency response (TYPE 2)	30 Hz–16 kHz
frequency response (TYPE 4)	30 Hz–16 kHz
S/N (NR off)	56 dB
S/N (Dolby B NR)	64 dB
wow and flutter	0.1% (WRMS)
dimensions (W × H × D)	210 × 104.8 × 241 mm
mass	1.6 kg
