Cinema mode
N: Normal mode
C: Cinema mode (a page 23)
OFF
OFF
(Dolby Digital, 2-channel or over only)
Virtual Surround Sound (V.S.S.)
(a page 23)
1 — 2 — OFF
(This function is effective with Dolby Digital,
3 channels or over, where the dialogue is
recorded in the center channel)
Dialogue Enhancer
ON — OFF
Marker
You can mark up to 5 positions to play again.
[ENTER]
(The unit is now ready to accept markers.)
To mark a position
[ENTER] (at the desired point)
To mark another position
[w
, q] / [ENTER]
To recall a marker
[w, q] / [ENTER]
To erase a marker
[w
, q] / [CANCEL]
Repeat play (a page 20)
C (Chapter) — T (Title) — OFF
T (Track) — A (All) — OFF
Play mode display
---: Off
PGM: Program play
RND: Random play
Cannot be changed here.

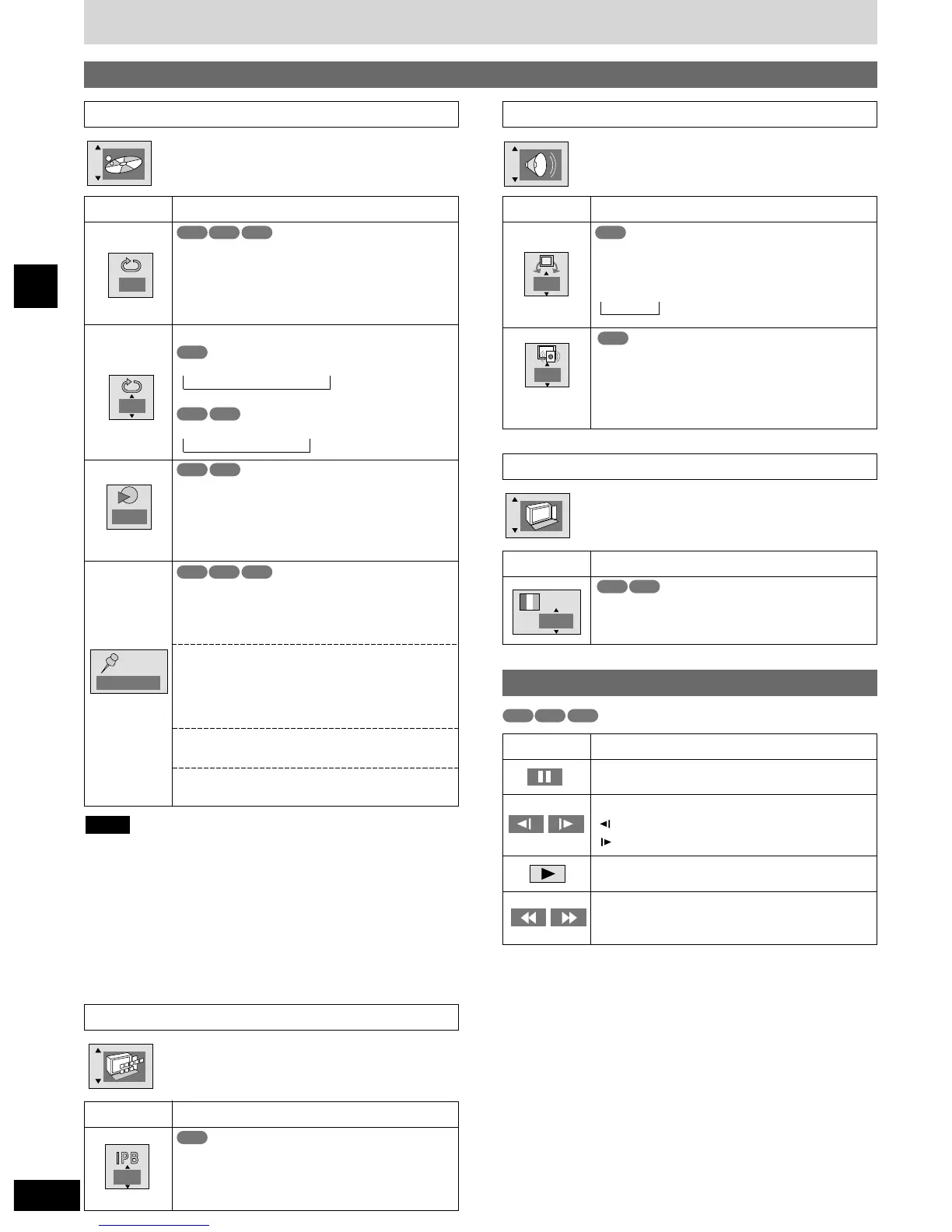

Graphic User Interface - GUI
28
RQT5941
Disc operations
Icons for unit information
Play menu
∗ ∗
Icon Content
OFF
A-B repeat (a page 21)
[ENTER] (start point) / [ENTER] (finish point)
To cancel
[ENTER]
DVD
VCD
CD
∗ ∗ ∗ ∗ ∗
VCD
CD
DVD
VCD
CD
– – –
VCD
CD
DVD
¡A-B repeat play (DVD), repeat play and marker function do not
work if the disc’s elapsed play time is not shown on the unit’s FL
display.
¡Markers can not be used with some DVDs or when “PBC”
(
a
page 18) is on.
¡Some subtitles or pictures may fail to appear around the marker
(DVD).
¡Markers are cleared when you turn off the unit or open the disc
tray.
¡Markers are cleared when you change the input mode.
Note
Display menu
OFF
Icon Content
IPB display (a page 49)
Display the picture type (I/P/B) in the still picture
mode.
ON — OFF
DVD
Audio menu
Icon Content
DVD
VCD
DVD
N
Video menu
Icon Content
DVD
Shuttle screen
Pause
Icon Content
VCD
CD
DVD
Slow-motion play
: Backward (DVD only)
: Forward (DVD, Video CD only)
Play
Search
t: Backward
y: Forward
¡There are five speeds for both backward and forward slow-
motion and search.
¡The numbers on either side of the shuttle screen indicate the
maximum speeds of the search.

Technics SC-HDV600 Specifications

Front Speaker Specifications

impedance (high)	6 Ω
impedance (low)	6 Ω
input power (high, music)	30 W
input power (high, DIN)	15 W
input power (low, music)	60 W
input power (low, DIN)	30 W
output sound pressure level	87 dB/W (1.0 m)
cross over frequency	5 kHz
frequency range (-16 dB)	48 Hz–50 kHz
frequency range (-10 dB)	55 Hz–45 kHz
dimensions (W × H × D)	160 × 334 × 222 mm
mass	3.5 kg

Surround Speaker Specifications

impedance	8 Ω
input power (music)	70 W
input power (DIN)	35 W
output sound pressure level	84 dB/W (1.0 m)
frequency range (-16 dB)	130 Hz–20 kHz
frequency range (-10 dB)	150 Hz–18 kHz
dimensions (W × H × D)	140 × 99 × 118 mm
mass	0.9 kg

Center Speaker Specifications

impedance	8 Ω
input power (music)	160 W
input power (DIN)	80 W
output sound pressure level	86 dB/W (1.0 m)
cross over frequency	4 kHz
frequency range (-16 dB)	100 Hz–22 kHz
frequency range (-10 dB)	115 Hz–20 kHz
dimensions (W × H × D)	190 × 99 × 166 mm
mass	1.8 kg

Tuner Specifications

FM frequency range	87.50–108.00 MHz
FM antenna terminal	75 Ω (unbalanced)
AM frequency range (9 kHz step)	522–1629 kHz
AM frequency range (10 kHz step)	520–1630 kHz
dimensions (W × H × D)	210 × 76.3 × 251 mm
mass	1.1 kg

Amplifier Specifications

low frequency power output (stereo mode, RMS 1 kHz)	2 × 17 W
high frequency power output (stereo mode, RMS 10 kHz)	2 × 8 W
low frequency power output (multichannel mode, RMS 1 kHz)	2 × 10 W
low frequency power output (multichannel mode, DIN 1 kHz)	2 × 8 W
high frequency power output (multichannel mode, DIN 10 kHz)	2 × 6 W
high frequency power output (multichannel mode, RMS 10 kHz)	2 × 8 W
surround, center power output (DIN 1 kHz)	3 × 6 W
surround, center power output (RMS 1 kHz)	3 × 8 W
total harmonic distortion (half power, 1 kHz)	0.07%
load impedance (low frequency)	6 Ω
load impedance (high frequency)	6 Ω
load impedance (surround, center)	8 Ω
S/N	78 dB
headphones load impedance	16–32 Ω
power supply (United Kingdom)	AC 230–240 V, 50 Hz
power supply (others)	AC 230 V, 50 Hz
power consumption	110 W
standby power consumption	0.9 W
dimensions (W × H × D)	210 × 104.8 × 300 mm
mass	3.5 kg

DVD Video Player Specifications

signal system	PAL(PAL 60/NTSC)
output level (composite video)	1 Vp-p
output level (S-Video Y)	1 Vp-p
output level (S-Video C, PAL)	0.3 Vp-p
output level (S-Video C, NTSC)	0.286 Vp-p
pick up wavelength	658/790 nm
dimensions (W × H × D)	210 × 76.3 × 295 mm
mass	1.5 kg

Cassette Deck Specifications

frequency response (TYPE 1)	30 Hz–16 kHz
frequency response (TYPE 2)	30 Hz–16 kHz
frequency response (TYPE 4)	30 Hz–16 kHz
S/N (NR off)	56 dB
S/N (Dolby B NR)	64 dB
wow and flutter	0.1% (WRMS)
dimensions (W × H × D)	210 × 104.8 × 241 mm
mass	1.6 kg
