Technics SC-HDV600 User Manual

System
Amplifier
Tuner
DVD player
Cassette deck
Front speakers
SC-HDV600
SE-HDV600
ST-HDV600
SL-HDV600
RS-HDA800
SB-HDV600
Surround speakers
Center speaker
SB-PS96
SB-PC96
2
RQT5941

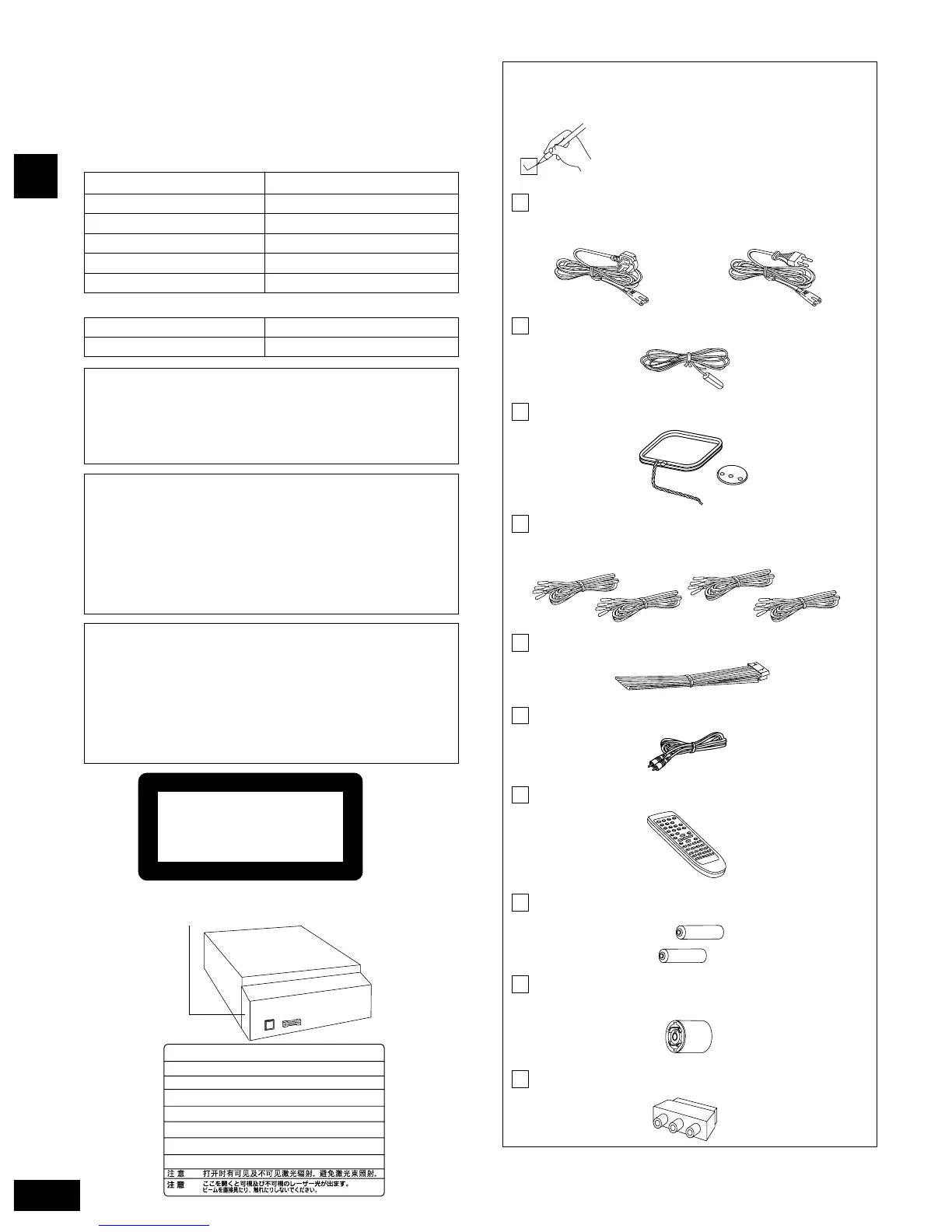

Before use
Please check and identify the supplied
accessories.
AC mains lead ............................................................1 pc.
Remote control (EUR7702080)..................................1 pc.
Remote control batteries.........................................2 pcs.
FM indoor antenna (RSA0007)..................................1 pc.
AM loop antenna set (RSA0035)...............................1 pc.
Speaker cords
¡Red and black (REE1057)......................................2 pcs.
¡Blue and gray (REE0853).......................................2 pcs.
Use numbers indicated in parentheses when asking for replacement
parts.
Antenna plug adapter (SJP9009)..............................1 pc.
(United Kingdom only)
Dear Customer
Thank you for purchasing this product.
For optimum performance and safety, please read these
instructions carefully.
These operating instructions are applicable to the following system.
CAUTION!
THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULT IN HAZARDOUS
RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF.
REFER SERVICING TO QUALIFIED PERSONNEL.
CAUTION!
DO NOT INSTALL, OR PLACE THIS UNIT, IN A BOOKCASE,
BUILT-IN CABINET OR IN ANOTHER CONFINED SPACE.
ENSURE THE UNIT IS WELL VENTILATED. TO PREVENT
RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO
OVERHEATING, ENSURE THAT CURTAINS AND ANY
OTHER MATERIALS DO NOT OBSTRUCT THE
VENTILATION VENTS.
CLASS 1
LASER PRODUCT
(Side of product)
(DVD player)
Supplied accessories
For United Kingdom
(RJA0053-2X)
For others
(RJA0019-1X)
(Inside of product)
RQLS0233
-
-
-
-
-
-
-
-
-
VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN.
AVOID DIRECT EXPOSURE TO BEAM.
DANGER
(FDA 21 CFR)
(IEC60825-1)
VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN.
AVOID EXPOSURE TO BEAM.
CAUTION
RAYONNEMENT LASER VISIBLE ET INVISIBLE EN CAS D’OUVERTURE.
EXPOSITION DANGEREUSE AU FAISCEAU.
ATTENTION
SYNLIG OG USYNLIG LASERSTRÅLING VED ÅBNING.
UNDGÅ UDSÆTTELSE FOR STRÅLING.
ADVARSEL
AVATTAESSA OLET ALTTIINA NÄKYVÄÄ JA NÄKYMÄTÖN
LASERSÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN.
VARO!
SYNLIG OCH OSYNLIG LASERSTRÅLNING NÄR DENNA DEL
ÄR ÖPPNAD. BETRAKTA EJ STRÅLEN.
VARNING
SYNLIG OG USYNLIG LASERSTRÅLING NÅR DEKSEL ÅPNES.
UNNGÅ EKSPONERING FOR STRÅLEN.
ADVARSEL
SICHTBARE UND UNSICHTBARE LASERSTRAHLUNG, WENN ABDECKUNG
GEÖFFNET. NICHT DEM STRAHL AUSSETZEN.
VORSICHT
-
WARNING:
TO REDUCE THE RISK OF FIRE,
ELECTRIC SHOCK OR PRODUCT DAMAGE, DO NOT
EXPOSE THIS APPLIANCE TO RAIN, SPLASHING,
DRIPPING OR MOISTURE.
Surround cable (REX0941)........................................1 pc.
Video connection cable (RJL1P019B15)..................1 pc.
(Except for United Kingdom)
SKART plug adapter (VFA0151-2) ............................1 pc.
LUOKAN 1 LASERLAITE
KLASS 1 LASER APPARAT

Technics SC-HDV600 Specifications

Front Speaker Specifications

impedance (high)	6 Ω
impedance (low)	6 Ω
input power (high, music)	30 W
input power (high, DIN)	15 W
input power (low, music)	60 W
input power (low, DIN)	30 W
output sound pressure level	87 dB/W (1.0 m)
cross over frequency	5 kHz
frequency range (-16 dB)	48 Hz–50 kHz
frequency range (-10 dB)	55 Hz–45 kHz
dimensions (W × H × D)	160 × 334 × 222 mm
mass	3.5 kg

Surround Speaker Specifications

impedance	8 Ω
input power (music)	70 W
input power (DIN)	35 W
output sound pressure level	84 dB/W (1.0 m)
frequency range (-16 dB)	130 Hz–20 kHz
frequency range (-10 dB)	150 Hz–18 kHz
dimensions (W × H × D)	140 × 99 × 118 mm
mass	0.9 kg

Center Speaker Specifications

impedance	8 Ω
input power (music)	160 W
input power (DIN)	80 W
output sound pressure level	86 dB/W (1.0 m)
cross over frequency	4 kHz
frequency range (-16 dB)	100 Hz–22 kHz
frequency range (-10 dB)	115 Hz–20 kHz
dimensions (W × H × D)	190 × 99 × 166 mm
mass	1.8 kg

Tuner Specifications

FM frequency range	87.50–108.00 MHz
FM antenna terminal	75 Ω (unbalanced)
AM frequency range (9 kHz step)	522–1629 kHz
AM frequency range (10 kHz step)	520–1630 kHz
dimensions (W × H × D)	210 × 76.3 × 251 mm
mass	1.1 kg

Amplifier Specifications

low frequency power output (stereo mode, RMS 1 kHz)	2 × 17 W
high frequency power output (stereo mode, RMS 10 kHz)	2 × 8 W
low frequency power output (multichannel mode, RMS 1 kHz)	2 × 10 W
low frequency power output (multichannel mode, DIN 1 kHz)	2 × 8 W
high frequency power output (multichannel mode, DIN 10 kHz)	2 × 6 W
high frequency power output (multichannel mode, RMS 10 kHz)	2 × 8 W
surround, center power output (DIN 1 kHz)	3 × 6 W
surround, center power output (RMS 1 kHz)	3 × 8 W
total harmonic distortion (half power, 1 kHz)	0.07%
load impedance (low frequency)	6 Ω
load impedance (high frequency)	6 Ω
load impedance (surround, center)	8 Ω
S/N	78 dB
headphones load impedance	16–32 Ω
power supply (United Kingdom)	AC 230–240 V, 50 Hz
power supply (others)	AC 230 V, 50 Hz
power consumption	110 W
standby power consumption	0.9 W
dimensions (W × H × D)	210 × 104.8 × 300 mm
mass	3.5 kg

DVD Video Player Specifications

signal system	PAL(PAL 60/NTSC)
output level (composite video)	1 Vp-p
output level (S-Video Y)	1 Vp-p
output level (S-Video C, PAL)	0.3 Vp-p
output level (S-Video C, NTSC)	0.286 Vp-p
pick up wavelength	658/790 nm
dimensions (W × H × D)	210 × 76.3 × 295 mm
mass	1.5 kg

Cassette Deck Specifications

frequency response (TYPE 1)	30 Hz–16 kHz
frequency response (TYPE 2)	30 Hz–16 kHz
frequency response (TYPE 4)	30 Hz–16 kHz
S/N (NR off)	56 dB
S/N (Dolby B NR)	64 dB
wow and flutter	0.1% (WRMS)
dimensions (W × H × D)	210 × 104.8 × 241 mm
mass	1.6 kg
