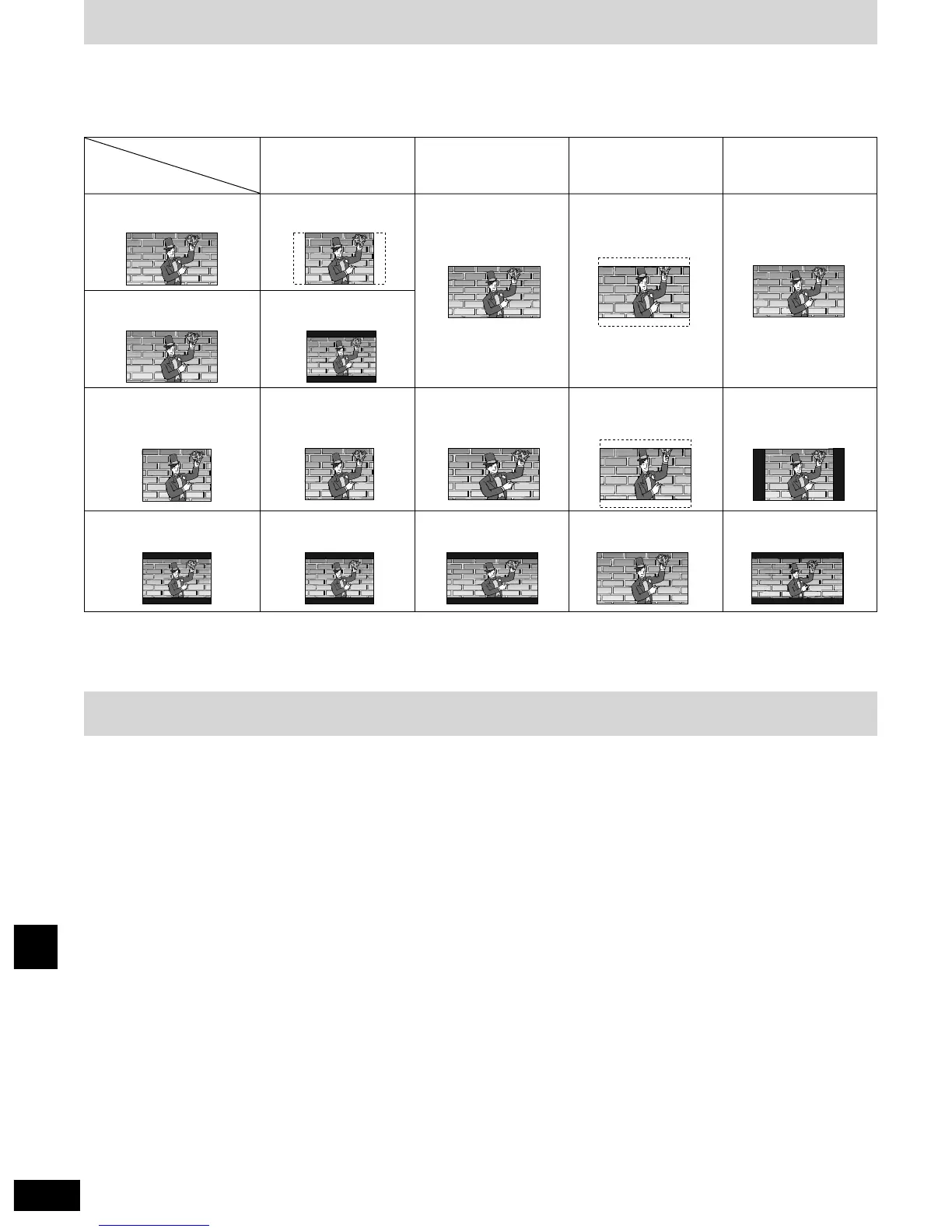

How different kinds of software appear on your television
DVD software is recorded in a variety of picture formats, and how they appear on your TV depends on the software, the kind of TV you have,
and the picture mode your TV is set to.
¡ Letterbox refers to pictures where black bands appear at the top and bottom.
¡ Pan and scan refers to pictures where part of the picture is cut off so it fills the whole screen.
Television and
picture mode
Software format
Wide screen, pan and scan Edges cut off
Wide screen, non-pan and
scan
Letterbox
Regular (4:3) Full screen
Screen stretched
horizontally
Top and bottom cut off
Full screen with black
bands on the left and
right
Full screen Top and bottom cut off Full screen
Regular (4:3) letterbox Letterbox
Letterbox with screen
stretched horizontally
Full screen
Letterbox with extremities
of picture stretched
4:3
16:9
full mode
16:9
zoom mode
16:9
auto mode
Language code list
6565: Afar
6566: Abkhazian
6570: Afrikaans
6577: Ameharic
6582: Arabic
6583: Assamese
6588: Aymara
6590: Azerbaijani
6665: Bashkir
6669: Byelorussian
6671: Bulgarian
6672: Bihari
6678: Bengali; Bangla
6679: Tibetan
6682: Breton
6765: Catalan
6779: Corsican
6783: Czech
6789: Welsh
6865: Danish
6869: German
6890: Bhutani
6976: Greek
6978: English
6979: Esperanto
6983: Spanish
6984: Estonian
6985: Basque
7065: Persian
7073: Finnish
7074: Fiji
7079: Faroese
7082: French
7089: Frisian
7165: Irish
7168: Scots Gaelic
7176: Galician
7178: Guarani
7185: Gujarati
7265: Hausa
7273: Hindi
7282: Croatian
7285: Hungarian
7289: Armenian
7365: Interlingua
7378: Indonesian
7383: Icelandic
7384: Italian
7387: Hebrew
7465: Japanese
7473: Yiddish
7487: Javanese
7565: Georgian
7575: Kazakh
7576: Greenlandic
7577: Cambodian
7578: Kannada
7579: Korean
7583: Kashmiri
7585: Kurdish
7589: Kirghiz
7665: Latin
7678: Lingala
7679: Laotian
7684: Lithuanian
7686: Latvian, Lettish
7771: Malagasy
7773: Maori
7775: Macedonian
7776: Malayalam
7778: Mongolian
7779: Moldavian
7782: Marathi
7783: Malay
7784: Maltese
7789: Burmese
7865: Nauru
7869: Nepali
7876: Dutch
7879: Norwegian
7982: Oriya
8065: Punjabi
8076: Polish
8083: Pashto, Pushto
8084: Portuguese
8185: Quechua
8277: Rhaeto- Romance
8279: Romanian
8285: Russian
8365: Sanskrit
8368: Sindhi
8372: Serbo- Croatian
8373: Singhalese
8375: Slovak
8376: Slovenian
8377: Samoan
8378: Shona
8379: Somali
8381: Albanian
8382: Serbian
8385: Sundanese
8386: Swedish
8387: Swahili
8465: Tamil
8469: Telugu
8471: Tajik
8472: Thai
8473: Tigrinya
8475: Turkmen
8476: Tagalog
8479: Tonga
8482: Turkish
8484: Tatar
8487: Twi
8575: Ukrainian
8582: Urdu
8590: Uzbek
8673: Vietnamese
8679: Volapük
8779: Wolof
8872: Xhosa
8979: Yoruba
9072: Chinese
9085: Zulu
The names given to the television picture modes depend on the maker of your television. There may also be slight differences in how the
pictures appear on the screen. Refer to your television’s operating instructions for details.

Technics SC-HDV600 Specifications

Front Speaker Specifications

impedance (high)	6 Ω
impedance (low)	6 Ω
input power (high, music)	30 W
input power (high, DIN)	15 W
input power (low, music)	60 W
input power (low, DIN)	30 W
output sound pressure level	87 dB/W (1.0 m)
cross over frequency	5 kHz
frequency range (-16 dB)	48 Hz–50 kHz
frequency range (-10 dB)	55 Hz–45 kHz
dimensions (W × H × D)	160 × 334 × 222 mm
mass	3.5 kg

Surround Speaker Specifications

impedance	8 Ω
input power (music)	70 W
input power (DIN)	35 W
output sound pressure level	84 dB/W (1.0 m)
frequency range (-16 dB)	130 Hz–20 kHz
frequency range (-10 dB)	150 Hz–18 kHz
dimensions (W × H × D)	140 × 99 × 118 mm
mass	0.9 kg

Center Speaker Specifications

impedance	8 Ω
input power (music)	160 W
input power (DIN)	80 W
output sound pressure level	86 dB/W (1.0 m)
cross over frequency	4 kHz
frequency range (-16 dB)	100 Hz–22 kHz
frequency range (-10 dB)	115 Hz–20 kHz
dimensions (W × H × D)	190 × 99 × 166 mm
mass	1.8 kg

Tuner Specifications

FM frequency range	87.50–108.00 MHz
FM antenna terminal	75 Ω (unbalanced)
AM frequency range (9 kHz step)	522–1629 kHz
AM frequency range (10 kHz step)	520–1630 kHz
dimensions (W × H × D)	210 × 76.3 × 251 mm
mass	1.1 kg

Amplifier Specifications

low frequency power output (stereo mode, RMS 1 kHz)	2 × 17 W
high frequency power output (stereo mode, RMS 10 kHz)	2 × 8 W
low frequency power output (multichannel mode, RMS 1 kHz)	2 × 10 W
low frequency power output (multichannel mode, DIN 1 kHz)	2 × 8 W
high frequency power output (multichannel mode, DIN 10 kHz)	2 × 6 W
high frequency power output (multichannel mode, RMS 10 kHz)	2 × 8 W
surround, center power output (DIN 1 kHz)	3 × 6 W
surround, center power output (RMS 1 kHz)	3 × 8 W
total harmonic distortion (half power, 1 kHz)	0.07%
load impedance (low frequency)	6 Ω
load impedance (high frequency)	6 Ω
load impedance (surround, center)	8 Ω
S/N	78 dB
headphones load impedance	16–32 Ω
power supply (United Kingdom)	AC 230–240 V, 50 Hz
power supply (others)	AC 230 V, 50 Hz
power consumption	110 W
standby power consumption	0.9 W
dimensions (W × H × D)	210 × 104.8 × 300 mm
mass	3.5 kg

DVD Video Player Specifications

signal system	PAL(PAL 60/NTSC)
output level (composite video)	1 Vp-p
output level (S-Video Y)	1 Vp-p
output level (S-Video C, PAL)	0.3 Vp-p
output level (S-Video C, NTSC)	0.286 Vp-p
pick up wavelength	658/790 nm
dimensions (W × H × D)	210 × 76.3 × 295 mm
mass	1.5 kg

Cassette Deck Specifications

frequency response (TYPE 1)	30 Hz–16 kHz
frequency response (TYPE 2)	30 Hz–16 kHz
frequency response (TYPE 4)	30 Hz–16 kHz
S/N (NR off)	56 dB
S/N (Dolby B NR)	64 dB
wow and flutter	0.1% (WRMS)
dimensions (W × H × D)	210 × 104.8 × 241 mm
mass	1.6 kg
