TechnipFMC Smith Meter AccuLoad IV

AccuLoad IV Installation & Maintenance Manual
Installation 40

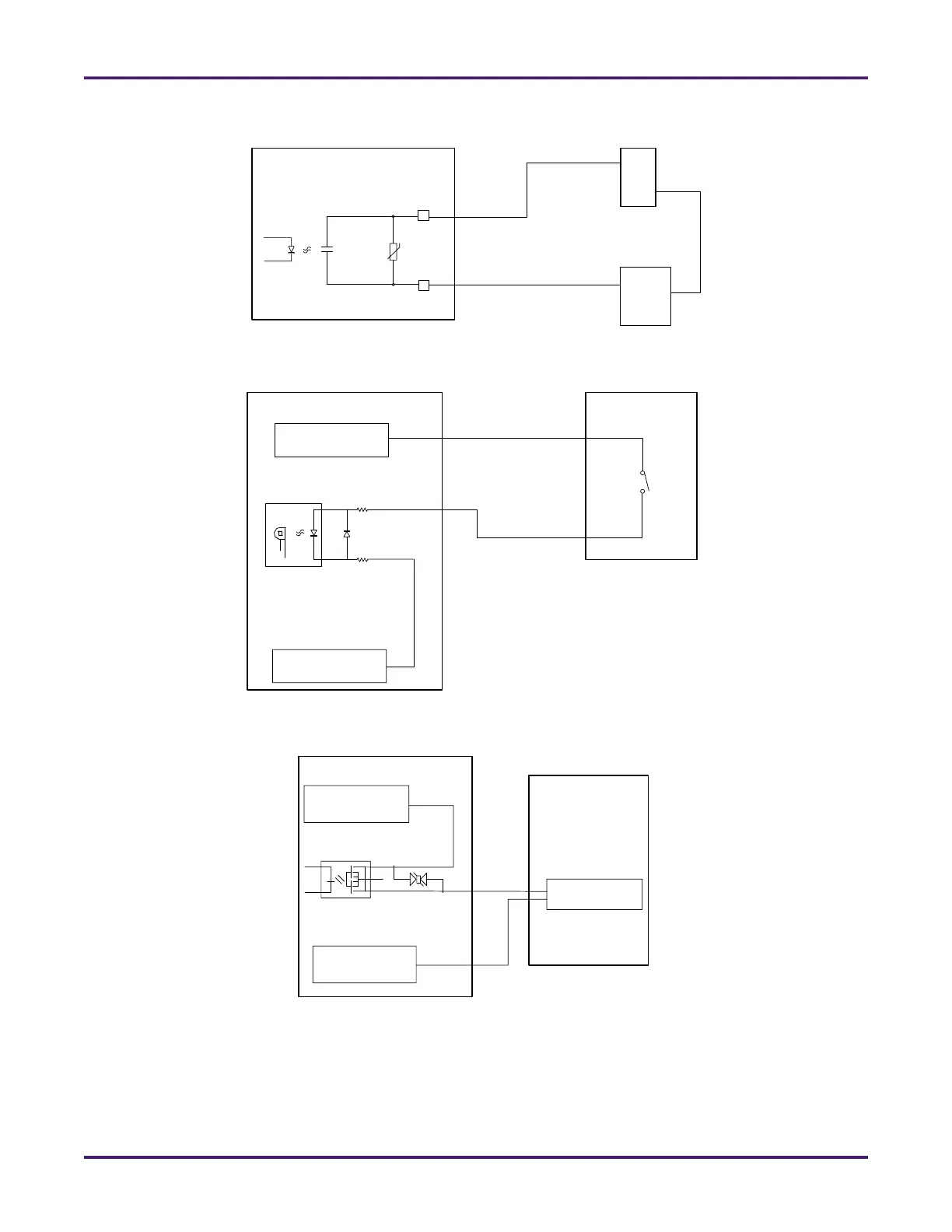

Figure 29: AC Digital Output
AccuLoad
AC Power Supply
L
Receiving Device
Alarm,
Valve,
etc.
N
Figure 30: DC Digital Input
IN X+
IN X-
AccuLoad
External DC Wiring
+24 VDC from A4M
TBE4 10, 11, or 12
3K
3K
DC Ground from A4M
TBE4 13, 14, or 15
Figure 31: DC Digital Output
AccuLoad
External DC Wiring
+24 VDC from A4M
TBE4 – 10, 11 or 12
DC Output +
DC Output -
DC Ground from A4M
TBE4 – 13, 14 or 15
External DC Actuated
Device (i.e. Valve)
